Pump
Pump Repacking
WARNING
To
reduce the risk of serious injury
, always follow
the
Pressure Relief Procedure W
arning
on page
16 before repairing the sprayer
.
1.
Flush the pump, if possible. Relieve pressure,
stopping the pump with the piston rod in its lowest
position, if possible. T
o lower the piston rod, jog
the pressure control on and of
f.

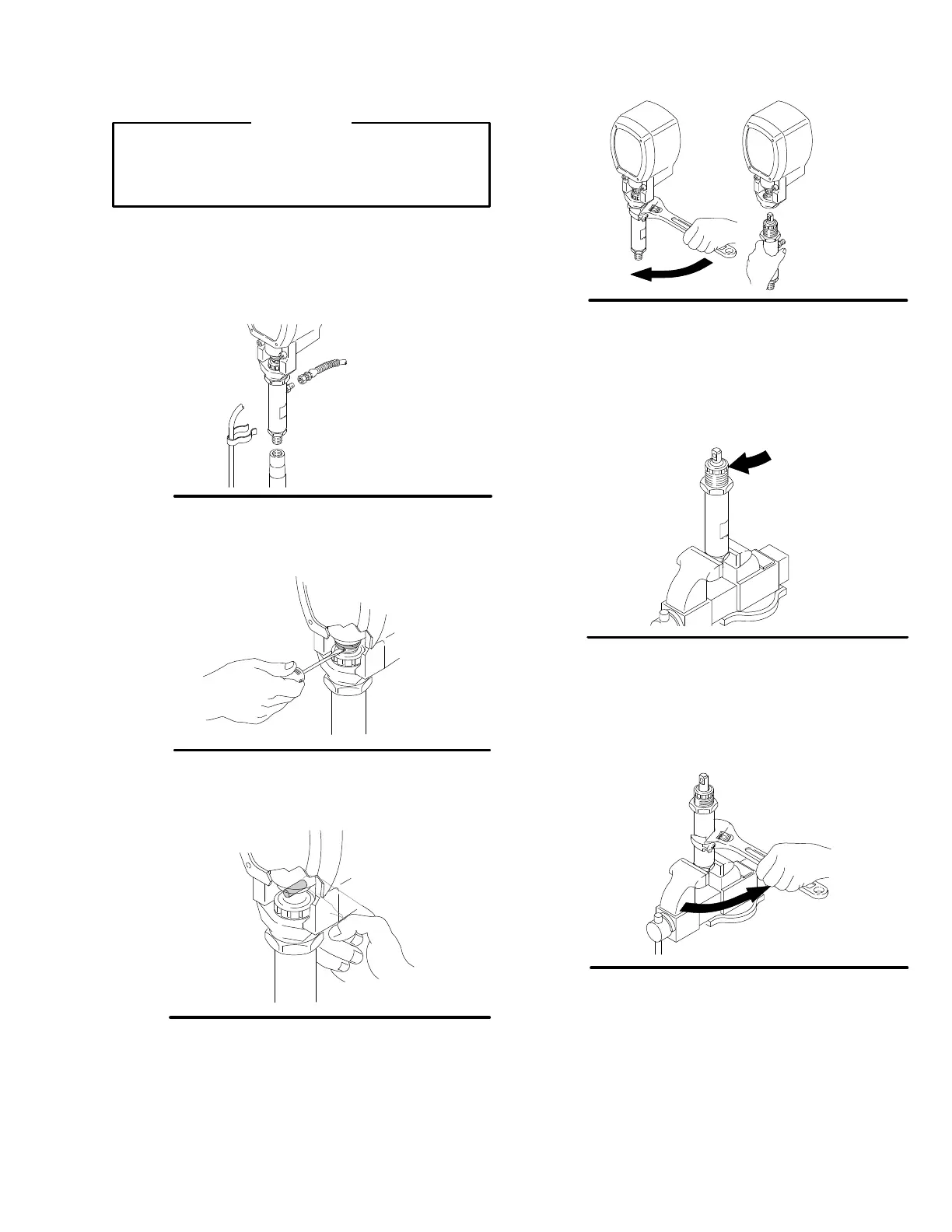

Fig. 26
02553
2.
Unscrew the suction tube and hose from the
pump.
Fig. 27
02554
3.
Use a screwdriver to push the retaining spring up.
See Fig. 27.
Fig. 28
02555
4.
Push out the pin. See Fig. 28.
Fig. 29
02556
5.
Loosen the locknut and unscrew the pump.
Fig. 30
02557
6.
Loosen the packing nut (416) and plug (405).
Fig. 31
02558
7.
Unscrew the cylinder from the intake valve.
