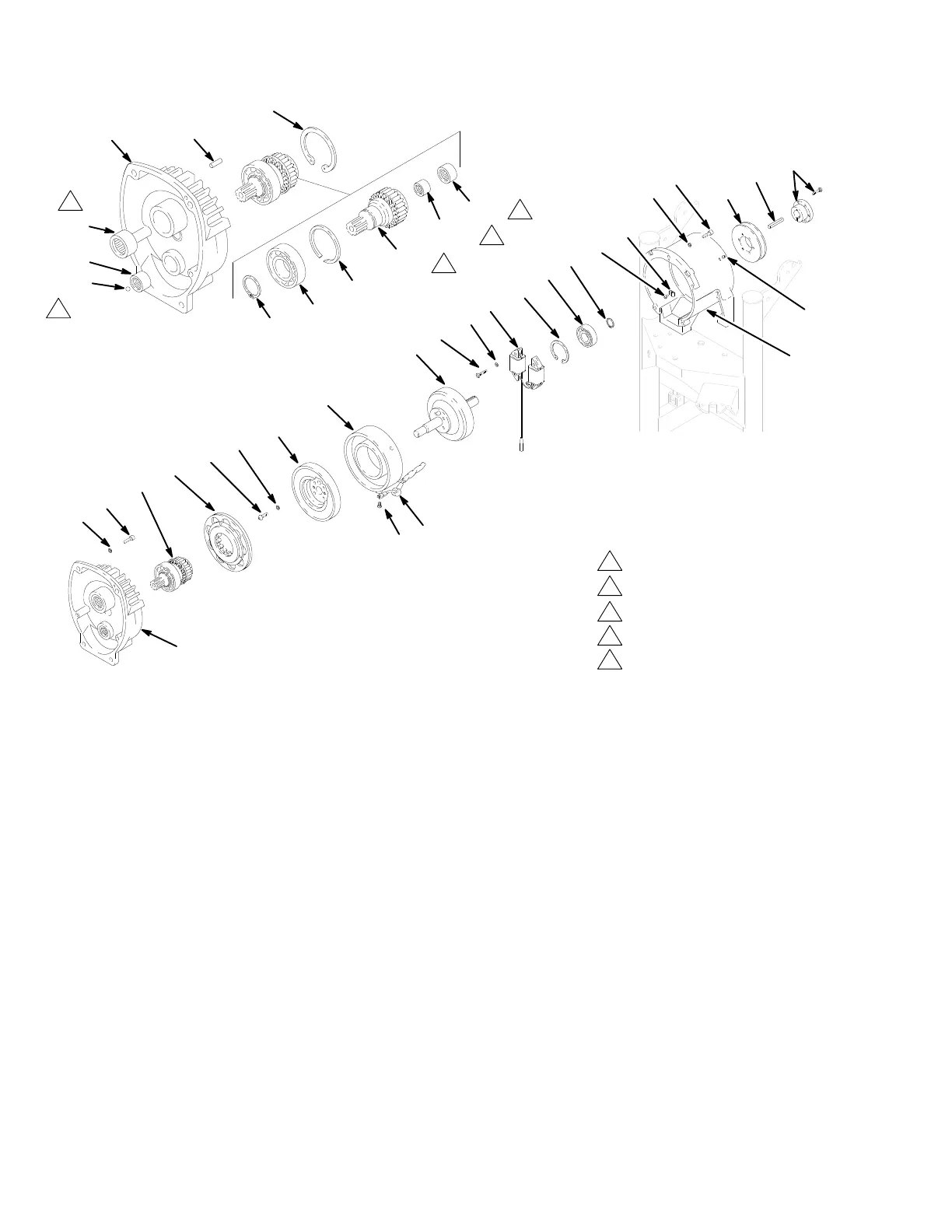

Parts – Clutch Housing Alternator
222
202
200
201
212b
213
214
212a
210
209
206
205
203
204
208
207
211
221
220
219
214
215
218
02697
218b
218c
218e
218a
218d
218f
219b
219c
219d
219a 219e
22
64
02737
214
215
217
1
3
4
2
Lubricate
exterior
Lubricate inner and outer diameters
Lubricate teeth
Press fit before 218f
5
Press fit after 218d
1
1
3
4
5
Ref No. 2
Part No. 236–397
CLUTCH HOUSING AL TERNAT OR KIT
Includes items 200 to 222
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
200 183–401 KEY 1
201 109–581 BUSHING 1
202 109–580 SHEAVE 1
203 112–132 RETAINING RING, 0.693” 1
204 112–126 BALL BEARING 1
205 112–128 RETAINING RING, 2.054” 1
206 236–395 GENERATOR STATOR 1
207 112–143 SCREW
, pan head, 10–24 x 1” 4
208 100–020 LOCKWASHER 4
209 236–395 ALTERNATOR SHAFT ROTOR 1
210 188–425 FIELD 1
211 108–801 SETSCREW
, 1/4–20 x .31” 4
212 221–031
CLUTCH, includes 212a and 212b 1
212a . ROTOR 1
212b . ARMATURE 1
213 112–142 CAPSCREW
, 1/4–28 x 3/4” 4
214 105–510 LOCKW
ASHER, spring, 1/4” 9
215 100–644 CAPSCREW
, 1/4–20 x 3/4” 5
217 108–799 RETAINING RING 1
218 236–394 PINION OUTPUT SHAFT KIT
Includes replaceable items
218a to 218f 1
218a 188–812 . PINION OUTPUT SHAFT 1
218b 112–141 . RETAINING RING 1
218c 108–798 . BALL BEARING 1
218d 112–139 . NEEDLE BEARING, small 1
218e 108–796 . RETAINING RING 1
218f 112–140 . NEEDLE BEARING, large 1
219 236–398 PINION HOUSING KIT
Includes replaceable items
219a to 219e 1
219a 188–793 . PINION HOUSING 1
219b 108–692 . NEEDLE BEARING, large 1
219c 107–088 . NEEDLE BEARING, small 1
219d 100–069 . BALL 1
219e 105–489 . PIN 1
220 112–145 CABLE CLAMP 1
221 112–144 SCREW
, pan head, 8–32 x 1/4” 1
222 188–791 CLUTCH HOUSING 1
