Graco Husky 1050 - Dimensions and Mounting; Aluminum (1050 A)

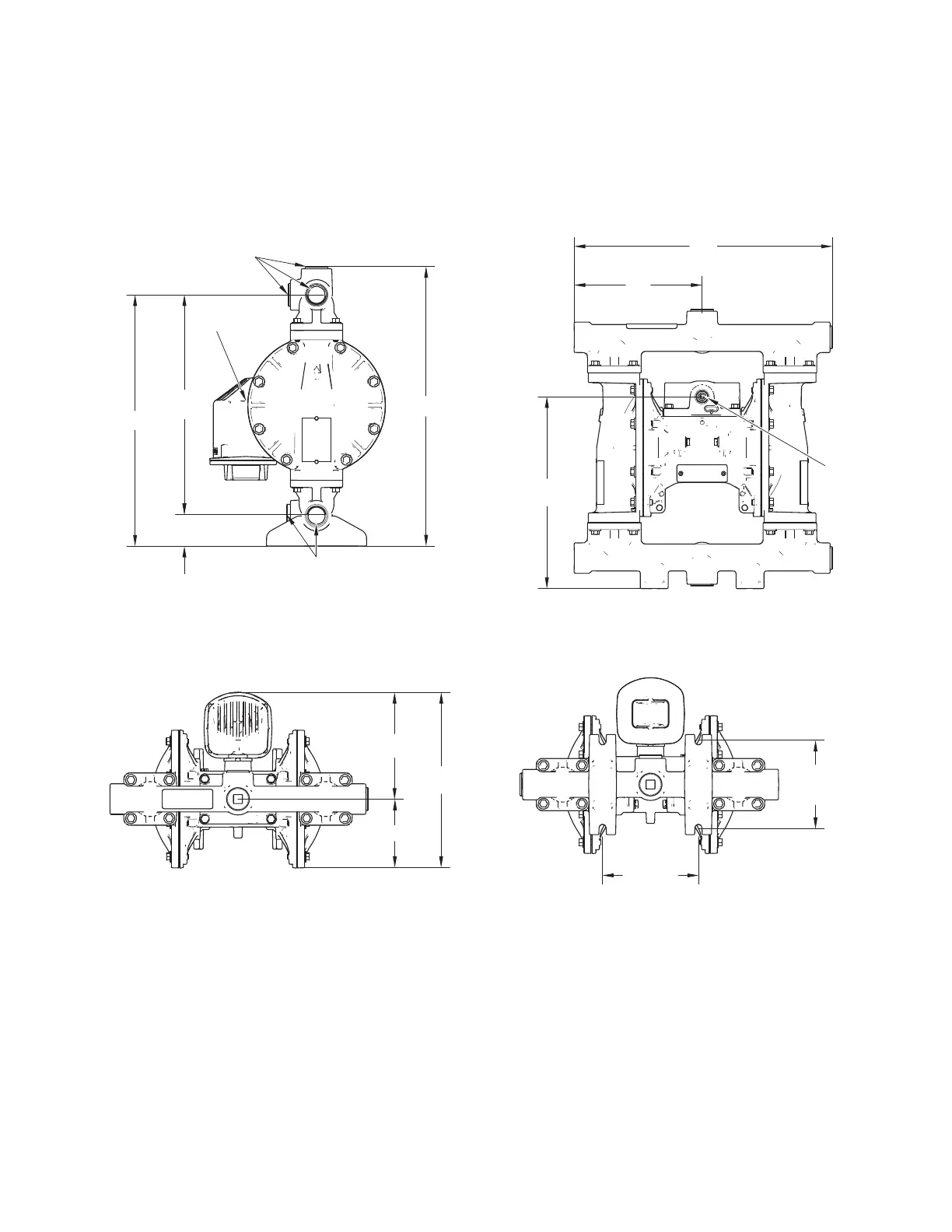

Dimensions and Mounting
312877ZAD 19
Dimensions and Mounting
Aluminum (1050A)
5.0 in.
5.5 in.
(140 mm)
(127 mm)
K
J
H
&
%
E
A
1
0
3
/
G
F
D
ti12212b ti12211b
ti12213b
ti14540b
A 12.7 in. (323 mm)
B 14.4 in. (366 mm)
C 15.9 in. (404 mm)
D 10.9 in. (277 mm)
E 1.8 in. (46 mm)
F 7.3 in. (185 mm)
G 14.7 in. (373 mm)
H 6.2 in. (158 mm)
J 3.9 in. (99 mm)
K 10.2 in. (258 mm)
L 1/2 npt(f) air inlet
M 1 in. npt(f) or 1 in. bspt fluid inlet
ports (4)
N 1 in. npt(f) or 1 in. bspt fluid outlet
ports (4)
P 3/4 npt(f) air exhaust port
