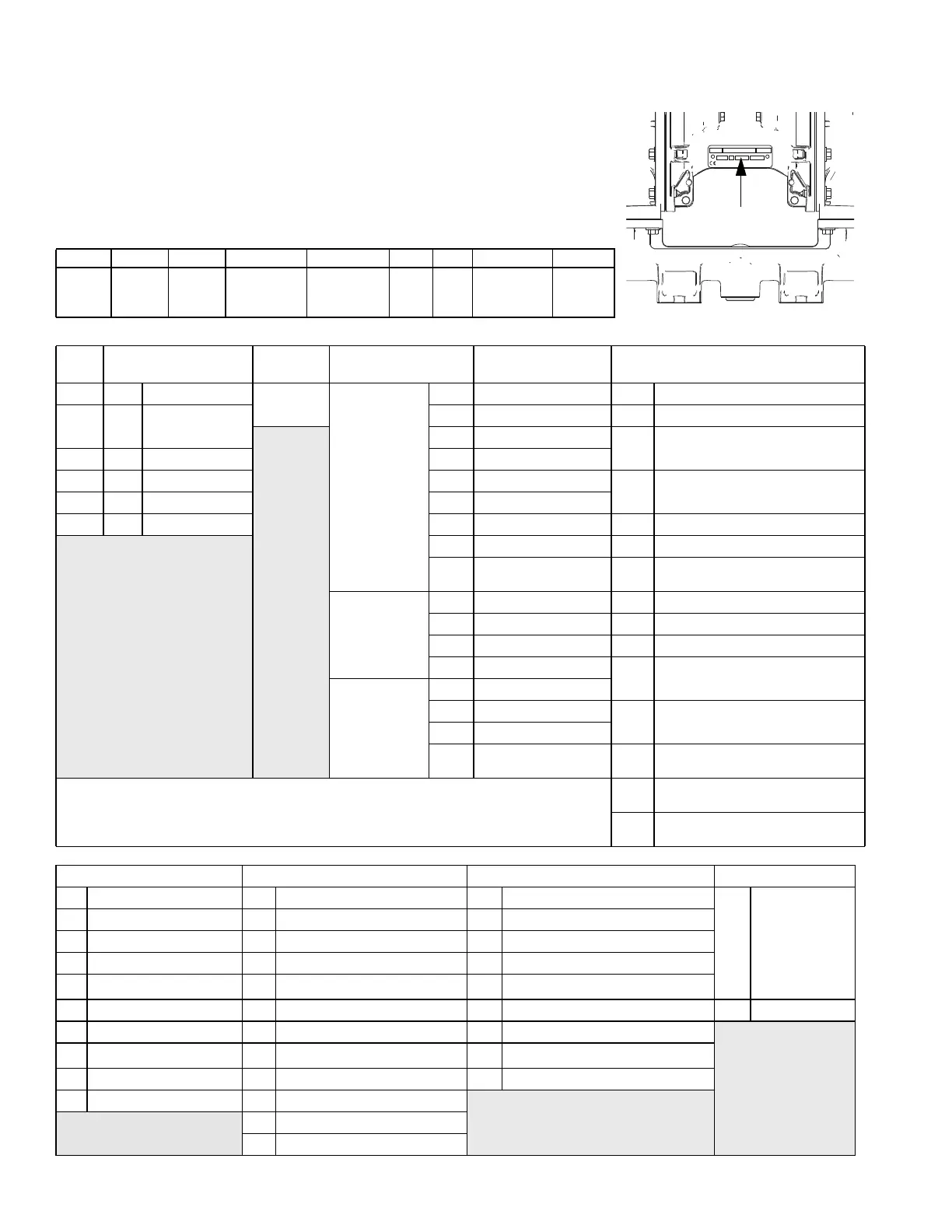

Pump Matrix
Check the identification plate (ID) for the Configuration Number of your
pump. Use the following matrix to define the components of your pump.
Sample Configuration Number: 1050A-PA01AA1SSBNBNPT
1050 A P A01A A1 SS BN BN PT
Pump
Size
Wetted
Section
Material
Drive
Identifier
Center
Section and
Air Valve
Fluid
Covers and
Manifolds
Seats Balls Diaphragms Manifold
O-Rings
CONFIGURATION NO.PART NO. SERIAL NO.
SERIESDATE CODE
MAX WPR PSI-bar
MADE IN
ID
ti14103
a
Pump
Size
Wetted Section Material Drive
Identifier
Center Section and Air
Valve Material
Air Valve/Monitoring Fluid Covers and Manifolds
1050 A Aluminum P
Pneumatic
Aluminum
A01A Standard A1 Aluminum, standard ports, inch
1050 C Conductive
Polypropylene
A01B Pulse Count  A2 Aluminum, standard ports, metric
A01C DataTrak  C1 Conductive polypropylene, center
flange
1050 F PVDF A01D Remote
1050 H‡ Hastelloy A01E Optional FKM Seals C2 Conductive polypropylene, end
flange
1050 P Polypropylene A01H Standard, Gray
1050 S‡ Stainless Steel AC1A CSA-Compliant F1 PVDF, center flange
AU1A UL-Listed; Fuel transfer F2 PVDF, end flange
AU3A UL-Listed; Fuel
dispense
H1 Hastelloy, standard ports, inch
Conductive
Polypropylene
C01A Standard H2 Hastelloy, standard ports, metric
C01B Pulse Count  P1 Polypropylene, center flange
C01C DataTrak  P2 Polypropylene, end flange
C01D Remote S1 Stainless steel, standard ports, inch
Polypropylene
P01A Standard
P01B Pulse Count S2 Stainless steel, standard ports,
metric
P01C DataTrak
P01D Remote S5-1 Stainless steel, center flange,
horizontal outlet port
, ‡, , or : See ATEX Certifications, page 5.
Contains pressure relief valve.
S5-2 Stainless steel, center flange, vertical
outlet port
S5-3 Stainless steel, center tri-clamp,
horizontal inlet and outlet port
Check Valve Seats Check Valve Balls Diaphragm Manifold O-Rings
AC Acetal AC Acetal BN Buna-N — Models with
Buna-N, FKM
Fluoroelastomer
or TPE seats do
not use o-rings.
AL Aluminum BN Buna-N CO Polychloroprene Overmolded
BN Buna-N CR Polychloroprene Standard FK FKM Fluoroelastomer
FK FKM Fluoroelastomer CW Polychloroprene Weighted GE Geolast
GE
Geolast
®
EP EPDM PO PTFE/EPDM Overmolded
PP Polypropylene FK FKM Fluoroelastomer PS PTFE/Santoprene Two-Piece PT PTFE
PV PVDF GE Geolast PT PTFE/EPDM Two-Piece
SP
Santoprene
®
PT PTFE SP Santoprene
SS 316 Stainless Steel SD 440C Stainless Steel TP TPE
TP TPE SP Santoprene
SS 316 Stainless Steel
TP TPE
