Graco Husky 307 - Common Installation Configurations; Stand-Mounted Air Spray Installation; Pail-Mounted HVLP Air Spray Installation

8 308553
Installation

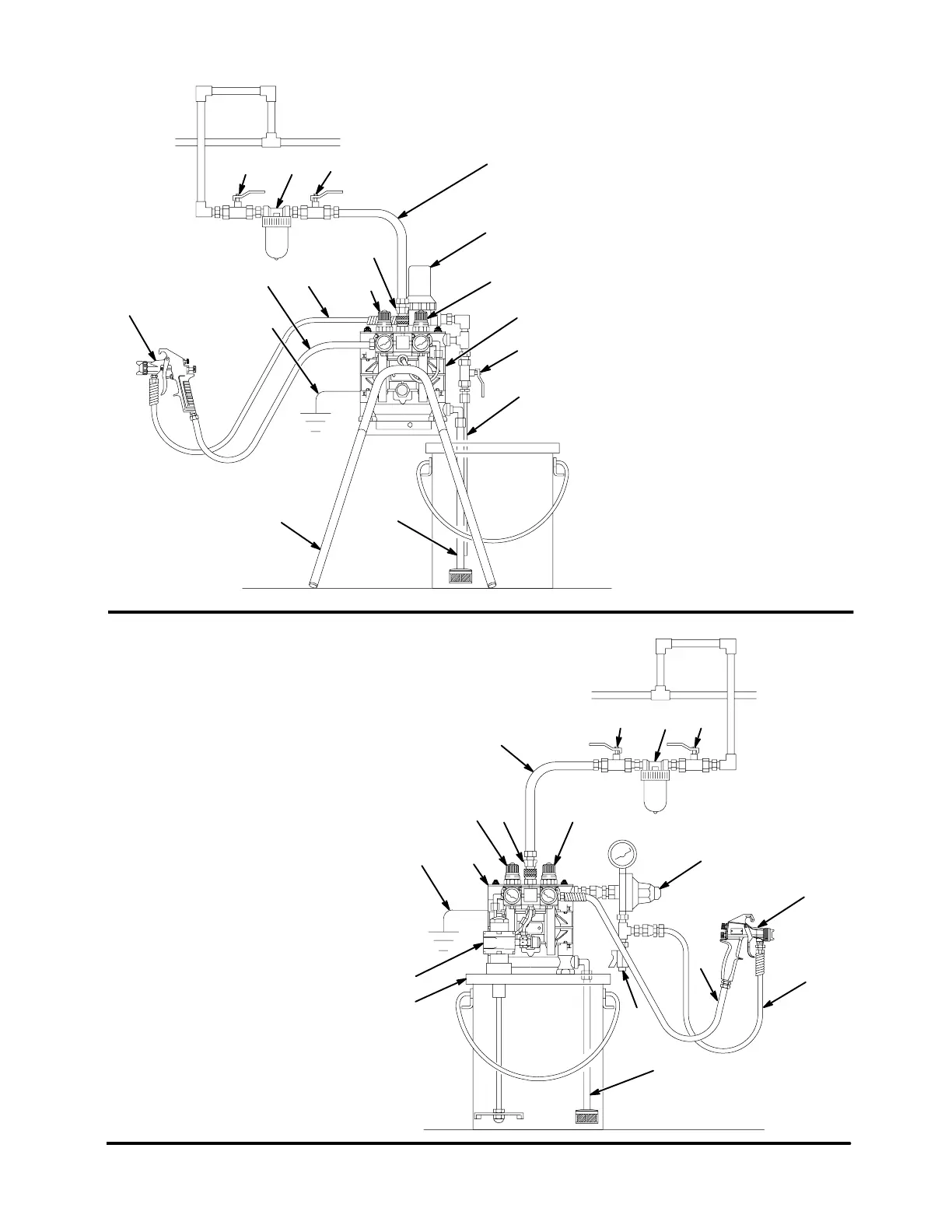

Fig. 4
KEY
A Husky 307 Pump
B Bleed-Type Master Air Valve
(required for pump)
C Air Supply Hose
D Air Line Quick Disconnect
E Master Air Valve (for accessories)
F Air Line Filter
G Gun Air Regulator
H Pump Air Regulator
J Fluid Drain Valve (required)
K Fluid Recirculation Line
L Fluid Suction Line
M Surge Tank and Filter
N Fluid Supply Hose
P Gun Air Supply Hose
R Air Spray Gun
S Floor Stand
Y Ground Wire (required; see page 5
for installation instructions)
H
J
STAND-MOUNTED AIR SPRAY INSTALLATION
01433B
A
C
D
G
K
L
M
NP
R
S
Y
F BE
Fig. 5
PAIL-MOUNTED HVLP AIR SPRAY INSTALLATION
01434B
H
J
A
C
DG
K
L
M
N
P
R
Y
S
KEY
A Husky 307 Pump
B Bleed-Type Master Air Valve
(required for pump)
C Air Supply Line
D Air Line Quick Disconnect
E Master Air Valve (for accessories)
F Air Line Filter
G Gun Air Regulator
H Pump Air Regulator
J Fluid Drain Valve (required)
K Agitator
L Fluid Suction Line
M Fluid Regulator
N Fluid Supply Hose
P Gun Air Supply Hose
R HVLP Air Spray Gun
S Pail Cover
Y Ground Wire (required; see page 5
for installation instructions)
FBE
