Graco Husky 307 - Alternative Installation Configurations; Bung-Mount Transfer Installation; Wall-Mount Transfer Installation

308553 9
Installation

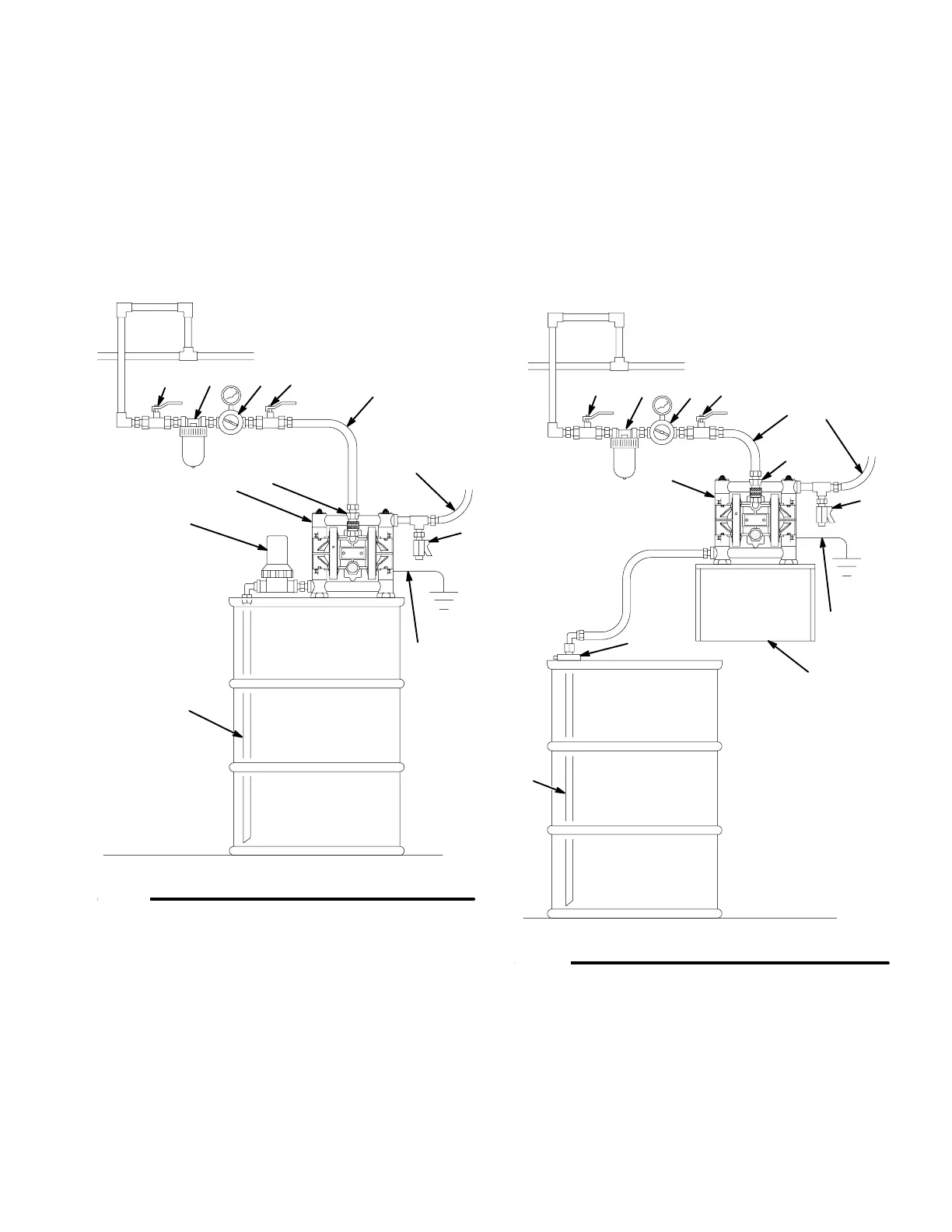

Fig. 6
BUNG-MOUNT TRANSFER INSTALLATION
01444B
Y
J
C
N
L
FHBE
KEY
A Husky 307 Pump
B Bleed-Type Master Air Valve
(required for pump)
C Air Supply Line
D Air Line Quick Disconnect
E Master Air Valve (for accessories)
F Air Line Filter
H Pump Air Regulator
J Fluid Drain Valve (required)
L Fluid Suction Line
M Fluid Inlet Filter
N Fluid Supply Hose
Y Ground Wire (required; see page 5
for installation instructions)
M
A
D
Fig. 7
01457B
WALL-MOUNT TRANSFER INSTALLATION
Y
J
NC
L
FHBE
KEY
A Husky 307 Pump
B Bleed-Type Master Air Valve
(required for pump)
C Air Supply Line
D Air Line Quick Disconnect
E Master Air Valve (for accessories)
F Air Line Filter
H Pump Air Regulator
J Fluid Drain Valve (required)
L Fluid Suction Line
N Fluid Supply Hose
S Wall Bracket
T Bung Adapter
Y Ground Wire (required; see page 5
for installation instructions)
S
T
D
A
