Setup
10 3A1177B

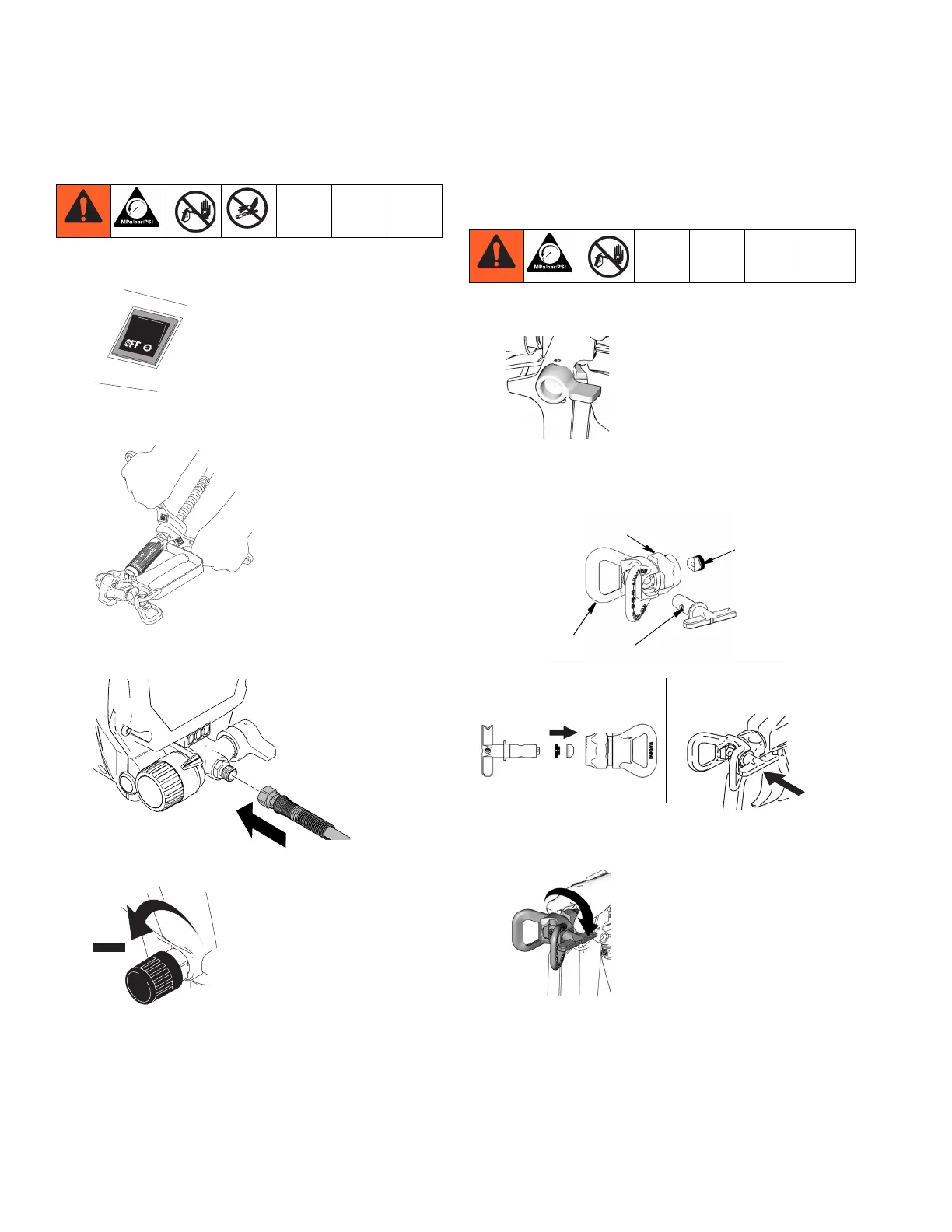

Setup
1. Turn OFF power switch.
2. Connect one end of grounded fluid hose to SG3
spray gun. Use a wrench to tighten.
3. Connect other end of hose to sprayer fluid outlet fit-
ting. Use wrench to tighten.
4. Turn pressure control knob left (minimum pressure).
Install Tip and Guard on Gun
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in
order shown.
3. Screw tip and guard assembly on gun. Tighten
retaining nut.
ti2018a
ti2024a
ti15965a
ti2020a
ti8908a
retaining nut
black rubber gasket and
guard
tip
ti8911a
metal seat
Use tip to align seat
Tip must be pushed
all the way into guard
in guard
ti9574a
ti5606a
ti9313a
