Off-Board Stainless Steel Feed Systems
312394B 58 of 71

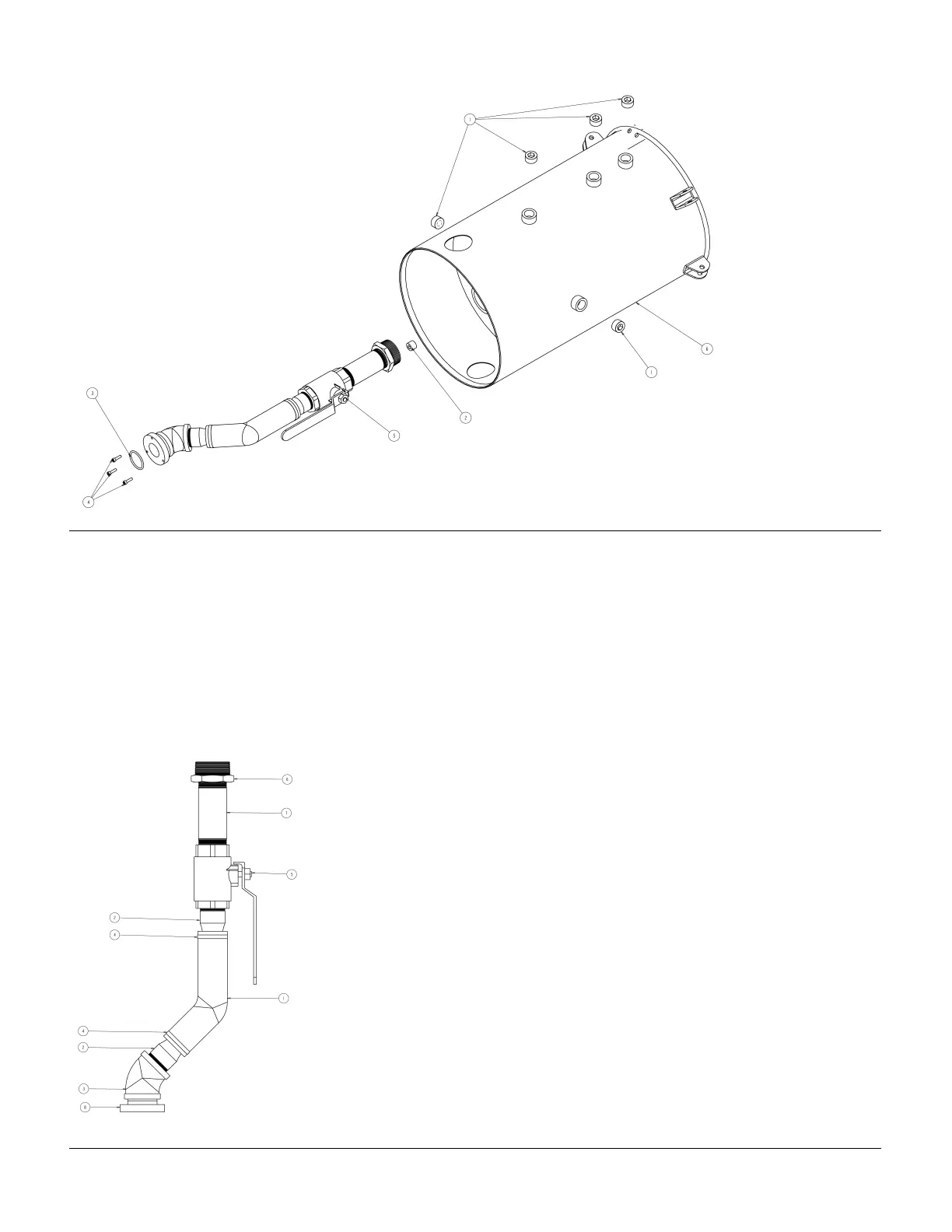

Figure 73: Off-Board Tank Assembly
P/N LC0054* 30L TANK ASSEMBLY
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 4 120904 SCREW,SHCS,M5X0.8X18MM,SST
2 94/0371/98 PLUG,SKT HD,1/2NPT,SS 5 255391 SYSTEM,FEED
3 95/0223/00 O-RING,VIT,BBC 6 15M627* TANK,30L,SST
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
P/N LC0055* 60L TANK ASSEMBLY
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 4 120904 SCREW,SHCS,M5X0.8X18MM,SST
2 94/0371/98 PLUG,SKT HD,1/2NPT,SS 5 255391 SYSTEM,FEED
3 95/0223/00 O-RING,VIT,BBC 6 15M628* TANK,15GALLON,SST
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
P/N 255391 Feed System
1 61/0056/88 HOSE,CHEM,PE,1-1/2
2 94/0910/98 NIPPLE,BARB,1-1/2X1-1/2NPT,M,SS
3 94/1081/98 ELBOW,1-1/2,F,45DEG,SS
4 94/0414/99 CLAMP,HOSE,2-1/4”-15/16”,MS
5 121135 VALVE,BALL,1-1/2 NPT FULL PORT SST
6 121136 BUSHING,HEX,2" NPT TO 1-1/2"NPT,SST
7 15R536 NIPPLE,1-1/2"NPT X 3-1/2" LONG,SST
8 15M237 FITTING, 1-1/2" NPT FLANGE
Figure 74: Off Boards Pipe and Tubing System
