Off-Board Stainless Steel Feed Systems

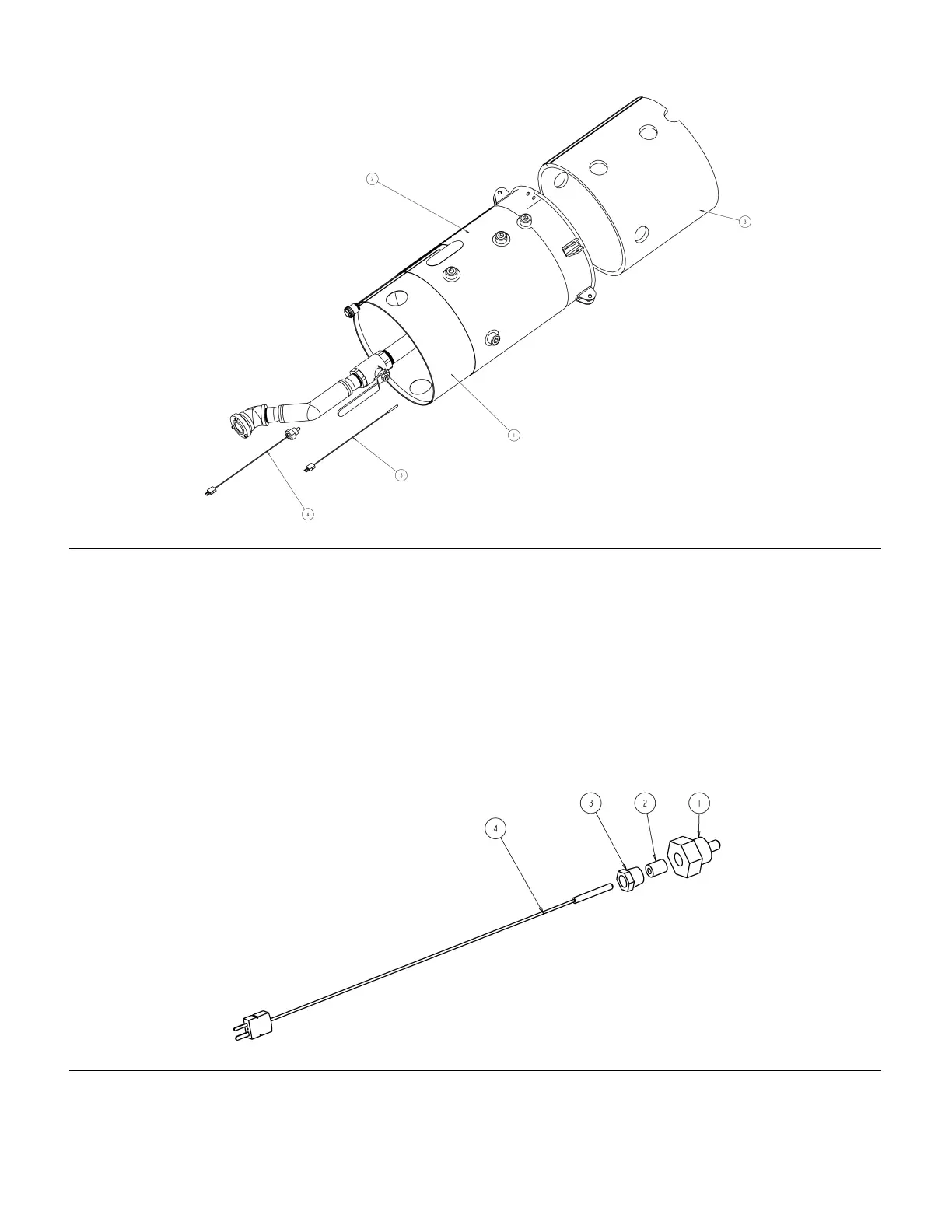

Figure 75: Off-Board Feed Systems with Heat
P/N LC0104* 30L TANK ASSEMBLY WITH HEAT
1 LC0054 TANK ASSY, 7.5 GALLON,SST 4 LC0119 THERMOWELL ASSY
2 LC0115 HEAT BLANKET ASSY,10GALLON 5 LC0860 HARNESS,THERMOCOUPLE.J TYPE
LC0117 INSULATION,BLANKET,10GALLON
A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
H HEAT
A H
HE A PE
3 LC0118 INSULATION,BLANKET,15GALLON
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
3
* PART CANNOT BE ORDERED AS
P/N LC0105* 60L TANK ASSEMBLY WIT
1 LC0055 T NK ASSY,15 GALLON,SST 4 LC0119 T ERMOWELL ASSY
2 LC0116 AT BLANKET ASSY,15GALLON 5 LC0860 H RNESS,THERMOCOUPLE.J TY
Figure 76: Thermowell Assembly
P/N LC0119 THERMOWELL ASSEMBLY
1 01/0278/98 THERM OWELL,1/4NPT TO 1/2NPT,FXM> 3 01/0279/87 SLEEVE,COMPRESSION
2 LC0860 HARNESS,THERMOCOUPLE.J TYPE 4 94/0598/98 BUSHING,1/4NPTX1/8NPT,SS
312394B 59 of 71
