Off-Board Stainless Steel Feed Systems

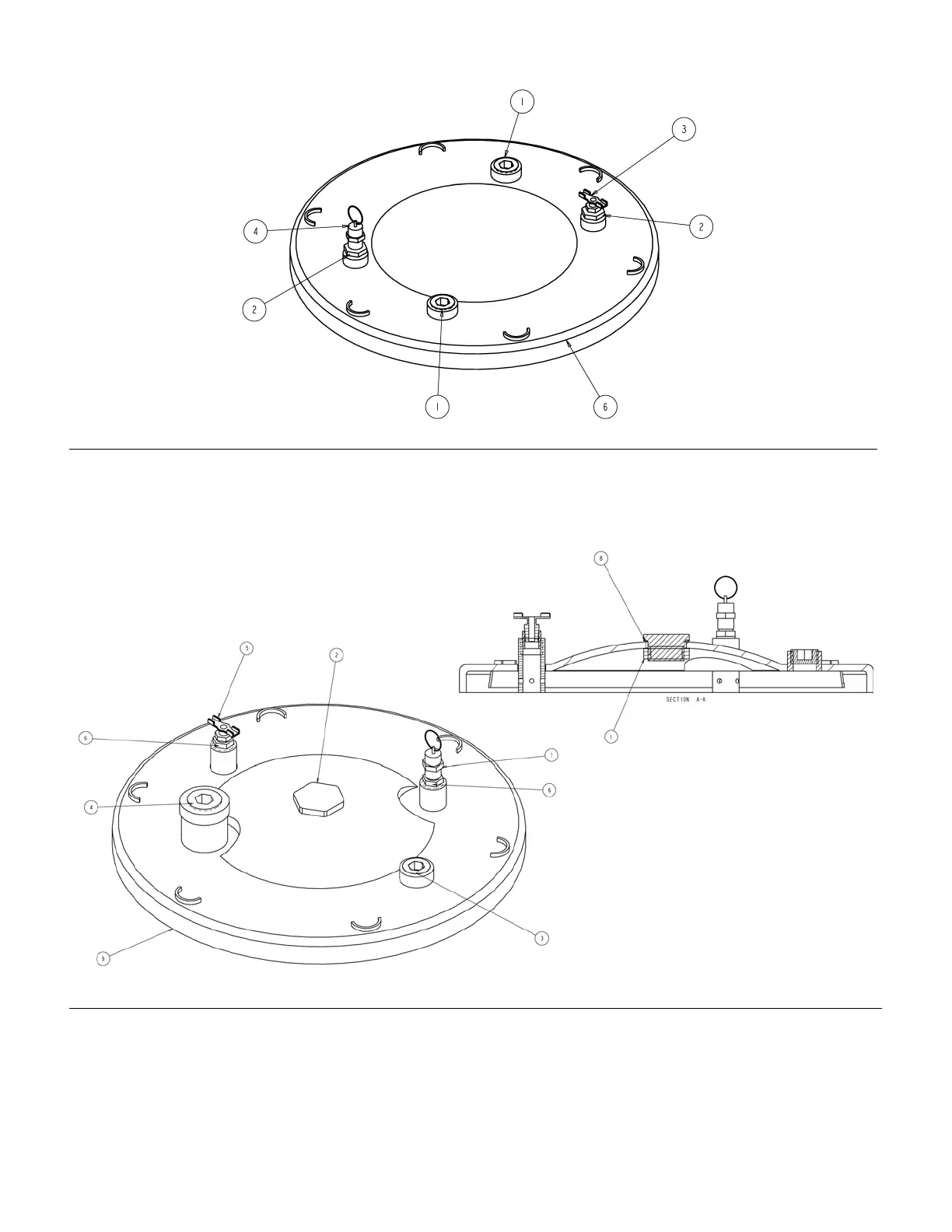

Figure 77: LID ASSEMBLY, 30L (P/N LC0042)*
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 4 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
2 94/0568/98 BUSHING,1/2NPTX1/4NPT,3K,SS 5 117571 GASKET (NOT SHOWN)
3 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS 6 15M578* LID,30L,SST
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
Figure 78: LID ASSY, 60L, SST (P/N LC0101)*
1 87/0256-P N/98 NUT,PLU G,LID,10/15GAL,SS 6 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS>
2 87/0256-P/9 8 PLUG,LID,TANK,10/15GAL,SS 7 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
3 94/0372/98 PLUG,SKT HD,3/4NPT,SS 8 95/0029/02 O-RING,EP,JBI
4 94/0373/98 PLUG,SKT HD,1"NPT,SS 9 15M835* LID MOD,15GAL,SST
5 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
312394B 60 of 71
