Off-Board Stainless Steel Feed Systems

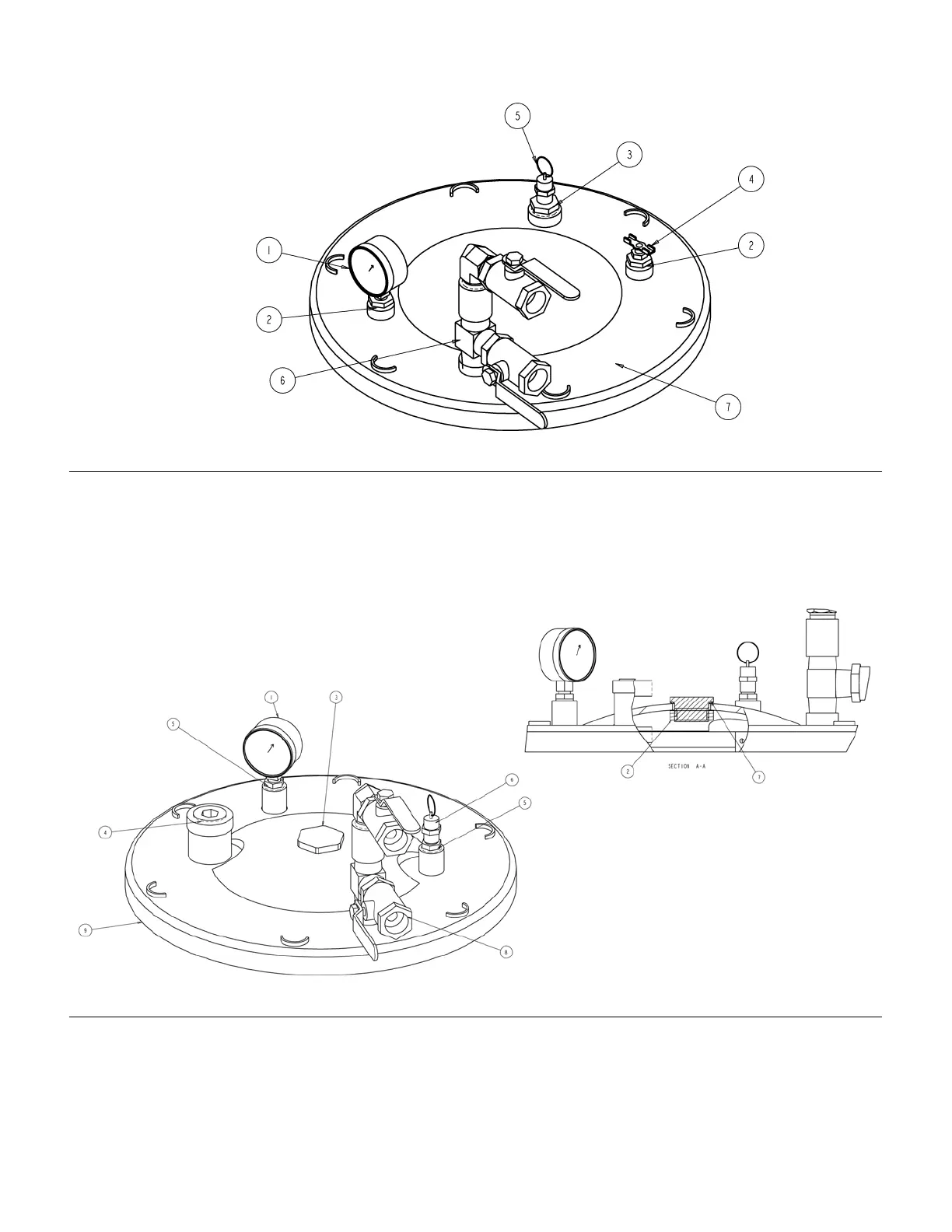

Figure 79: LID ASSEMBLY, 30L WITH VACUUM DEGAS (P/N LC0043)*
1 82/0220-1/11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 5 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
2 94/0568/98 BUSHING,1/2NPTX1/4NPT,3K,SS 6 255384 MANIFOLD,VACUUM TREE,3/4" NPT
3 94/0609/98 BUSHING,3/4NPTX1/4NPT,3K,SS 7 15M578* LID,7.5 AND 15 GALLON TANKS
4 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
Figure 80: LID ASSY, 60L, SST WITH VACUUM DEGAS (P/N LC0102)*
1 82/0220-1 /11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 6 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
2 87/0256-P N/98 NUT,PLUG,LID,10/15GAL,SS 7 95/0029/02 O-RING,EP,JBI
3 87/0256-P/9 8 PLUG,LID,TANK,10/15GAL,SS 8 255384 MANIFOLD,VACUUM TREE,3/4" NPT
4 94/0373/98 PLUG,SKT HD,1"NPT,SS 9 15M835* LID MOD,60L,SST
5 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS>
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
