Off-Board Stainless Steel Feed Systems

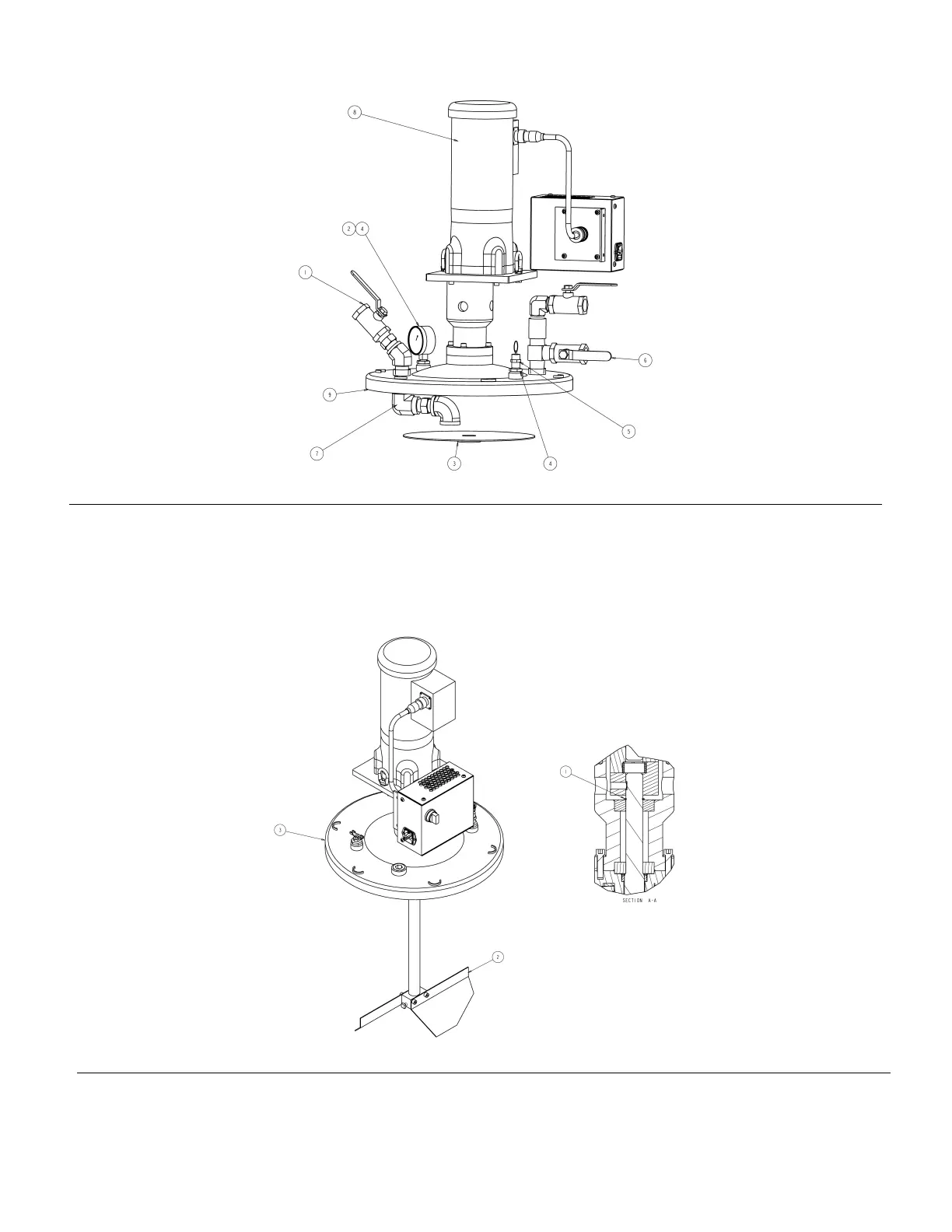

Figure 83: 30L LID ASSY WITH AGITATOR, VACUUM DEGAS, & FILL PORT (P/N LC0046)*
1 02/0686-A/50 VALVE ASSY,BALL,FILL,LID,3/4,MS,>50 TORR 6 255384 MANIFOLD,VACUUM TREE,3/4" NPT
2 82/0220-1/11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 7 255385 ASSY,FILL PORT,3/4" NPT
3 87/0105-E/98 PLATE,SLINGER,10/15 GAL,1"ID,10"OD,SS 8 255386 MOTOR ASSY,LID,AGIT
4 94/0568/98 BUSHING,1/2NPTX1/4NPT,3K,SS 9 15M621* LID,AG,7.5 AND 15 GALLON TANKS,SST
5 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
Figure 84: 30L LID ASSY WITH AGITATOR (P/N LC0047)*
1 96/0818/99 RING,RET,EXT,0.750,MS 1 LC0044 LID ASSY,AGIT
1 255387 AGITATOR ASSY,5 GAL
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
