Off-Board Stainless Steel Feed Systems

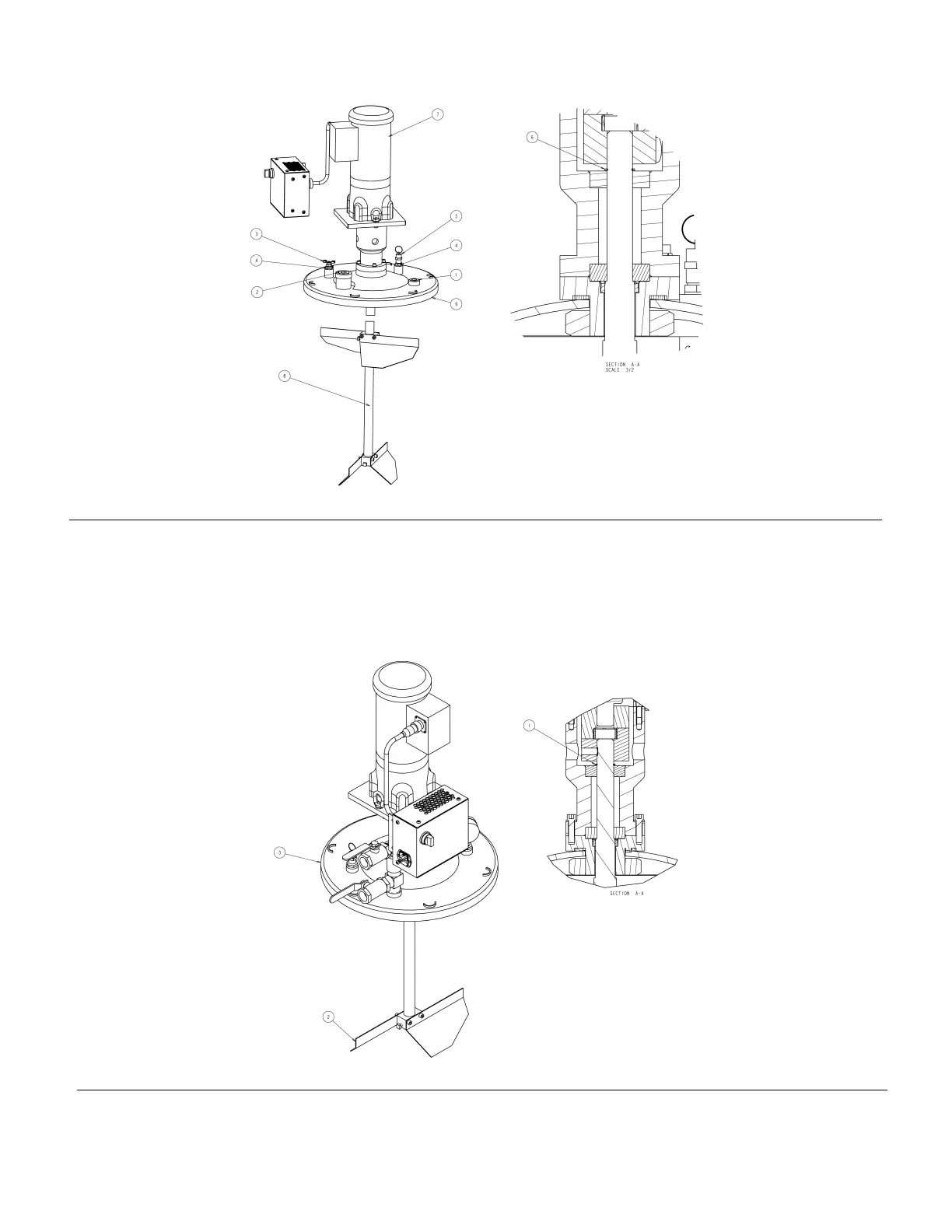

Figure 85: 60L LID ASSY WITH AGITATOR (P/N LC0048)*
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 6 96/0818/99 RING,RET,EXT,0.750,MS
2 94/0373/98 PLUG,SKT HD,1"NPT,SS 7 255386 MOTOR ASSY,LID,AGIT
3 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS 8 255388 AGITATOR ASSY,15 GAL
4 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS> 9 15M836* LID MOD,15 GAL,SST,AGITATOR
5 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
* PART CANNOT BE ORDERED AS SPARES. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
Figure 86: 30L LID ASSY WITH AGITATOR AND VACUUM DEGAS (P/N LC0049)*
1 96/0818/99 RING,RET,EXT,0.750,MS 3 LC0045 LID ASSY,AGIT,VAC DEGAS
2 255387 AGITATOR ASSY,5 GAL
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
312394B 64 of 71
