Graco PR70 - Perform a Shot; Sequence Mode Operation

Operation
56 312759W

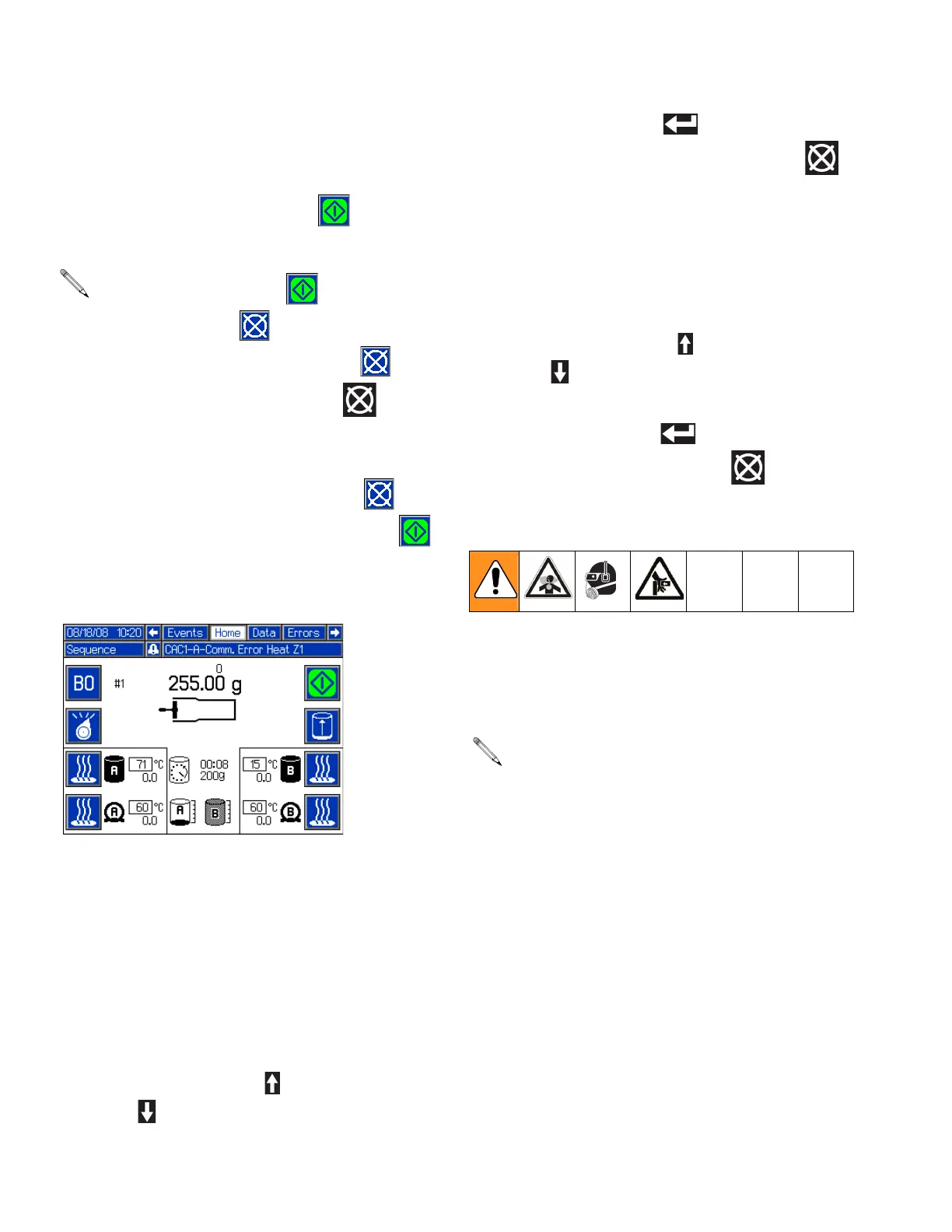

Perform a Shot
1. Select Shot Mode. See Change Operating Mode,
page 55.
2. Press the Start/Stop Shot button ( ) to start a
shot.
Sequence Mode Operation
To change the setup of a sequence navigate to Edit
Screens #2-#5. See Screen Navigation Diagram,
page 17.
Change Active Sequence
1. Select Sequence Mode. See Change Operating
Mode, page 55.
2. Press and hold the Active Shot/Sequence
button (BA) for three seconds.
3. Use the Up Arrow button ( ) and the Down Arrow
button ( ) to select the desired sequence. Only
non-zero sequences will be available for selection.
4. Press the Enter button ( ) to accept the new
sequence or press the Abort/Cancel button ( )
to keep the previous sequence.
Change Active Position in Sequence
1. Select Sequence Mode. See Change Operating
Mode, page 55.
2. Press the Active Shot/Sequence button (BA).
3. Use the Up Arrow button ( ) and the Down Arrow
button ( ) to select the desired position in the
sequence.
4. Press the Enter button ( ) to accept the number
or press the Abort/Cancel button ( ) to keep the
current number.
Perform a Sequence
1. Select Sequence Mode. See Change Operating
Mode, page 55.
2. Select the desired sequence.
The Start/Stop Shot button ( ) changes to the
Abort/Cancel button ( ) during the shot. Press
the Abort/Cancel button on the screen ( ) or the
Abort/Cancel button on the keypad ( ) to can-
cel the shot if necessary.
When the shot is complete or if the shot is aborted,
the Abort/Cancel button on the screen ( )
changes back to the Start/Stop Shot button ( ).
If Auto-Sequencing is enabled on the Edit Screens
for the Active Sequence, the machine will automati-
cally perform all shots in that sequence when the
Start/Stop button is pressed. See Edit Screens,
page 23.
