Component Identification

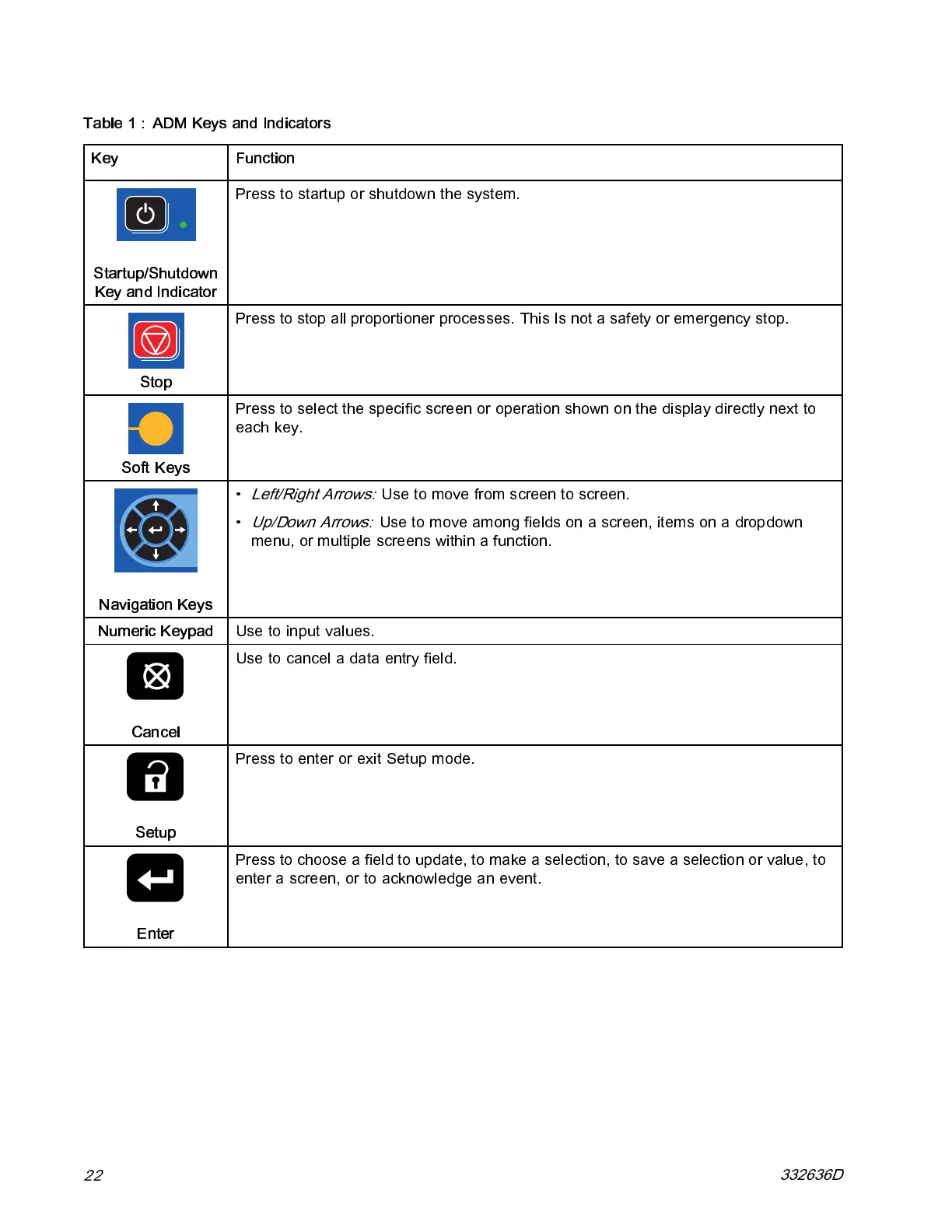

Table 1 : ADM Keys and Indicators
Key Function
Startup/Shu
tdown
Key and Indic
ator
Press to st artup or shutdown the system.
Stop
Press to stop a ll proportioner processes. This Is not a safety or emergency stop.
Soft Keys
Press to select the specific screen or operation shown on the display directly next to
each key.
Navigation Keys
• Left/Right Arrows: Usetomovefromscreentoscreen.
• Up/Down Arrows: Usetomoveamongfieldsonascreen,itemsonadropdown
menu, or multiple screens within a function.
Numeric Keypad Use to input values.
Cancel
Use to cancel a data entry field.
Setup
Press to enter or exit Setup mode.
Enter
Press to choose a field to update, to make a selection, to save a selection or value, to
enter a screen, or to acknowledge an event.
