Fluid Circulation
32 312065V
Circulation Through Gun
Manifold
Do not circulate fluid containing a blowing agent
without consulting with your material supplier
regarding fluid temperature limits.
Circulating fluid through the gun manifold allows rapid
preheating of hose.
1. Install gun fluid manifold (P) on Part 246362
accessory circulation kit (CK). Connect high
pressure circulation lines (R) to circulation manifold.
2. Route circulation lines back to respective
component A or B supply drum. Use hoses rated at
the maximum working pressure of this equipment.
See Typical Installation, without circulation,
page 13.
3. Follow Operation procedures, page 25.
4. Turn main power ON .
5. Set temperature targets see Set temperatures,
page 27. Turn on , , and heat
zones by pressing .
6. Press to display actual temperatures.
7. Circulate fluid in jog mode until and
temperatures reach targets.

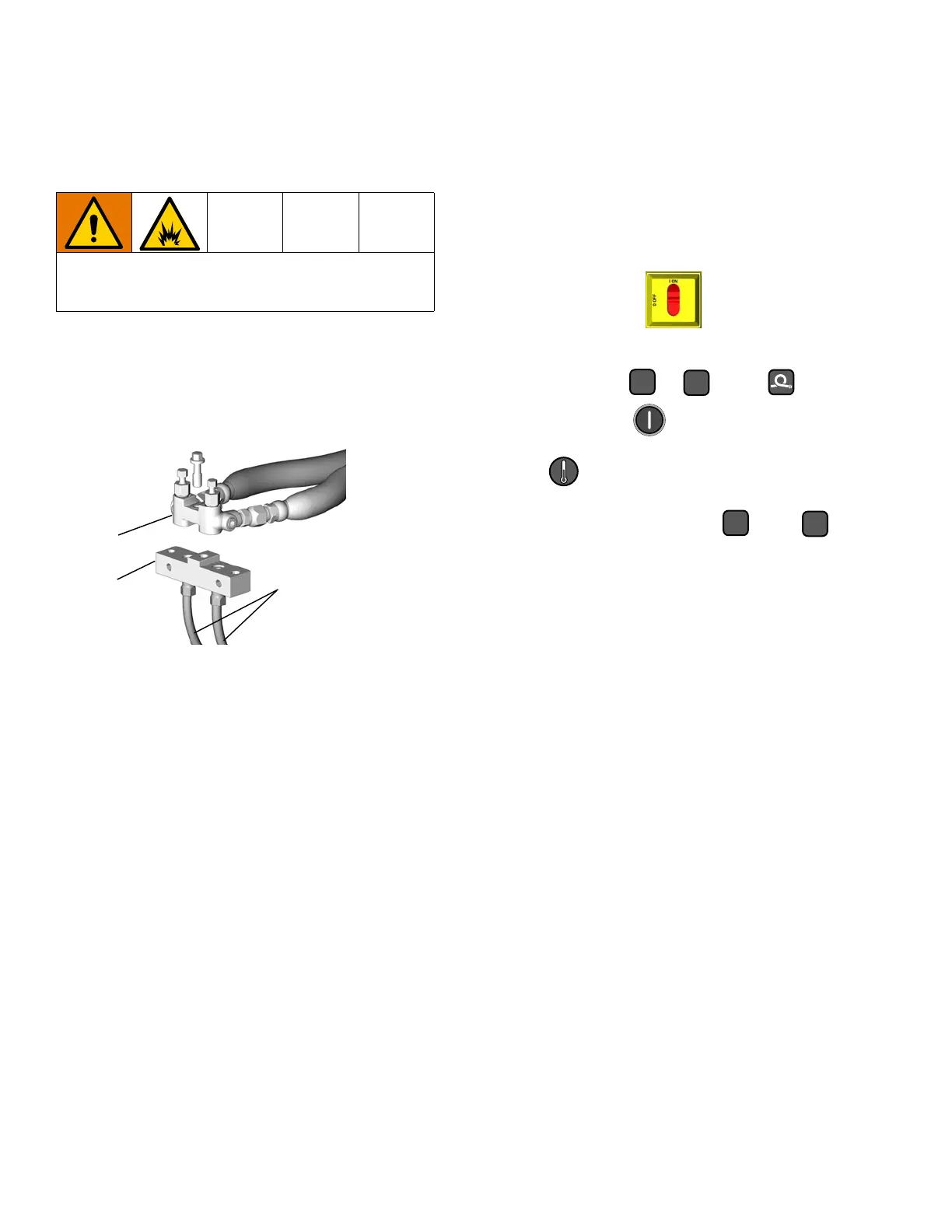

R
CK
P
ti2767a
A
B
A
B
