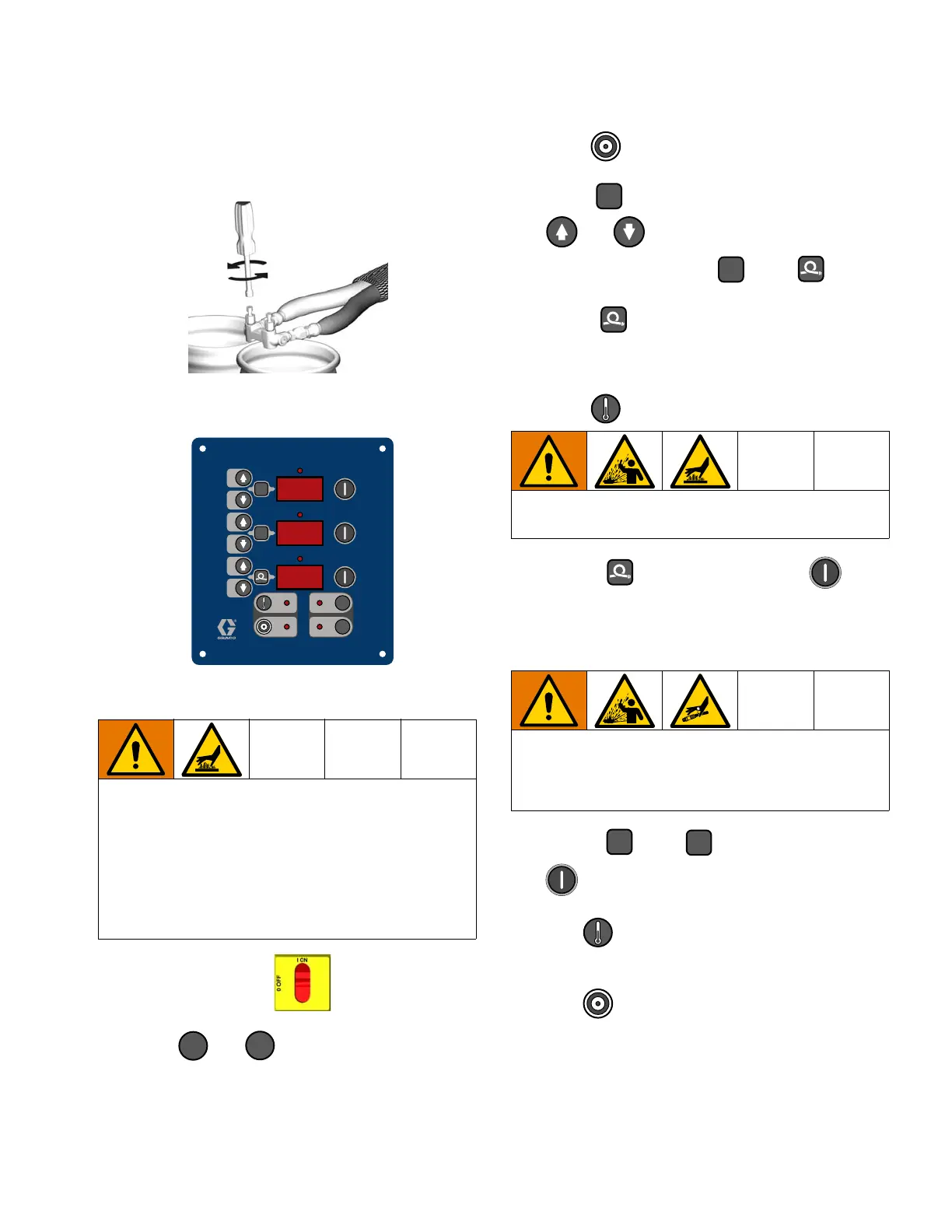

Operation
312065V 27
8. Use feed pumps to load system. Hold gun fluid
manifold over two grounded waste containers. Open
fluid valves A and B until clean, air-free fluid comes
from valves. Close valves.
Set temperatures
1. Turn main power ON .
2. Press or to change temperature
scale.
3. Press to display target temperatures.
4. To set heat zone target temperature, press
or until display shows desired
temperature. Repeat for and zones.
NOTE: For zone only, if FTS is disconnected at
startup, display will show hose current (0A). See step
10, page 28.
5. Press to display actual temperatures.
6. Turn on heat zone by pressing .
Preheat hose (15-60 min). Indicator will flash very
slowly when fluid reaches target temperature.
Display shows actual fluid temperature in hose near
FTS.
7. Turn on and heat zones by pressing
for each zone.
8. Hold to view electrical currents for each
zone.
9. Hold to view heater control circuit board
temperature.
This equipment is used with heated fluid, which can
cause equipment surfaces to become very hot. To
avoid severe burns:
• Do not touch hot fluid or equipment.
• Allow equipment to cool completely before
touching it.
• Wear gloves if fluid temperature exceeds 110°F
(43°C).
ti2484a
°
F
°
C
A
B
Temperature Controls and Indicators, see page 15
°
F
°
C
Do not turn on hose heat without fluid in hoses.
Thermal expansion can cause overpressurization,
resulting in equipment rupture and serious injury,
including fluid injection. Do not pressurize system
when preheating hose.
A
B
A
B
To Next Page
