312062A 17

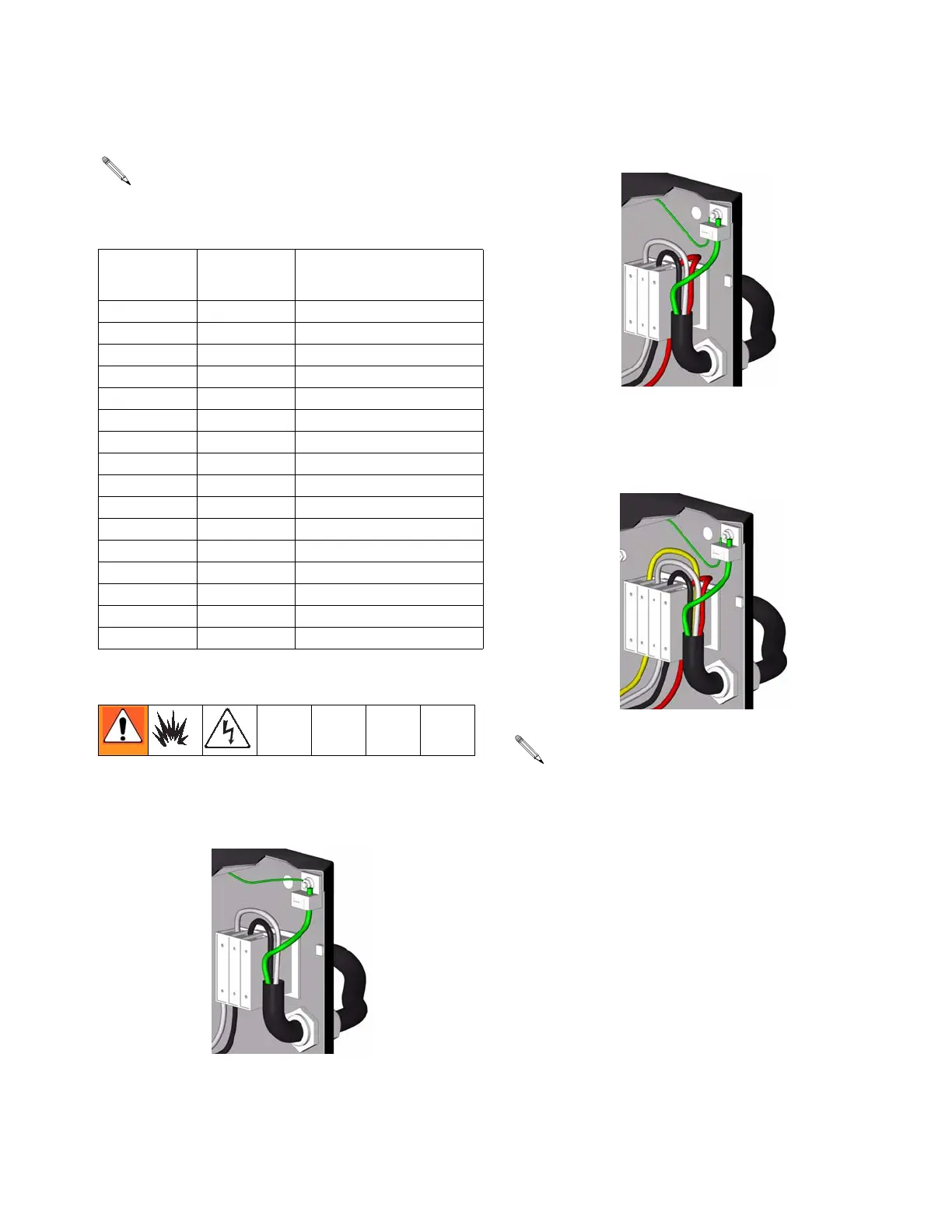

3. Connect electrical cord
Table 2: Power Cord Requirements
a. 230V, 1 phase: Using 5/32 or 4 mm hex allen
wrench, connect two power leads to L1 and L2.
Connect green to ground (GND).
b. 230V, 3 phase: Using 5/32 or 4 mm hex allen
wrench, connect three power leads to L1, L2,
and L3. Connect green to ground (GND).
c. 380V, 3 phase: Using 5/32 or 4 mm hex allen
wrench, connect three power leads to L1, L2,
and L3. Connect neutral to N. Connect green to
ground (GND).
Power cord is not supplied. See Table 2.
Part Model
Cord Specification
AWG (mm
2
)
253400 H-40 4 (21.2), 2 wire + ground
253401 H-40 4 (21.2), 3 wire + ground
253402 H-40 8 (8.4), 4 wire + ground
253404 H-XP3 4 (21.2), 3 wire + ground
253405 H-XP3 6 (13.3), 4 wire + ground
253407 H-40 4 (21.2), 3 wire + ground
253408 H-40 6 (13.3), 4 wire + ground
255400 H-25 4 (21.2), 2 wire + ground
255401 H-25 8 (8.4), 3 wire + ground
255402 H-25 8 (8.4), 4 wire + ground
255403 H-XP2 4 (21.2), 2 wire + ground
255404 H-XP2 6 (13.3), 3 wire + ground
255405 H-XP2 8 (8.4), 4 wire + ground
255406 H-25 4 (21.2), 2 wire + ground
255407 H-25 6 (13.3), 3 wire + ground
255408 H-25 8 (8.4), 4 wire + ground
L1
L2
GND
ti2515b
Some 3-phase models utilize a 3-phase motor. The
motor must rotate counterclockwise when viewed
from shaft end. To reverse rotation, disconnect
power and reverse power leads L1 and L2.
L1
L2
GND
ti3248b
L3
L1
L2
GND
ti2725a
L3
N
