Graco Reactor H-40 - Typical Installation, with Circulation

Typical Installation, with circulation
12
Typical Installation, with circulation
Key for FIG.1
A Reactor Proportioner
B Heated Hose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E Fusion Spray Gun
F Gun Air Supply Hose
G Feed Pump Air Supply Lines
J Fluid Supply Lines
K Feed Pumps
L Agitator
M Desiccant Dryer
P Gun Fluid Manifold (part of gun)
R Circulation Lines

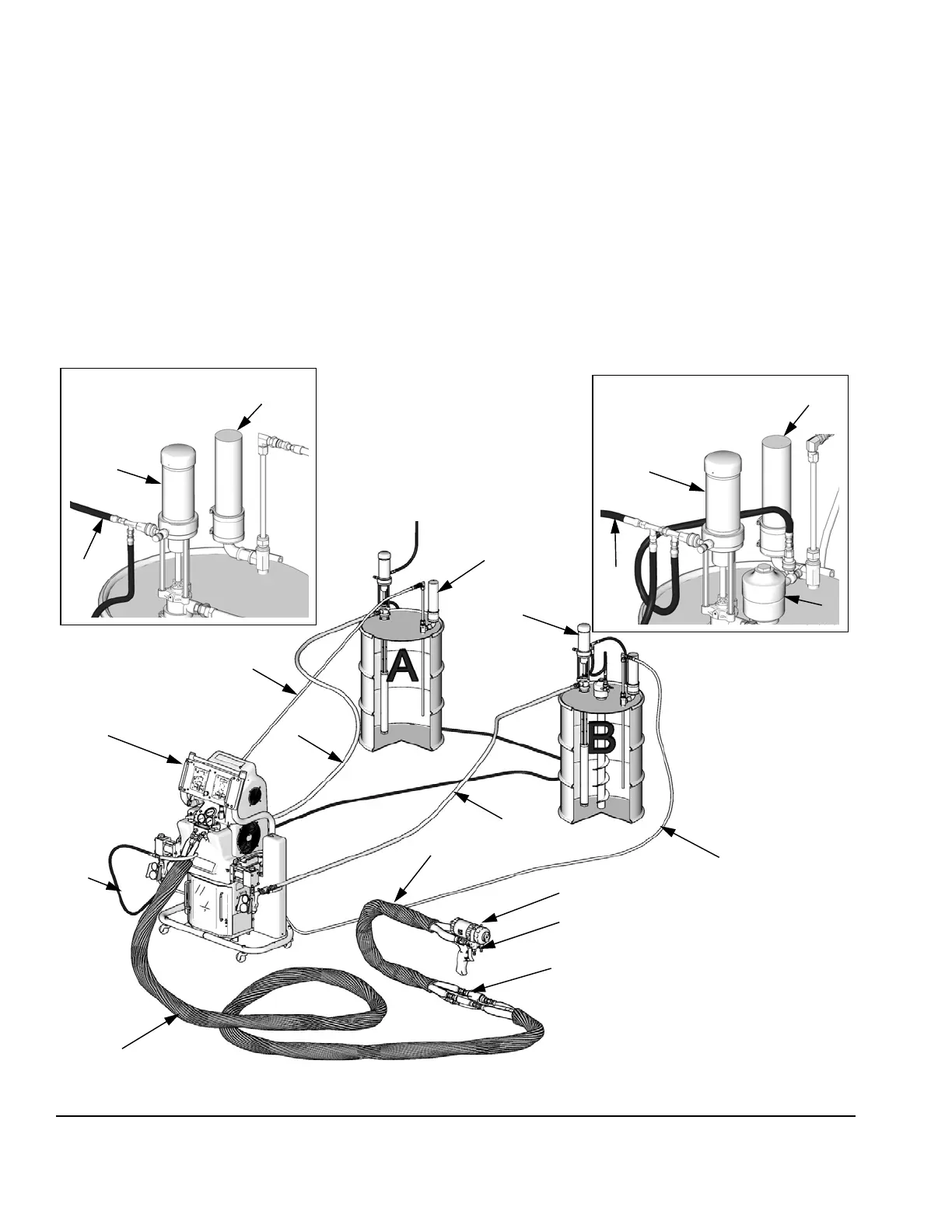

FIG. 1: Typical Installation, with circulation
B
C*
D
E
F
K
J
ti7820a 3
* Shown exposed for clarity.
Wrap with tape during operation.
J
A
G
K
K
M
P
R
R
A Side Supply Detail
L
G
K
M
B Side Supply Detail
ti7820a 2
ti10000a
