Graco Reactor H-40 - Typical Installation, Without Circulation

Typical Installation, without circulation
13
Typical Installation, without circulation
Key for FIG.2
A Reactor Proportioner
B Heated Hose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E Fusion Spray Gun
F Gun Air Supply Hose
G Feed Pump Air Supply Lines
H Waste Containers
J Fluid Supply Lines
K Feed Pumps
L Agitator
M Desiccant Dryer
N Bleed Lines
P Gun Fluid Manifold (part of gun)

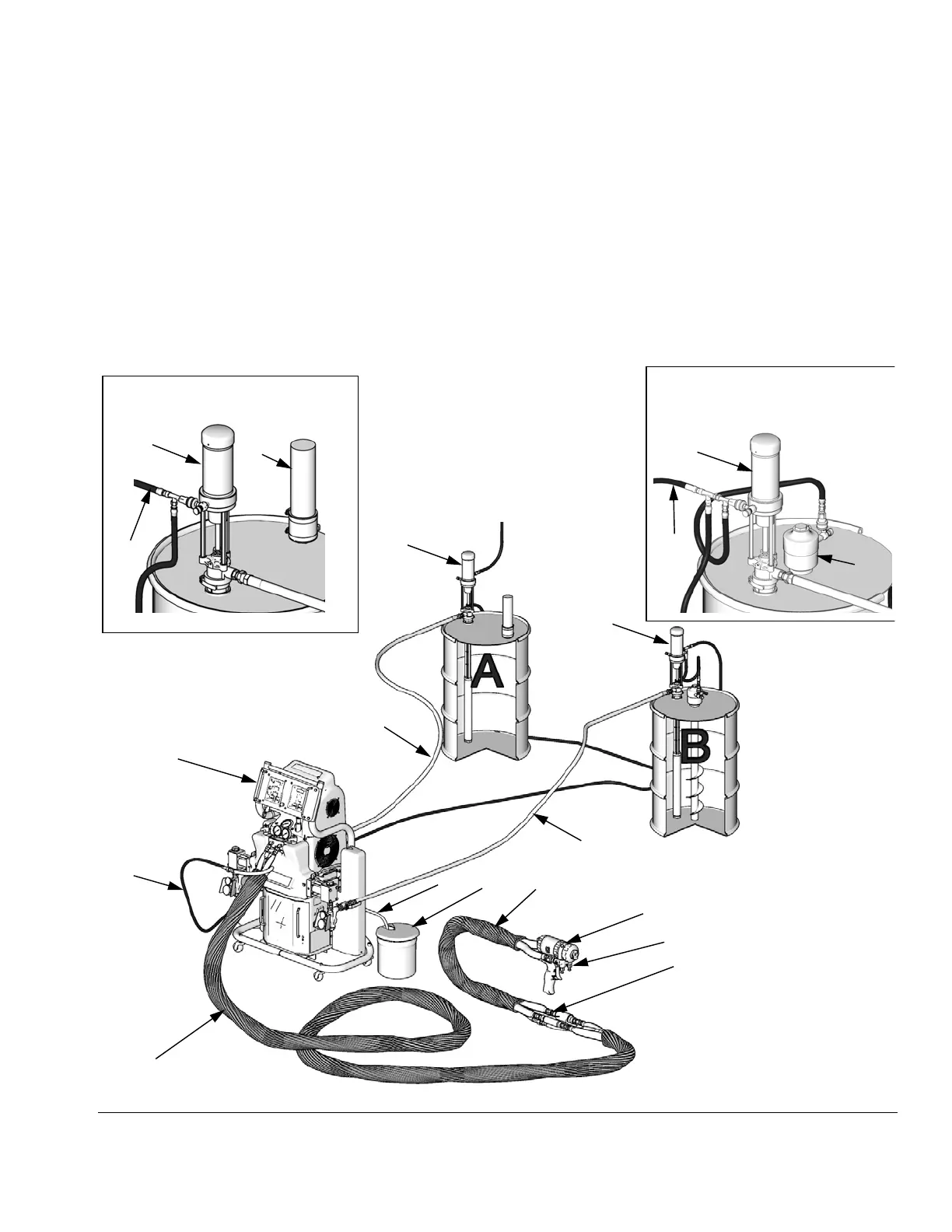

FIG. 2: Typical Installation, without circulation
B
C*
D
E
F
K
J
ti7821a 3
* Shown exposed for clarity.
Wrap with tape during operation.
J
A
K
P
N
H
L
G
K
B Side Supply Detail
G
K
M
A Side Supply Detail
ti7821a 2
ti10001a
