Graco Reactor H-40 - Circuit Breakers

Temperature Controls and Indicators
18

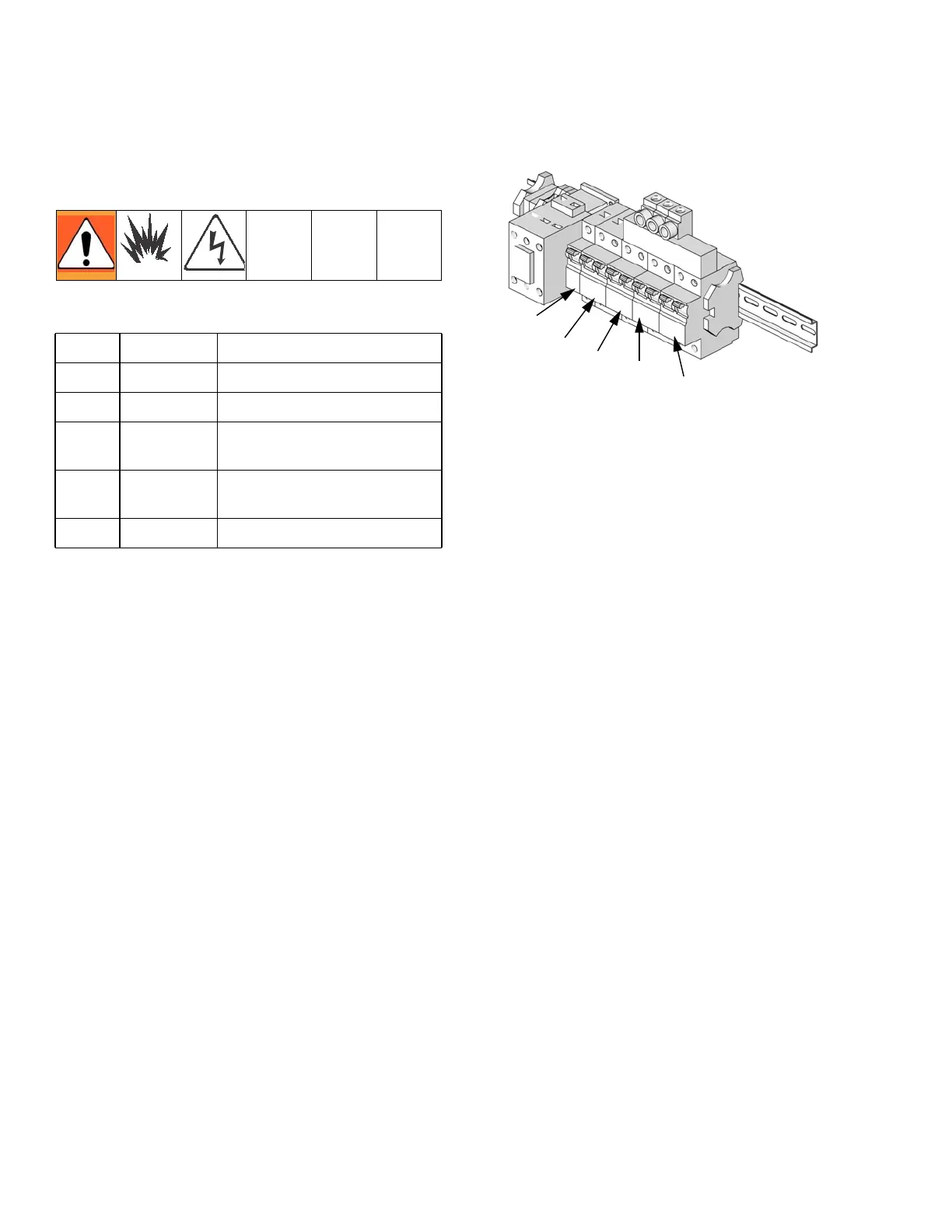

Circuit Breakers
Located inside Reactor cabinet.
* Depending on model.
Ref. Size Component
CB1 50 A Hose/Transformer Secondary
CB2 40 A Transformer Primary
CB3 25, 40, or
50 A*
Heater A
CB4 25, 40, or
50 A*
Heater B
CB5 20 or 30 A* Motor/Pumps
ti9884a
CB3
CB4
CB5
CB1
CB2
For wiring and cabling, see repair manual 312063.
