Graco Reactor H-40 - Temperature Controls and Indicators; Main Power Switch; Red Stop Button; Actual Temperature Key;Led

Temperature Controls and Indicators
16
Temperature Controls and Indicators
Main Power Switch
Located on right side of unit, page 15. Turns
Reactor power ON and OFF .
Does not turn heater zones or pumps on.
Red Stop Button
Located between temperature control panel
and motor control panel, page 15. Press
to shut off motor and heater zones only.
Use main power switch to shut off all power to
unit.
Actual Temperature Key/LED
Press to display actual temperature.
F

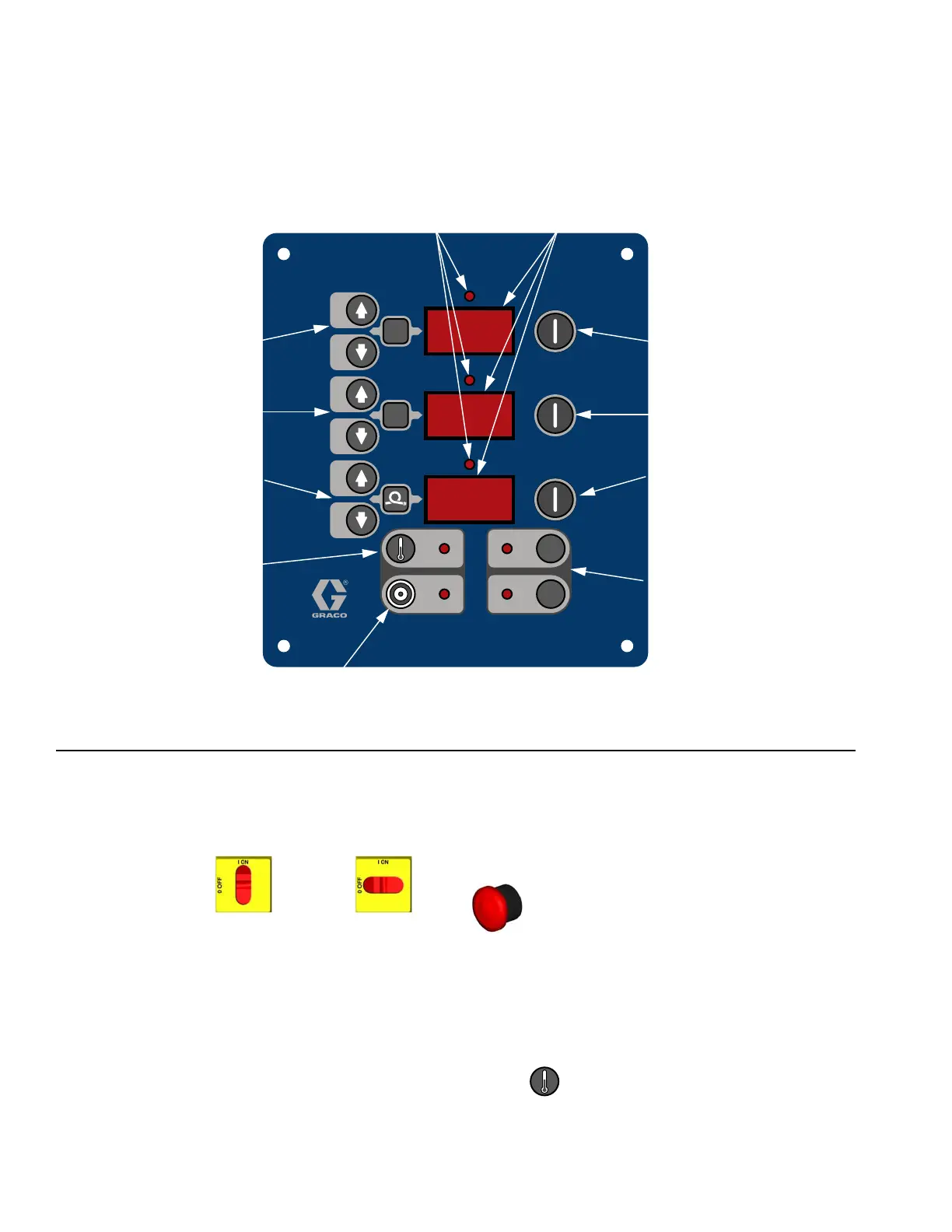

IG. 4. Temperature Controls and Indicators
°
F
°
C
A
B
Zone A Arrow Keys
Zone B Arrow Keys
Hose Zone Arrow Keys
Temperature Scale
Keys
Heater A On/Off
Key
Heater Power Indicators
Target Temperature Key
Actual Temperature
Key
Heater Displays
Hose Heater On/Off
Key
Heater B On/Off
Key
