Motor Controls and Indicators
19
Motor Controls and Indicators
Motor ON/OFF Key/LED
Press to turn motor ON and OFF. Also
clears some motor control diagnostic codes,
see page 39.
PARK Key/LED
Press at end of day to cycle component
A pump to home position, submerging dis-
placement rod. Trigger gun until pump stops.
Once parked, motor will automatically shut off.
PSI/BAR Keys/LEDs
Press or to change pressure scale.
Pressure Key/LED
Press to display fluid pressure.

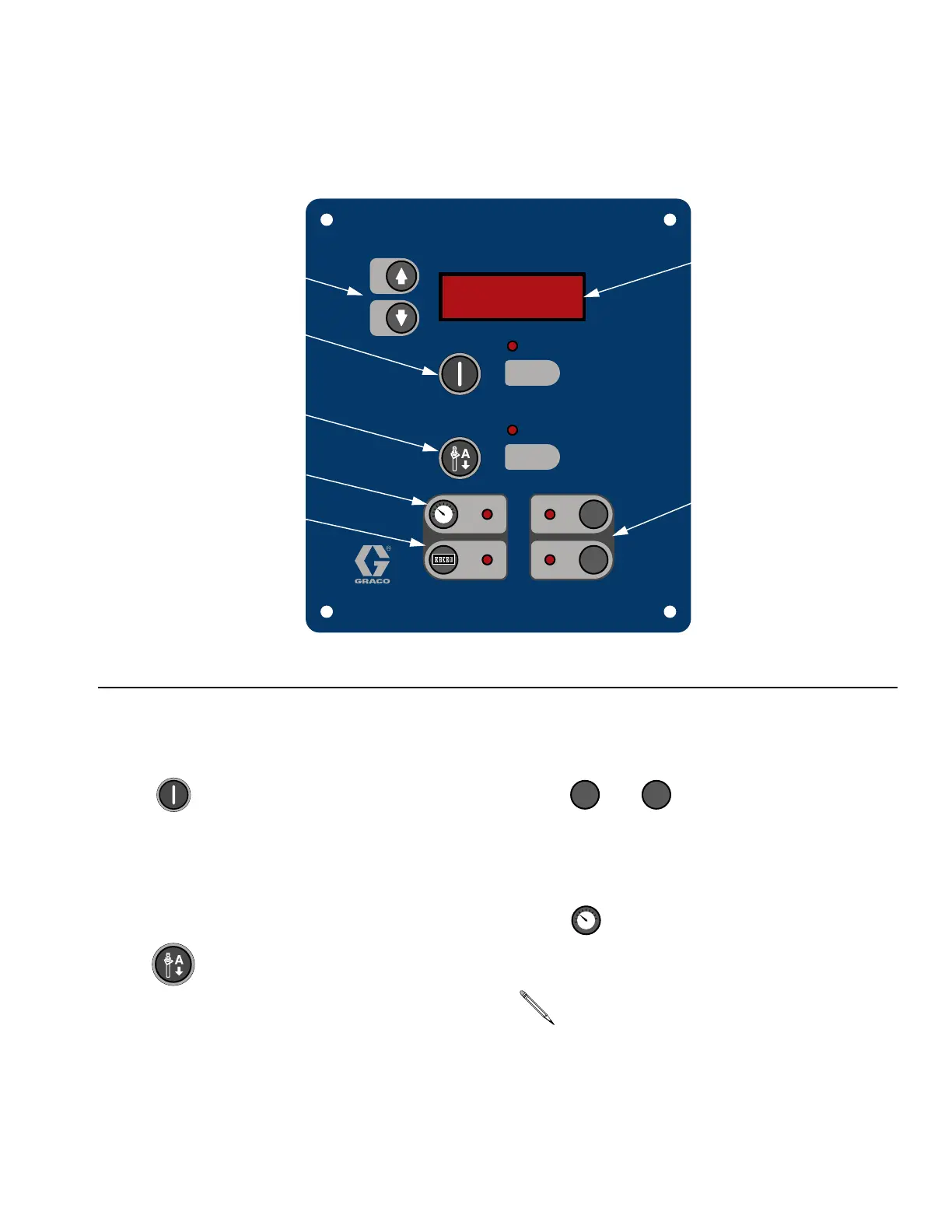

FIG. 5. Motor Controls and Indicators
PSI
BAR
ON / OFF
PARK
PSI/BAR Keys
Cycle Count Key
Pressure/Cycle Display
Pressure Key
Motor ON/OFF Key
PARK Key
Arrow Keys
If pressures are imbalanced, display
shows higher of two pressures.
PSI
BAR
