Performance Charts
47

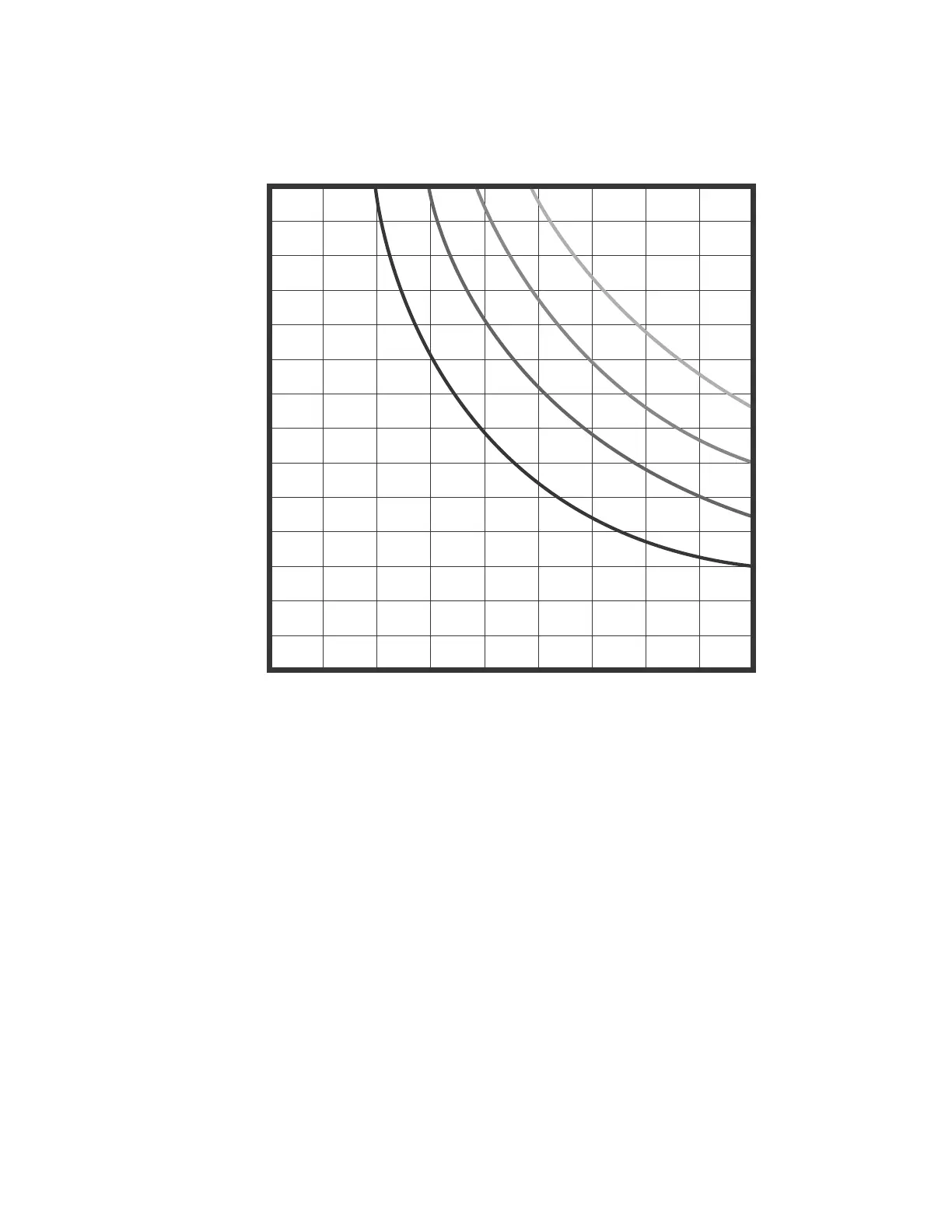

Heater Performance Chart
Flow Rate in gpm (lpm)
Delta T in degrees F (degrees C)
0
0.5
(1.9)
2.0
(7.6)
1.0
(3.8)
2.5
(9.5)
1.5
(5.7)
4.0
(15.1)
3.0
(11.4)
3.5
(13.2)
4.5
(17.0)
KEY
J=8kW
K=12kW
L=15.3kW
M=20.4kW
10
(6)
90
(50)
80
(44)
70
(39)
60
(33)
50
(28)
40
(22)
30
(17)
20
(11)
140
(78)
130
(72)
120
(67)
110
(61)
100
(56)
J
K
L
M
★ Heater performance data is based on testing with 10 wt.
hydraulic oil and 230V across heater power wires.
