Setup
3A2776K 21
Connect Feed Module Lines to
Sprayer Module
1. Connect Modules, page 18.
2. Connect the large diameter green hose from each
tank bottom outlet to the respective metering pump
inlet. Hose (1403) is for side by side setup and hose
(1413) is for front to back configurations.
NOTE: There is a vertical swivel union at each end of
the green hose assembly.
NOTE: If desired, the green hose can be trimmed to fit
better.
a. Loosen the tank end of the hose before trying to
connect to the metering pump inlet.
b. Bend the hose as necessary to make it fit.
c. Once the vertical unions are tightened, check
that the hose clamps on the green hose are
tightened to approximately 90-100 in-lb
(10-11 N•m).
3. Connect the two hose bundles with a red air hose
on the sprayer module to the correct connection on
the respective feed module, as described below.
a. Connect the red 1/2 in. air hose to the swivel
union. See the ‘a’ in F
IG. 15.
b. Connect the 1/4 in. OD air signal tube to the
tube that has a tube connector. This is the feed
pump pilot signal. See the ‘b’ in F
IG. 15.
c. Connect the small cable with an M8 connector
to the mating M8 connector. See the ‘c’ in F
IG.
15.
d. Connect the larger cable with an M12 connector
to the mating M12 connector. This is the level
sensor connection. See the ‘d’ in F
IG. 15.

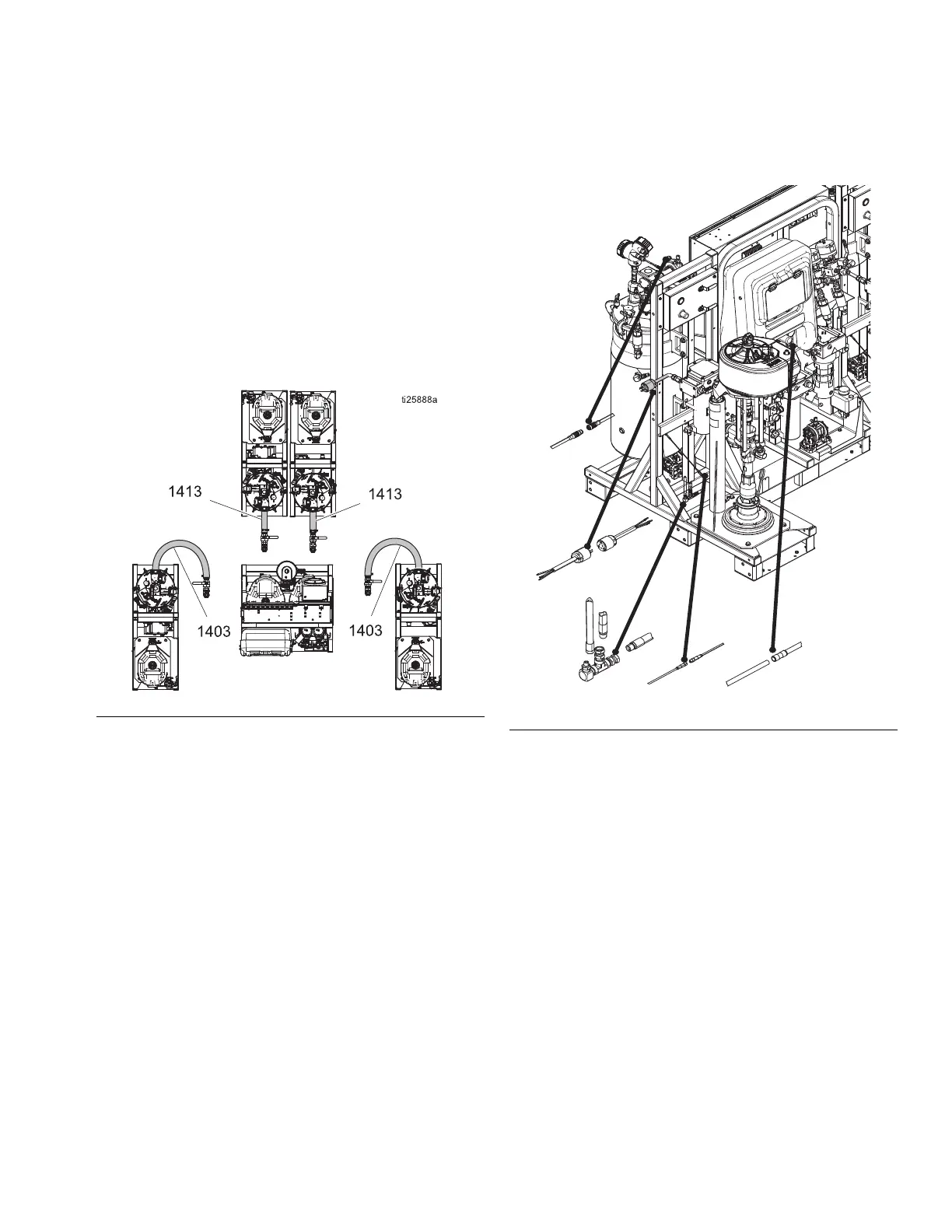

FIG. 14: Feed Module Lines
FIG. 15
b
d
To Next Page
