Appendix A - User Interface Display
70 3A2776K
System Setup Screens
System Setup enables users to configure system
settings for fluid control and operator interaction. Refer
to the following table for details.
Some system settings must be enabled from the Enable
Setup screens before users can change or set
configurations. See Enable Setup Screens, page 72,
for instructions.

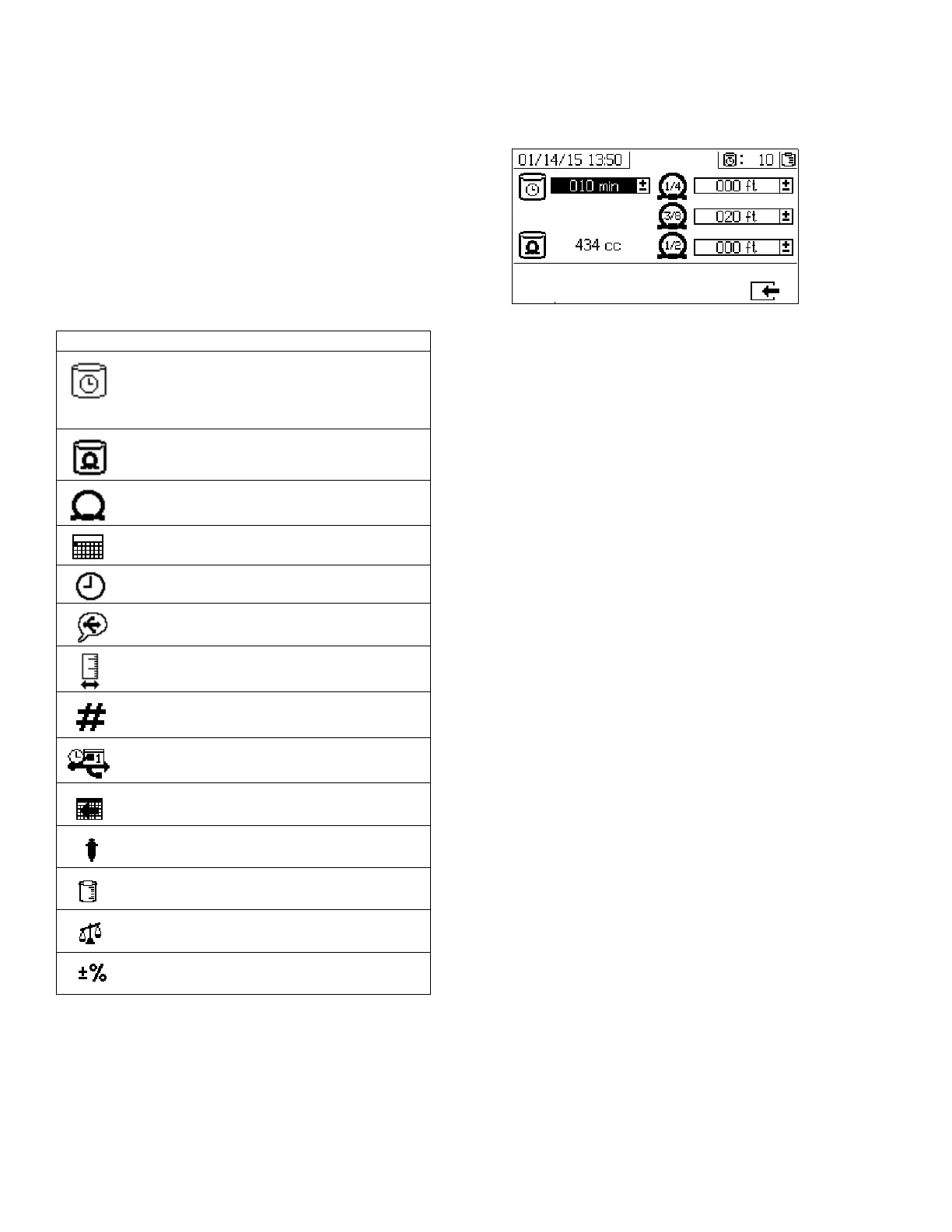

Potlife/Hose Length
This screen enables users to set the potlife timer, and
length of each mixed material hose specific to the
system. The total mixed material volume is then
calculated and displayed on the page. The potlife time
displays in the upper right corner.
When the fluid flow stops the displayed potlife time
counts down in one minute intervals. The timer
automatically resets when the calculated mixed fluid
volume is dispensed.
Icon Function
Set number of minutes before mixed
material will set in hose. Resets after
material volume set by user is passed
through hose.
Indicates total hose volume. Always
displayed in cc units.
Set length of hose after mix manifold. Used
to indicated total hose volume.
Set calendar date and format.
Set time.
Set USB language.
Set units of measurement desired for
display, such as fluid and temperature.
Set sprayer number if using more than one
sprayer.
Set how often data will record to USB ratio
and spray logs.
Set number of hours of recorded data to
download to USB flash drive.
Set the A and B side metering pump sizes.
Volume ratio reference
Weight ratio reference
Ratio Pass Tolerance
To Next Page
