Color Change
104 312779E
NOTES:
* F IG . 118 and F IG . 119 show both color and catalyst change. If the color or catalyst is not changing, disregard that
portion of the chart.
** F IG . 120 and F IG . 121 show color change. If the color is not changing, disregard that portion of the chart.
F
IG . 122 (page 111) shows a recipe change with Special Outputs.
F
IG . 124 (page 112) shows an External Color Change.

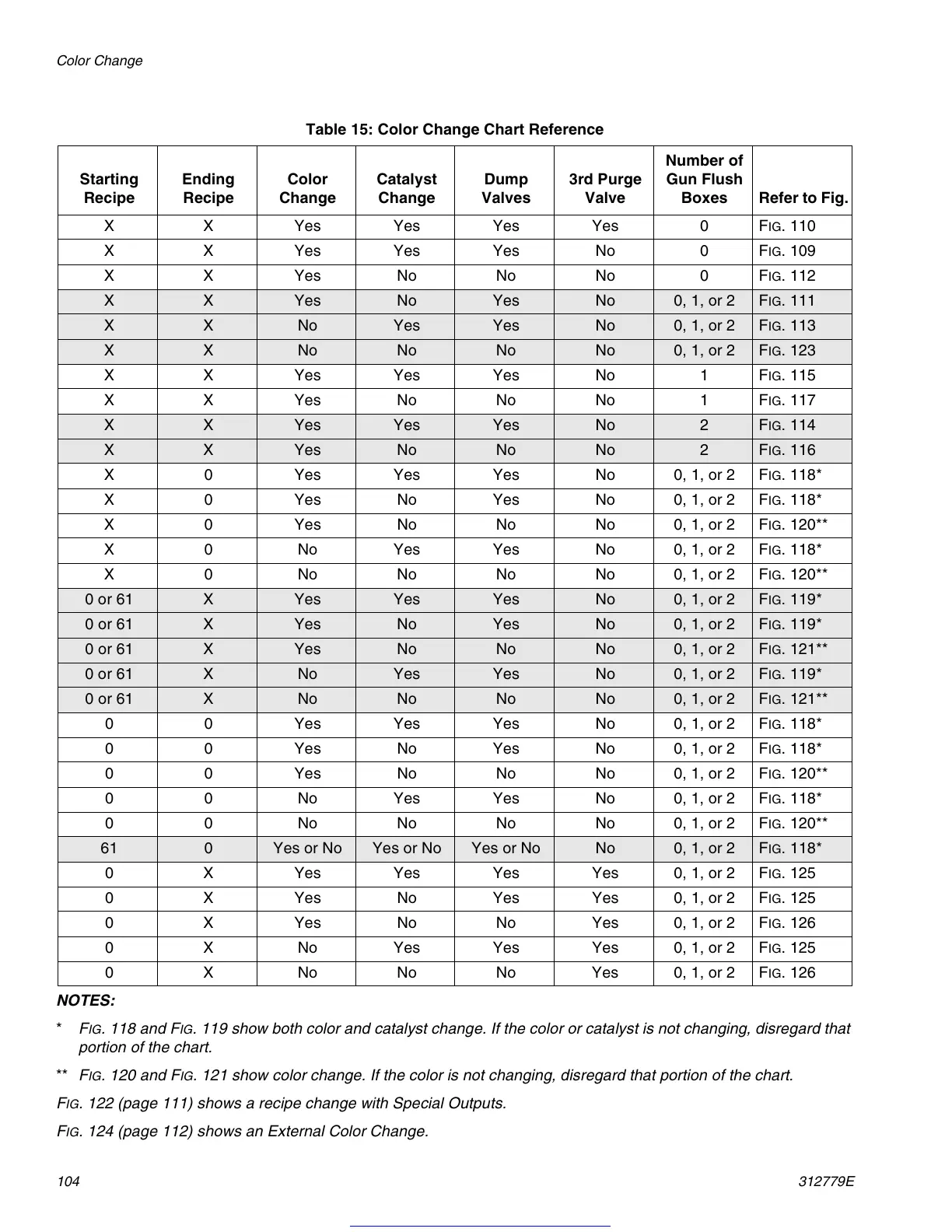

Table 15: Color Change Chart Reference
Starting
Recipe
Ending
Recipe
Color
Change
Catalyst
Change
Dump
Valves
3rd Purge
Valve
Number of
Gun Flush
Boxes Refer to Fig.
X X Yes Yes Yes Yes 0 F IG . 110
X X Yes Yes Yes No 0 F IG . 109
X X Yes No No No 0 F IG . 112
X X Yes No Yes No 0, 1, or 2 F IG . 111
X X No Yes Yes No 0, 1, or 2 F IG . 113
X X No No No No 0, 1, or 2 F IG . 123
X X Yes Yes Yes No 1 F
IG . 115
XXYesNoNoNo1F
IG . 117
X X Yes Yes Yes No 2 F IG . 114
X X Yes No No No 2 F IG . 116
X 0 Yes Yes Yes No 0, 1, or 2 F
IG . 118*
X 0 Yes No Yes No 0, 1, or 2 F
IG . 118*
X 0 Yes No No No 0, 1, or 2 F
IG . 120**
X 0 No Yes Yes No 0, 1, or 2 F
IG . 118*
X 0 No No No No 0, 1, or 2 F
IG . 120**
0 or 61 X Yes Yes Yes No 0, 1, or 2 F IG . 119*
0 or 61 X Yes No Yes No 0, 1, or 2 F IG . 119*
0 or 61 X Yes No No No 0, 1, or 2 F IG . 121**
0 or 61 X No Yes Yes No 0, 1, or 2 F IG . 119*
0 or 61 X No No No No 0, 1, or 2 F IG . 121**
0 0 Yes Yes Yes No 0, 1, or 2 F
IG . 118*
0 0 Yes No Yes No 0, 1, or 2 F
IG . 118*
0 0 Yes No No No 0, 1, or 2 F
IG . 120**
0 0 No Yes Yes No 0, 1, or 2 F
IG . 118*
0 0 No No No No 0, 1, or 2 F
IG . 120**
61 0 Yes or No Yes or No Yes or No No 0, 1, or 2 F IG . 118*
0 X Yes Yes Yes Yes 0, 1, or 2 F
IG . 125
0 X Yes No Yes Yes 0, 1, or 2 F
IG . 125
0 X Yes No No Yes 0, 1, or 2 F
IG . 126
0 X No Yes Yes Yes 0, 1, or 2 F
IG . 125
0 X No No No Yes 0, 1, or 2 F
IG . 126
