Setup Mode
36 312779E

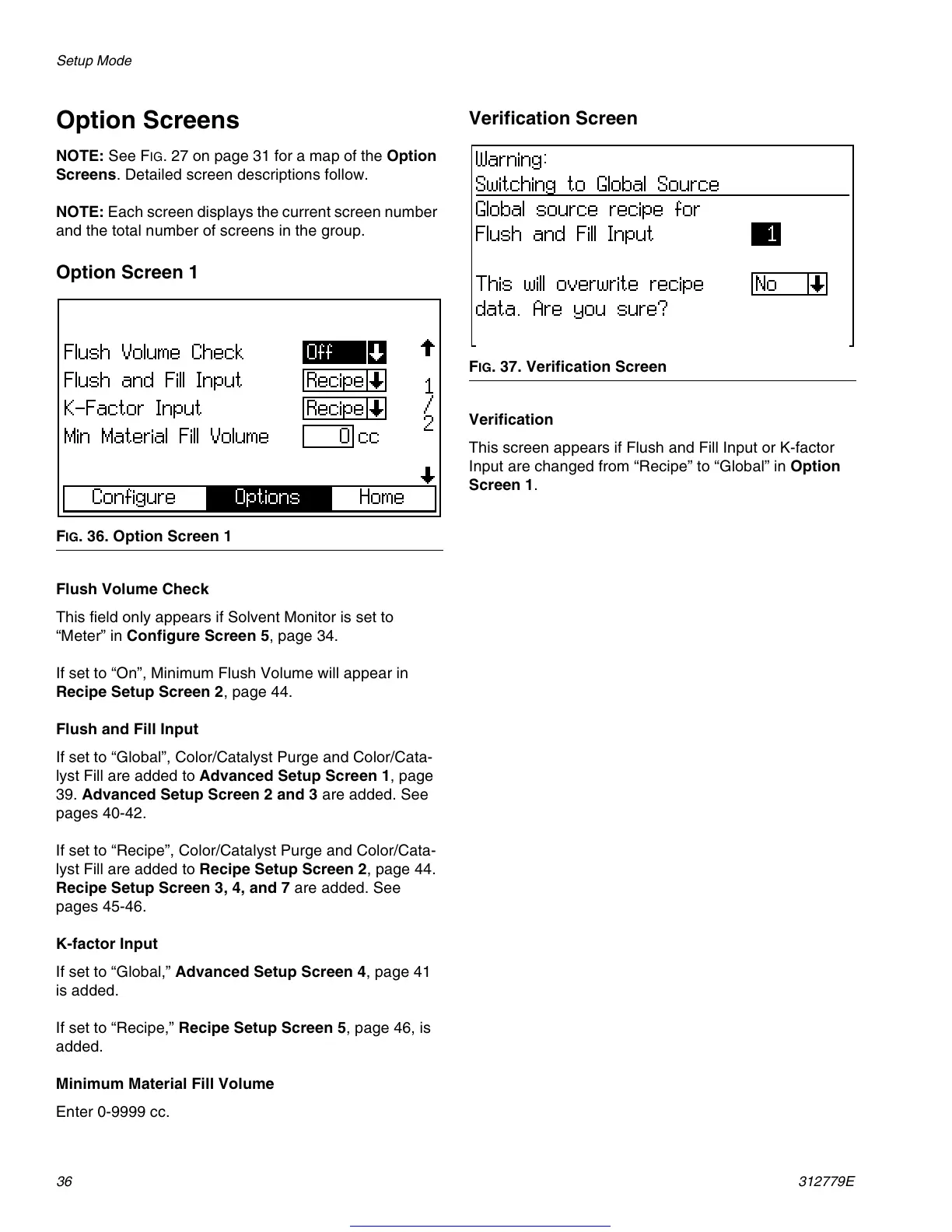

Option Screens
NOTE: See F
IG
. 27 on page 31 for a map of the Option
Screens. Detailed screen descriptions follow.
NOTE: Each screen displays the current screen number
and the total number of screens in the group.
Option Screen 1
Flush Volume Check
This field only appears if Solvent Monitor is set to
“Meter” in Configure Screen 5, page 34.
If set to “On”, Minimum Flush Volume will appear in
Recipe Setup Screen 2, page 44.
Flush and Fill Input
If set to “Global”, Color/Catalyst Purge and Color/Cata-
lyst Fill are added to Advanced Setup Screen 1, page
39. Advanced Setup Screen 2 and 3 are added. See
pages 40-42.
If set to “Recipe”, Color/Catalyst Purge and Color/Cata-
lyst Fill are added to Recipe Setup Screen 2, page 44.
Recipe Setup Screen 3, 4, and 7 are added. See
pages 45-46.
K-factor Input
If set to “Global,” Advanced Setup Screen 4, page 41
is added.
If set to “Recipe,” Recipe Setup Screen 5, page 46, is
added.
Minimum Material Fill Volume
Enter 0-9999 cc.
Verification Screen
Verification
This screen appears if Flush and Fill Input or K-factor
Input are changed from “Recipe” to “Global” in Option
Screen 1.
F
IG
. 36. Option Screen 1
F
IG
. 37. Verification Screen
