Overview
312779E 19

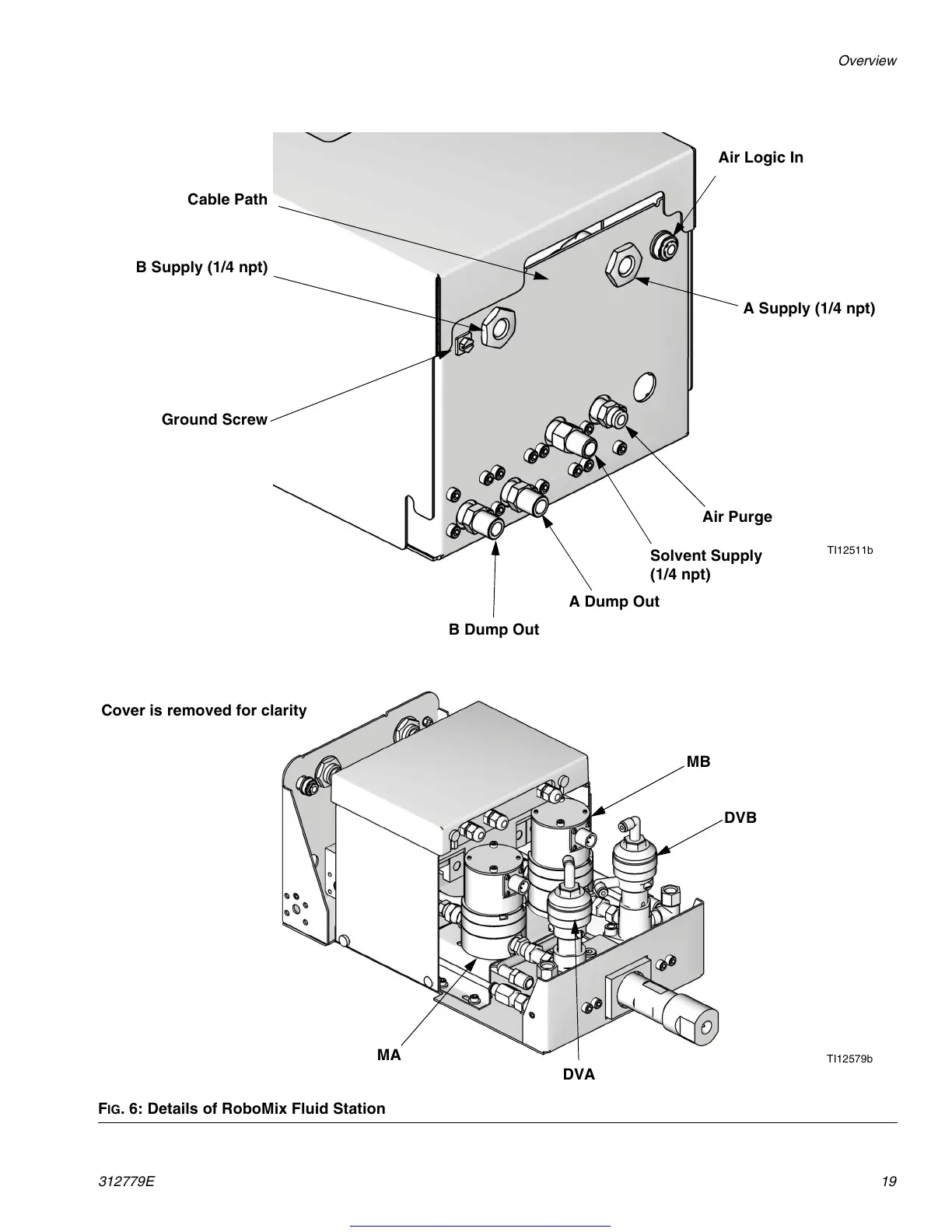

F IG . 6: Details of RoboMix Fluid Station
Cover is removed for clarity
MA
MB
A Supply (1/4 npt)
B Supply (1/4 npt)
Solvent Supply
(1/4 npt)
Air Purge
Cable Path
Air Logic In
A Dump Out
B Dump Out
TI12511b
TI12579b
Ground Screw
DVB
DVA
