Setup Mode
42 312779E

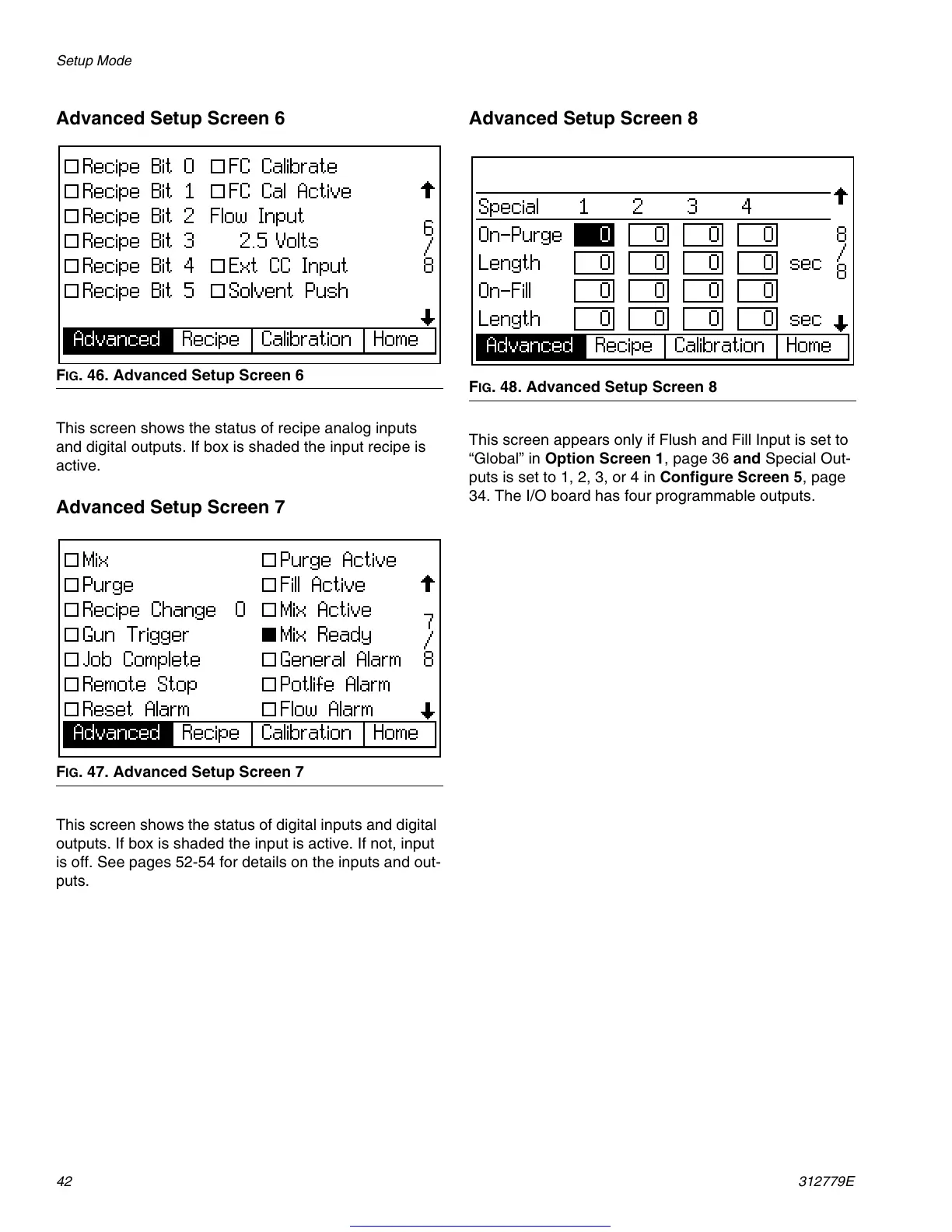

Advanced Setup Screen 6
This screen shows the status of recipe analog inputs
and digital outputs. If box is shaded the input recipe is
active.
Advanced Setup Screen 7
This screen shows the status of digital inputs and digital
outputs. If box is shaded the input is active. If not, input
is off. See pages 52-54 for details on the inputs and out-
puts.
Advanced Setup Screen 8
This screen appears only if Flush and Fill Input is set to
“Global” in Option Screen 1, page 36 and Special Out-
puts is set to 1, 2, 3, or 4 in Configure Screen 5, page
34. The I/O board has four programmable outputs.
F
IG
. 46. Advanced Setup Screen 6
F
IG
. 47. Advanced Setup Screen 7
F
IG
. 48. Advanced Setup Screen 8
