ProMix 2KS Integration Specifics
56 312779E
Mixing Mode Process
See F IG . 66, Table 5, and Table 6.
F

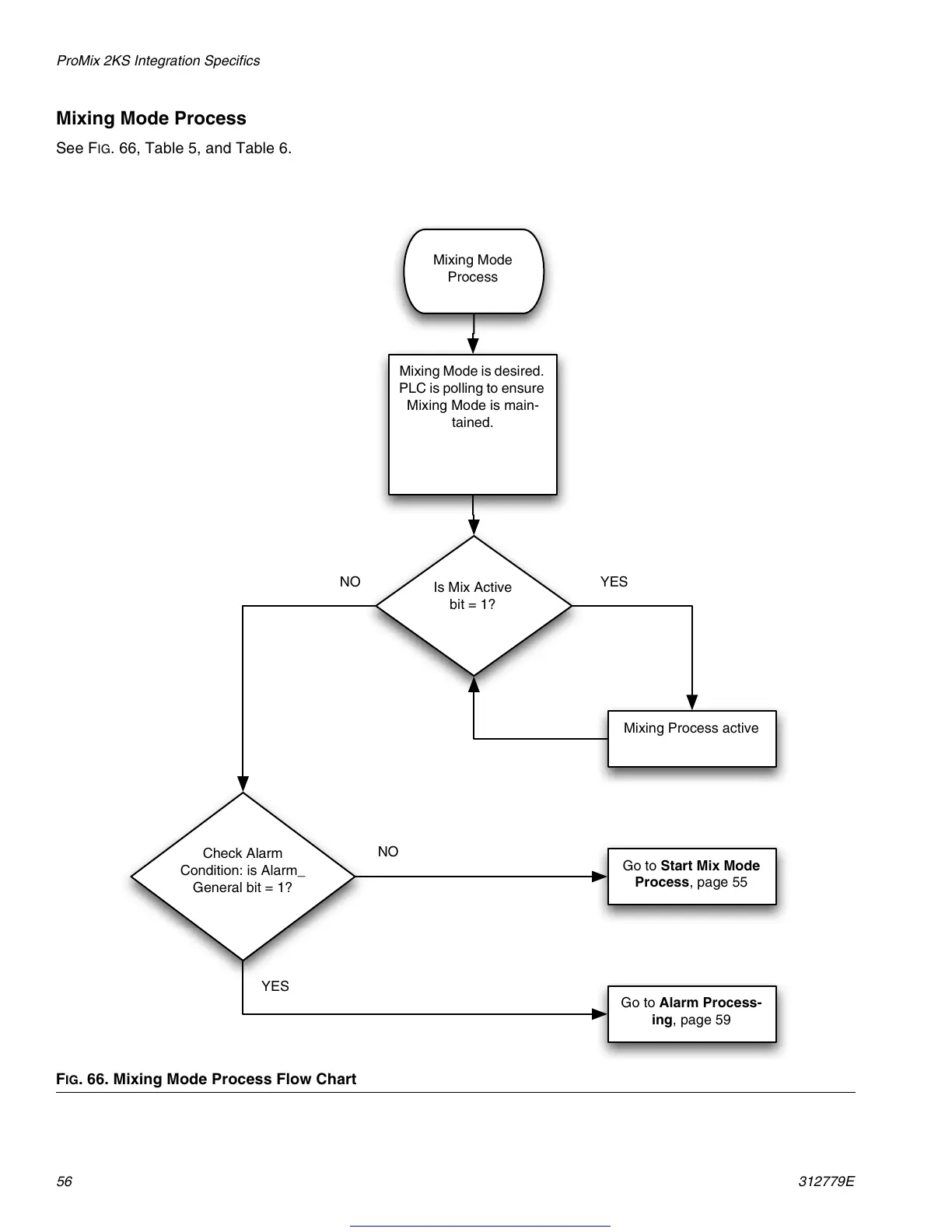

IG . 66. Mixing Mode Process Flow Chart
Mixing Mode
Process
Is Mix Active
bit = 1?
Check Alarm
Condition: is Alarm_
General bit = 1?
YESNO
NO
YES
Mixing Mode is desired.
PLC is polling to ensure
Mixing Mode is main-
tained.
Mixing Process active
Go to Start Mix Mode
Process, page 55
Go to Alarm Process-
ing, page 59
