System Operation
84 312779E

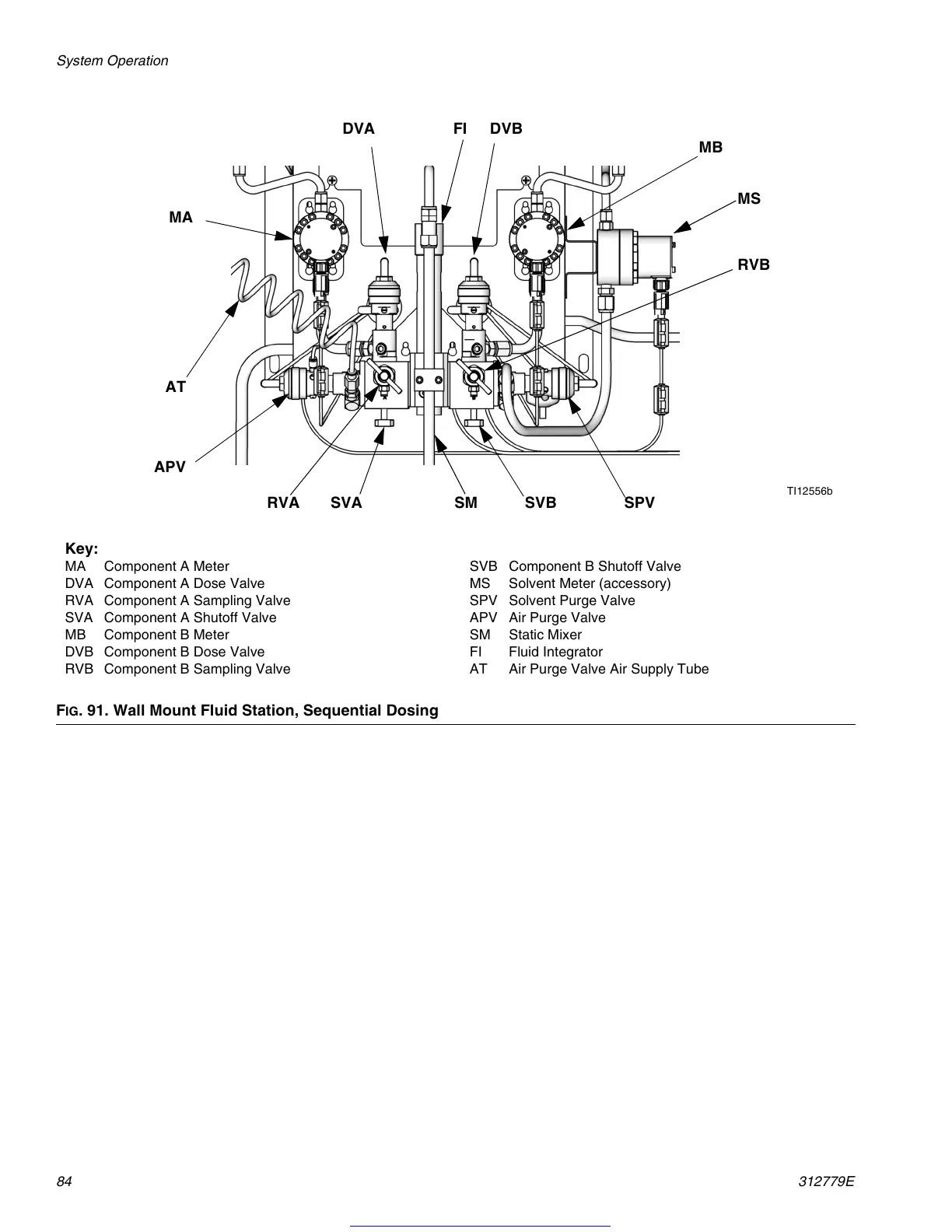

F IG . 91. Wall Mount Fluid Station, Sequential Dosing
TI12556b
MA
MB
DVB
MS
SPV
DVA
SM
FI
SVA SVB
RVB
RVA
Key:
MA Component A Meter
DVA Component A Dose Valve
RVA Component A Sampling Valve
SVA Component A Shutoff Valve
MB Component B Meter
DVB Component B Dose Valve
RVB Component B Sampling Valve
SVB Component B Shutoff Valve
MS Solvent Meter (accessory)
SPV Solvent Purge Valve
APV Air Purge Valve
SM Static Mixer
FI Fluid Integrator
AT Air Purge Valve Air Supply Tube
APV
AT
