Graco TrueCoat 360 VSP User Manual

Setup
12 3A9014A

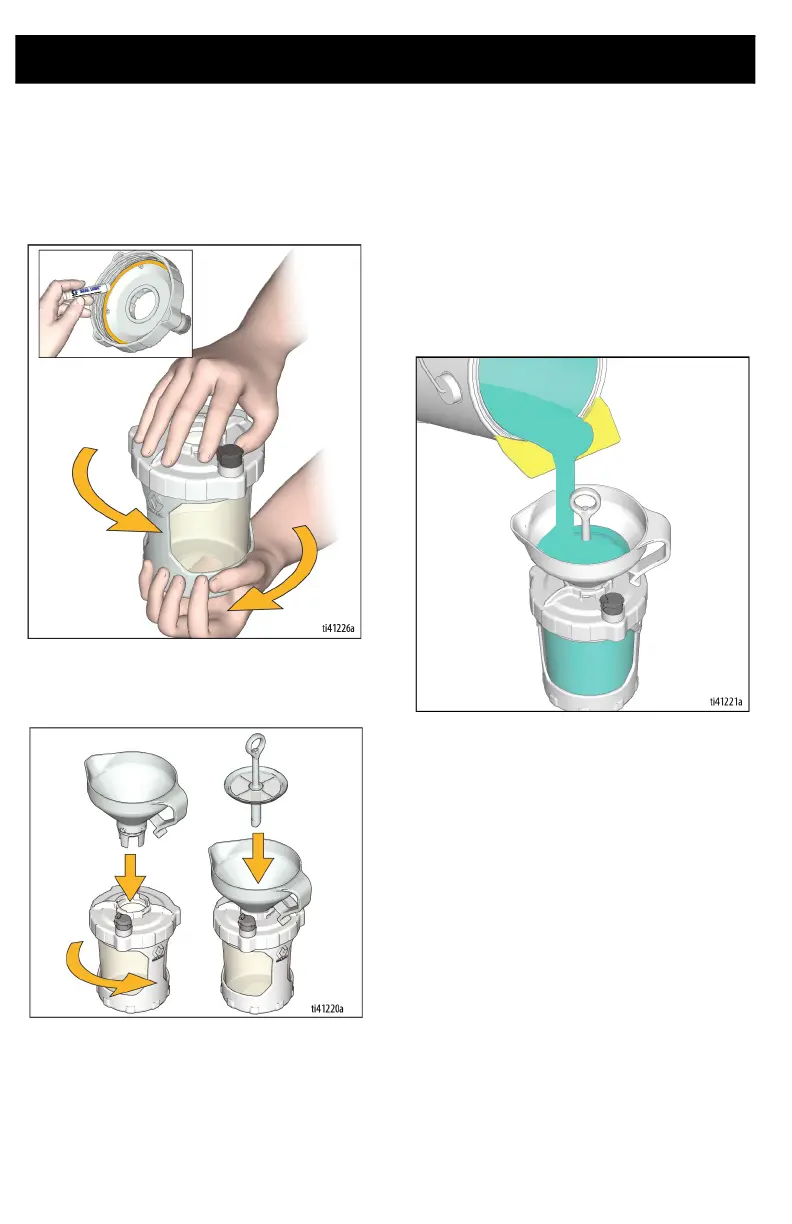

2. Firmly tighten the Cup Lid onto the Cup
Support to ensure an airtight seal.
NOTE: To ensure an airtight seal, the gasket
inside the Cup Lid is lubricated by the factory.
If lubrication has washed away, apply Seal
Lube (included) to the gasket.
3. Insert the Funnel into the Cup Lid, twist
to lock. Snap the Strainer into the Funnel
to strain your paint as you fill your cup.
4. The Strainer’s Air Tube will prevent paint
from overfilling the cup. Fill the cup as
follows:
a. Watching the Funnel (not the cup),
slowly pour paint into the Funnel.
When the paint stops draining
down, the cup is full.
NOTE: If the paint stops draining but you see
the cup is not full, use a stir stick to scrape
the captured debris on the top of the Strainer
until the paint resumes draining.
Funnel
Strainer

Graco TrueCoat 360 VSP Specifications

General

Power Source	Electric
Adjustable Speed	Yes
Voltage	120V
Spray Pattern	Adjustable
Nozzle Sizes Included	1
Adjustable Pressure	Yes
Type	Airless
Tip Size	0.015 inches
Orifice Size	0.015 inches
Material	Plastic, Metal
Spray Tip Sizes Included	0.015 inch
