Grady-White 360 express - TV;DVD and Phone Diagram

360 EXPRESS
8–56

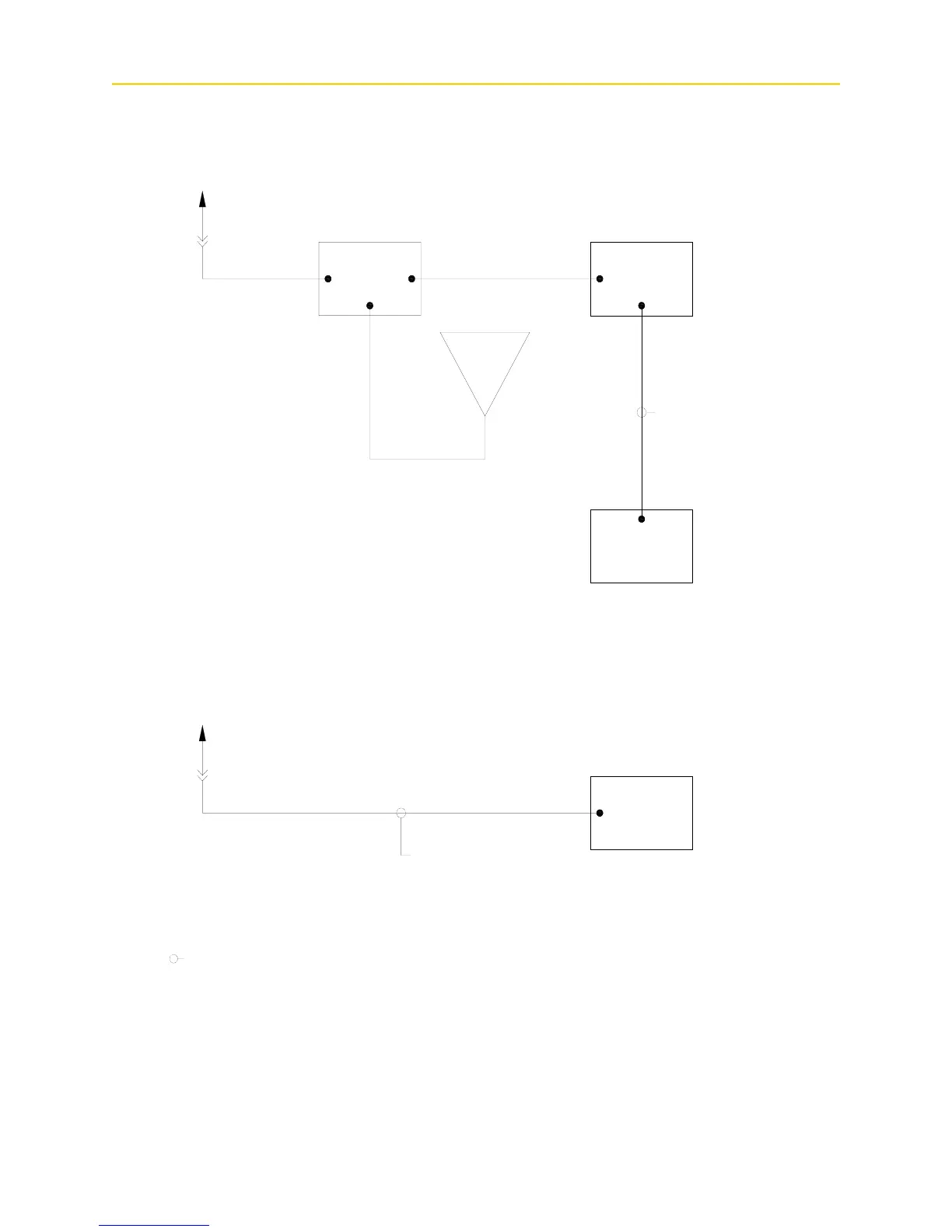

TV/DVD and Phone Diagram
LINE
NO.
NOTES:
1) INDICATES MULTI-CONDUCTOR CABLE
1.
2.
3.
4.
5.
SHORE CABLE
TV INLET
FLAT PANEL
TELEVISION
RG6 COAXIAL
A-B
SELECTOR
SWITCH
RG6 COAXIAL
BROADCAST
ANTENNA
RG6 COAXIAL
DVD PLAYER
WALL PHONE
JACK
SHORE PHONE
INLET
4C PHONE CABLE
3C RCA CABLE
360-TV-1
