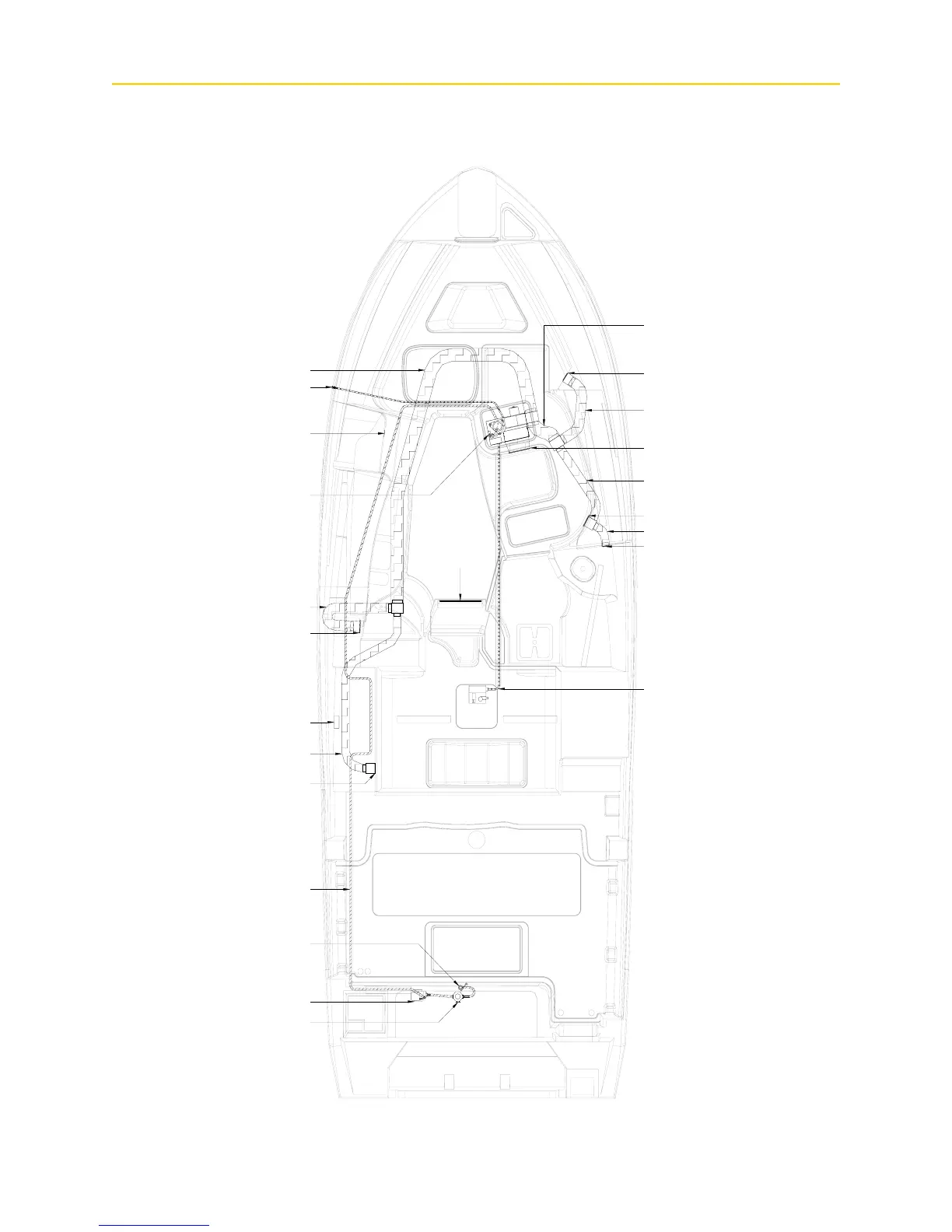

Air Conditioning Layout
Air Control Panel
IN
OUT
10 1/2" x 15" Return
Teak Grill & Duct
6" x 10" Teak Grill
4" x 8" Teak Grill
6" x 8" Teak Grill
AC/DC Panel
3" Round Vent
5" Insulated Duct
4" Insulated Duct
3" Insulated Duct
4" Insulated Duct
5" Insulated Duct
4" Teak Grill
4" Insulated Duct
3" Insulated Duct
Pump Relay
(accessed by panel in
stbd aft berth wall)
Water Pump
Water Strainer
Air Condition Seacock
(remote arm accessed
through the aft rigging
door behind folding seat)
Air Cond. Raw
Water Supply Hose
16,000 BTU Air
Conditioning Unit
(accessed by removing cover
board in forward dinette seat)
Air Condition Thru Hull
Condensation Drain to Sump
