Grady-White 360 express - AC;DC Panel Wiring - One-Line Diagram

360 EXPRESS
8–43

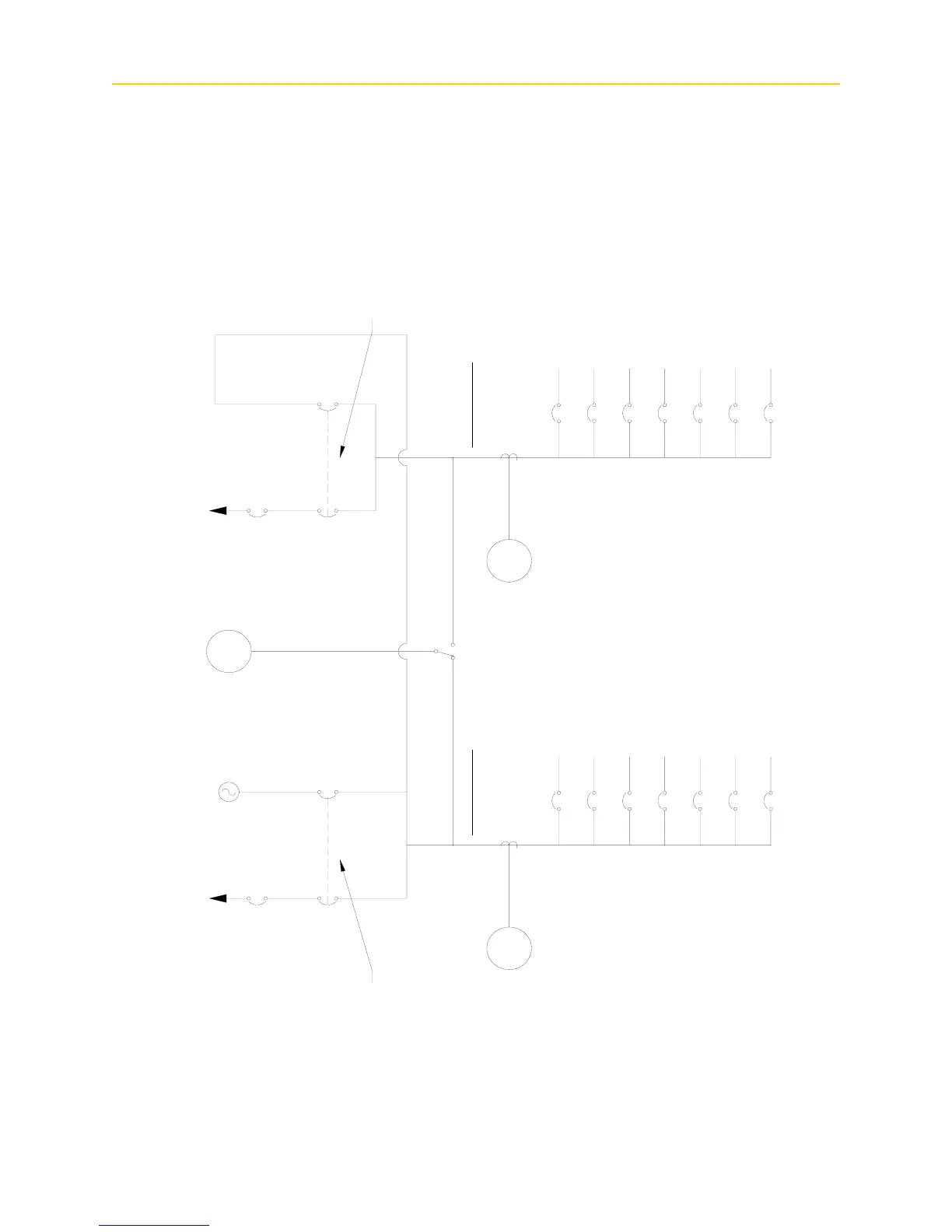

AC/DC Panel Wiring – One-Line Diagram
V
A A
SHORE # 1 SHORE # 2 TRANSFER
30A 30A70A 50A
XX
NOTE:
WHEN OPERATING FROM A
SINGLE POWER SOURCE
WITH THE TRANSFER
SWITCH ENGAGED, THE AMP
READINGS MUST BE ADDED
FOR PROPER LOAD
MANAGEMENT.
AC VOLTS
30A
MECHANICAL
INTERLOCK TO
PREVENT
SIMULTANEOUS
CLOSURE
MECHANICAL
INTERLOCK TO
PREVENT
SIMULTANEOUS
CLOSURE
AC AMPS AC AMPS
BATTERY CHARGER BOW THURSTER CHARGER MICROWAVE STOVE REFRIGERATOR GALLEY OUTLET ACCESSORY
AIR/COOLER PUMP COCKPIT COOLERS AIR COND WATER HEATER CABIN OUTLET HEAD OUTLET COCKPIT OUTLET
10A
5A
15A 25A 15A 15A 15A
5A
15A 30A 15A 15A 15A 15A
CURRENT TRANSFORMER
CURRENT TRANSFORMER
GENERATOR
(SELF LIMITING)
LOAD GROUP 1 LOAD GROUP 2
SPDT
30A
