Grady-White 360 express - Cockpit Coolers Layout

360 EXPRESS
8–28

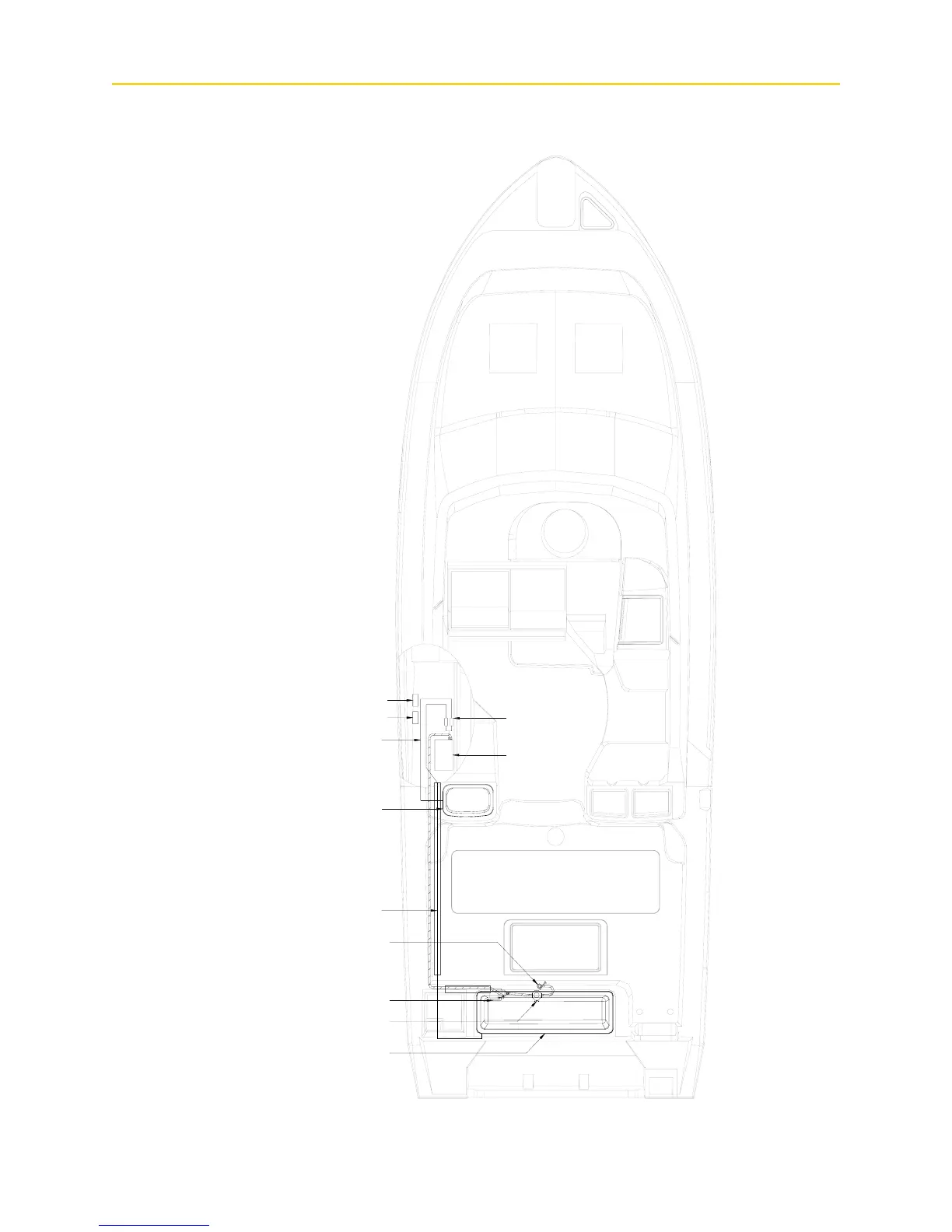

Cockpit Coolers Layout
Coolers
Condensing
Unit
Coolers Solenoid
Valves
1/4" Liquid Line &
3/8" Insulated Suction Line
1/4" Liquid Line &
3/8" Insulated Suction Line
IN
OUT
Water Pump
Water Strainer
Pump Relay (PR)
Refrigeration Relay (RR)
(access relays, solenoid valves,
and condensing unit by panel
in port aft berth wall panel)
Air Conditioner Seacock
(remote arm accessed
through the aft rigging
door behind folding seat)
Port Cockpit Cooler
Aft Fishbox
