Grady-White 360 express - Generator Layout

360 EXPRESS
8–36

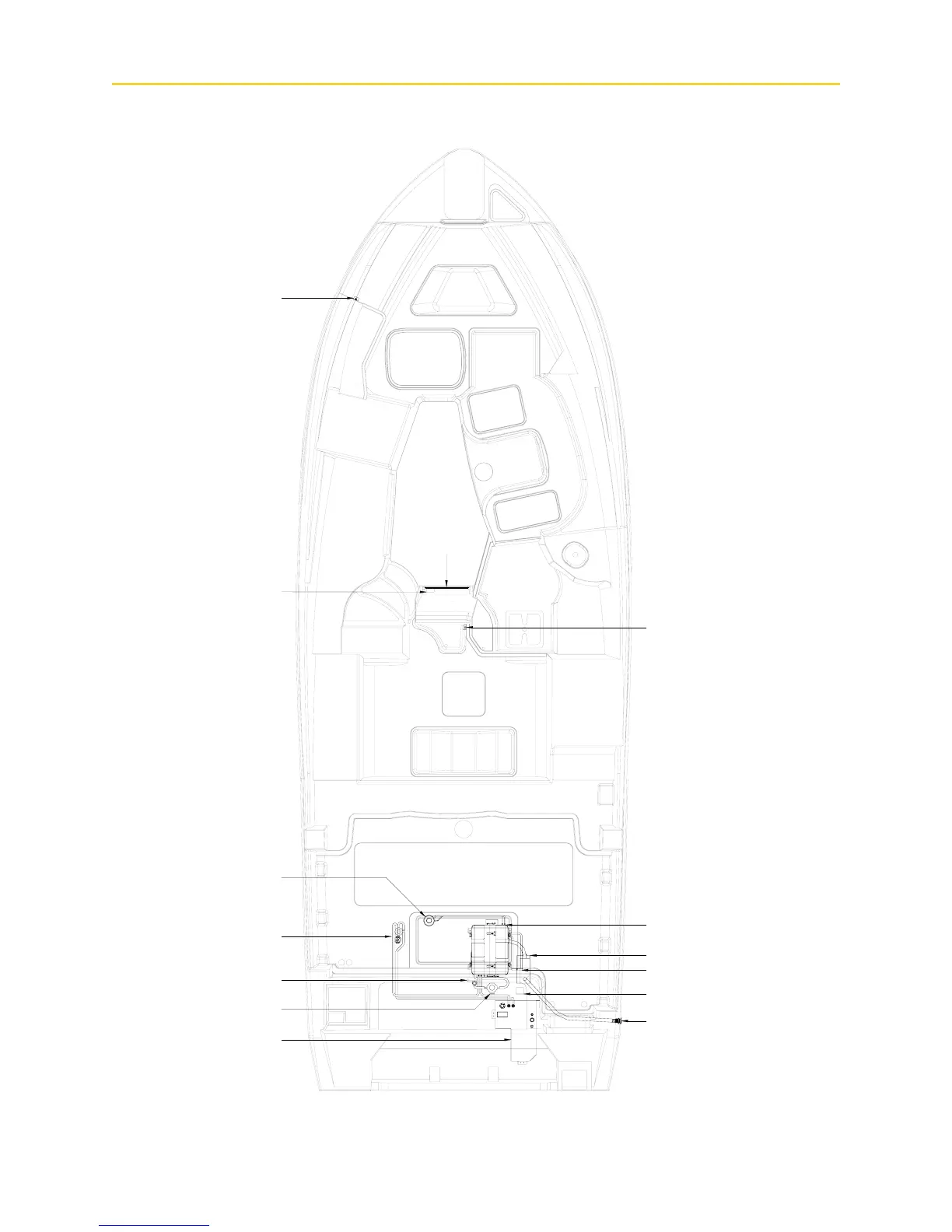

Generator Layout
OUT
IN
AC/DC Panel
Generator Control Panel
Diesel Fuel Filter &
Fuel Pump (mounted
in-line vertically)
Coolant Reservoir
Generator Seacock
Intake Water Strainer
25 Gallon
Diesel Fuel Tank
Exhaust Thru Hull
70A DPDT Breaker
(Power Supply to AC/DC Panel)
Siphon Break
Exhaust Muffler
Fischer Panda
8 Mini Generator
Forward CO Monitor
Aft CO Monitor
All aft generator components
are accessed by raising the
aft generator rigging lid.
