360 EXPRESS
8–62

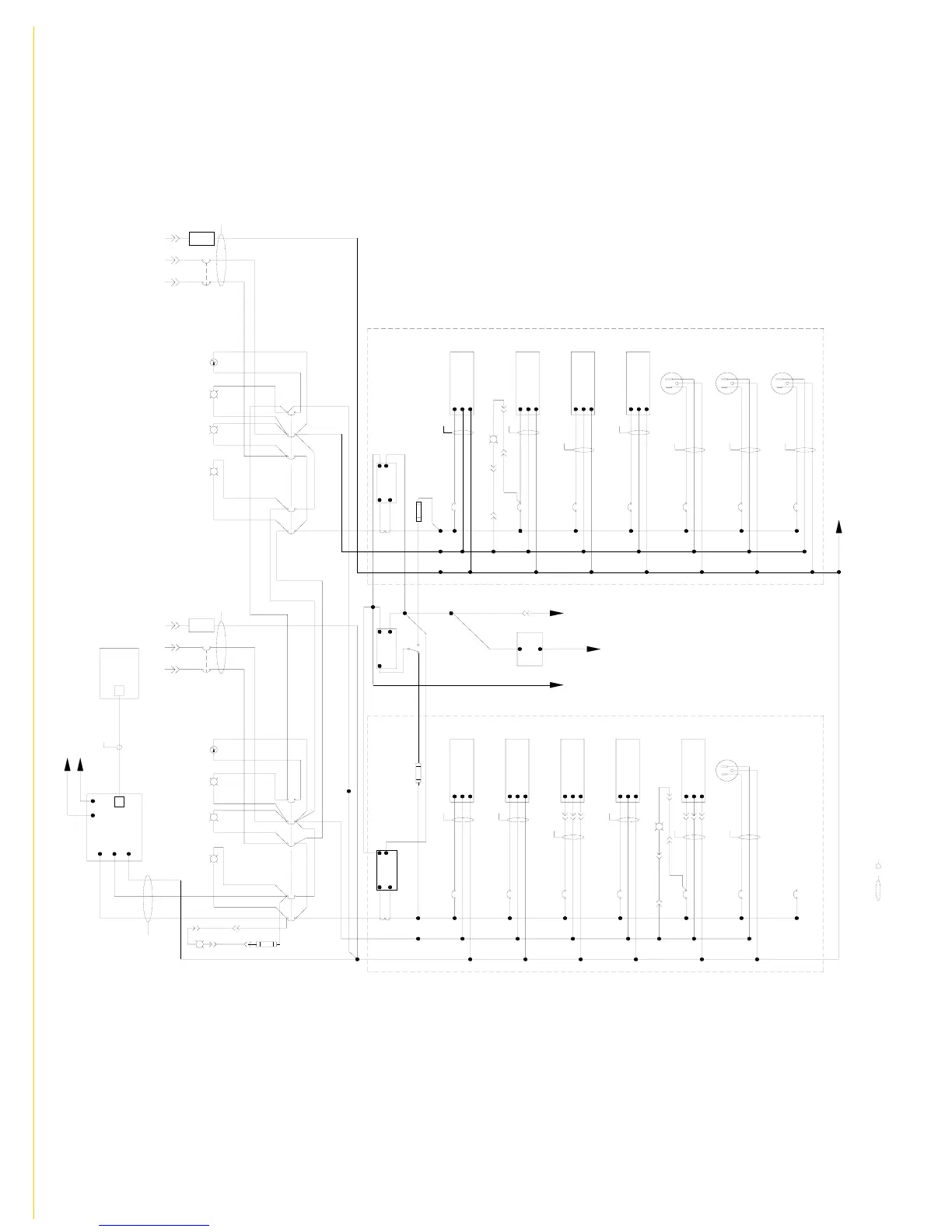

120 Volt AC Electrical Diagram
L 1
N
GND
DB
DATA CABLE
DB
L1
N
3C 6 GA
BK
W
GN
X
(SEE NOTE 1)
NOTES:
1) "X" INDICATES A MECHANICAL INTERLOCK TO PREVENT
SIMULTANEOUS CLOSURE OF CIRCUIT BREAKERS.
2) & INDICATES MULTI-CONDUCTOR CABLE
3) "P1" & "P2" PLUG CONNECTIONS AT AC & DC ELECTRICAL PANEL.
GENERATOR
BREAKER
2P, 70A
SHORE
POWER 1
BREAKER
2P, 30A
1P, 65V
SHORE
POWER 1
ON LT.
GEN. ON LT. REVERSED
POLARITY
LT.
18 GA
18 GA
SHORE
POWER 1
BREAKER
2P, 30A
3C 10 GA
REVERSED
POLARITY
GAS TUBE
DEVICE
3C 10 GA
SHORE LINE 2
INLET 30A 125V
SHORE
POWER 2
BREAKER
2P, 30A
REVERSED
POLARITY
LT.
TREANSFER
LT.
SHORE
POWER 2
ON LT.
SHORE
POWER 2
BREAKER
2P, 30A
1P, 65V
(SEE NOTE 1)
TRANSFER
BREAKER
2P, 50A
X
BK
W
GN
GN
W
BK
GALVANIC
ISOLATOR
AC AMP
METER
BUS BUS
N - 8 GA W
BATTERY
CHARGER
L 1 - 8 GA BLK
10A (CB)
BATTERY
CHARGER
(SEE 360-DC-1-1
LINE 7)
3C 14 GA
BLK
10 GA GN
W
GN
GN
W
BLK
3C 16 GA
BOW THRUSTER
CHARGER
(SEE DWG 360-DC-1-2
LINE 20)
BOW THRUSTER
CHARGER
MICROWAVE
MICROWAVE
3C 14 GA
BLK
W
GN
RECPT & PLUG
AC GROUNDING BUS
AC NEUTRAL BUS
AC L 1 BUS
STOVE
STOVE
3C 10 GA
BLK
W
GN
RECPT & PLUG
GN
W
BLK
3C 14 GA
REFRIGERATOR
REFRIGERATOR
GALLEY
OUTLET
GFCI GALLEY
OUTLET
3C 14 GA
BLK
W
GN
ACCESSORY
LOAD GROUP 1
N - 8 GA W L 1 - 8 GA BLK
18 GA
18 GA
18 GA
18 GA
18 GA
18 GA
18 GA
18 GA
18 GA
18 GA
LOAD GROUP 2
GN
W
BLK
3C 14 GA
GFCI HEAD
OUTLET
HEAD
OUTLET
GN
W
BLK
3C 14 GA
WATER
HEATER
WATER
HEATER
AC L 1 BUS
AC NEUTRAL BUS
AC GROUNDING BUS
GN
W
BLK
3C 10 GA
AIR COND
(SEE DWG
360-Air Cond-1 LINE 7)
AIR COND
COCKPIT
COOLERS
COCKPIT COOLERS
(SEE DWG
360-Air Cond-1 LINE 3)
3C 14 GA
BLK
W
GN
GN
W
10 GA GN
BLK
3C 14 GA
AIR/COOLER PUMP
(SEE DWG
360-Air Cond-1 LINE 1)
AIR/COOLER
PUMP
N - 8 GA W
AC AMP
METER
L 1 - 8 GA BLK
P1 - 5
16 GA BLK16 GA BLK
P1 - 2
16 GA W
16 GA W
P1 - 1
16 GA BLK 16 GA BLK
P1 - 6
CABIN
OUTLET
GFCI CABIN
OUTLET
3C 14 GA
BLK
W
GN
COCKPIT
OUTLET
GFCI COCKPIT
OUTLET
3C 14 GA
BLK
W
GN
AC VOLT
METER
TO DC
POSITIVE BUS
(SEE DWG
360-DC-1-1
LINE 10)
TO MAIN ACC.
DC NEG. BUS
(SEE DWG
360-DC-1-3
LINE 44)
SEE DWG
360-DC-1-3
LINE 45
FISCHER PANDA
8 MINI
GENERATOR
(7.5KW - SEE
GEN. OWNER'S
MANUAL)
GENERATOR
REMOTE
CONTROL
(SEE GEN.
OWNER'S
MANUAL)
BUS BUS
(-)
(+)
SEE DWG
360-DC-1-1
LINE 8
20 GA GRY 20 GA YEL
16 GA BLK 20 GA BLK
20 GA R
20 GA GRY
16 GA BLK
20 GA BLK 20 GA R
20 GA R
20 GA BLK
20 GA Y
20 GA R
16 GA BLK/Y
P2 - 5
VOLTAGE
SUPPRESSOR
(-) (+)
16 GA BLK
SEE DWG
360-DC-2-1
LINE 2
P1 - 3
16 GA BLK 16 GA BLK
6 GA GN
8 GA GN
8 GA GN
8 GA GN
GROUNDING STUD
SHORE LINE 1
INLET 30A 125V
GEN. IND. LT.
AT HELM
REF. IND. LT.
AT HELM
COOLERS IND.
LT. AT HELM
16 GA R
RGG
G
G GR
G
G
FU
3A
4 GA BLK 4 GA R
GALVANIC
ISOLATOR
8 GA GN 8 GA GN
20 GA YEL 20 GA GRY
5A (CB)
15A (CB) 25A (CB) 10A (CB) 15A (CB) 10A (CB) 15A (CB)
15A (CB) 15A (CB) 15A (CB) 30A (CB) 15A (CB)
5A (CB)
FU
1A 1A
FU
P15 - 1
P15 - 6
REVERSED
POLARITY
GAS TUBE
DEVICE
P15 - 5
P15 - 2
P15 - 4
16 GA W
P1 - 4
P15 - 3
360-AC-1
