Operation
29
dist row Row distance: distance
to the next row
Cross shingling
X start
(X0)
Moves the initial
placing point in X-
direction
Stacking, long shingling, cross shingling
Y start
(Y0)
Moves the initial
placing point in Y-
direction
Stacking, long shingling, cross shingling
heigt max Maximum stacking
height
Only in stacking mode
Slices/row Slices per row or fan Not in stacking mode
General
Pause If the “continuous“ function has
been activated in the counting
mode, you can set an idle time here.
The idle time is the time during
which the machine stops before
slicing and placing the next layer.
Reset Use this function to reset all
parameters for individual functions
to the default settings.

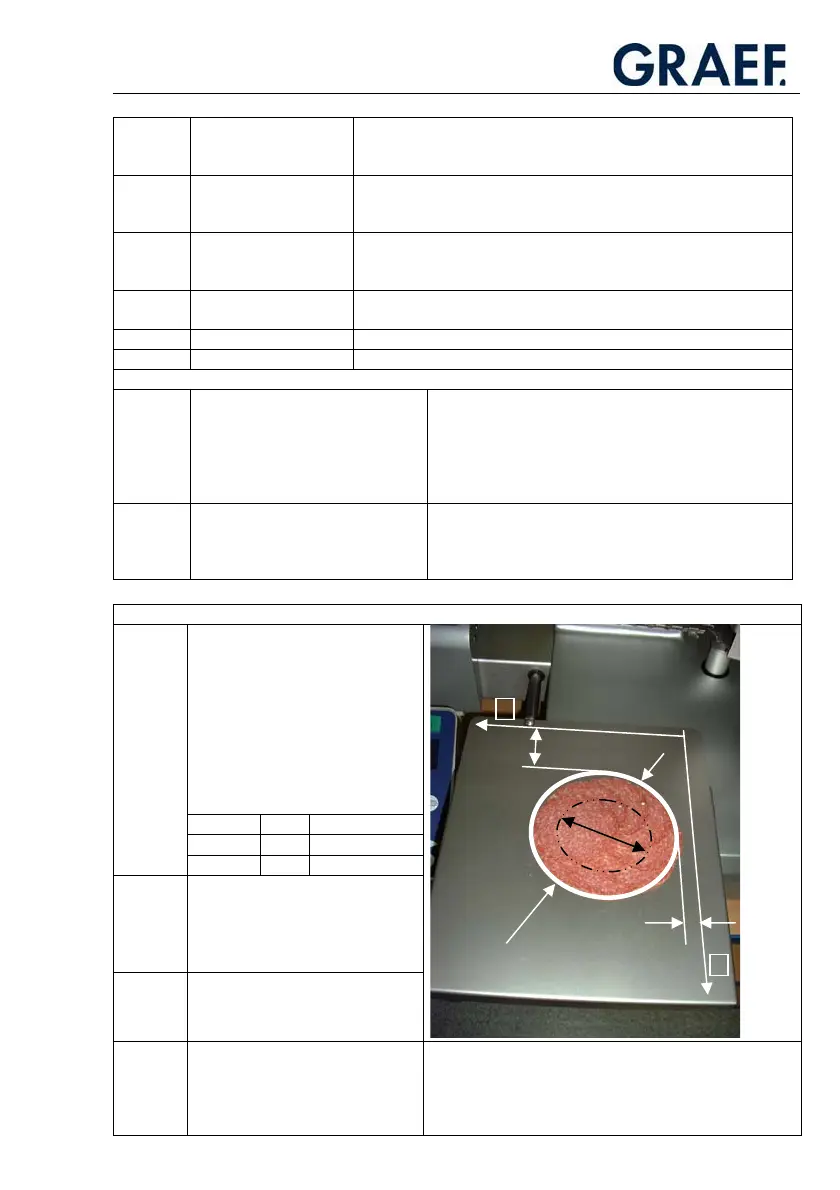

Special circular fanning features
Diameter of the circle through the
central points of the slices (partial
diameter)
Note:
The outer diameter of the “DA”
circular fan is the result of the
cutting material calibre DK + DM
Example:
Salami DK = Ø 60
Set semi-circle DM = 100
DK 60
DM + 100
Dia circle
(DM)
DA = 160
X start
(X0)
Smallest distance of the y axis to
the slice circle = start position in X
Y start
(Y0)
Smallest distance of the x axis to
the slice circle = start position in Y
Round Select option “0”
or “1” “0=oval or circle”
or “1= circle”
In option “0” it is also possible to create oval shapes by
changing the length and width in the placing format menu.
Option “1” always has the placing format of a geometrical
circle.
DM
Y start
X start
Y
X
DA
