Operation
15
3. Operation

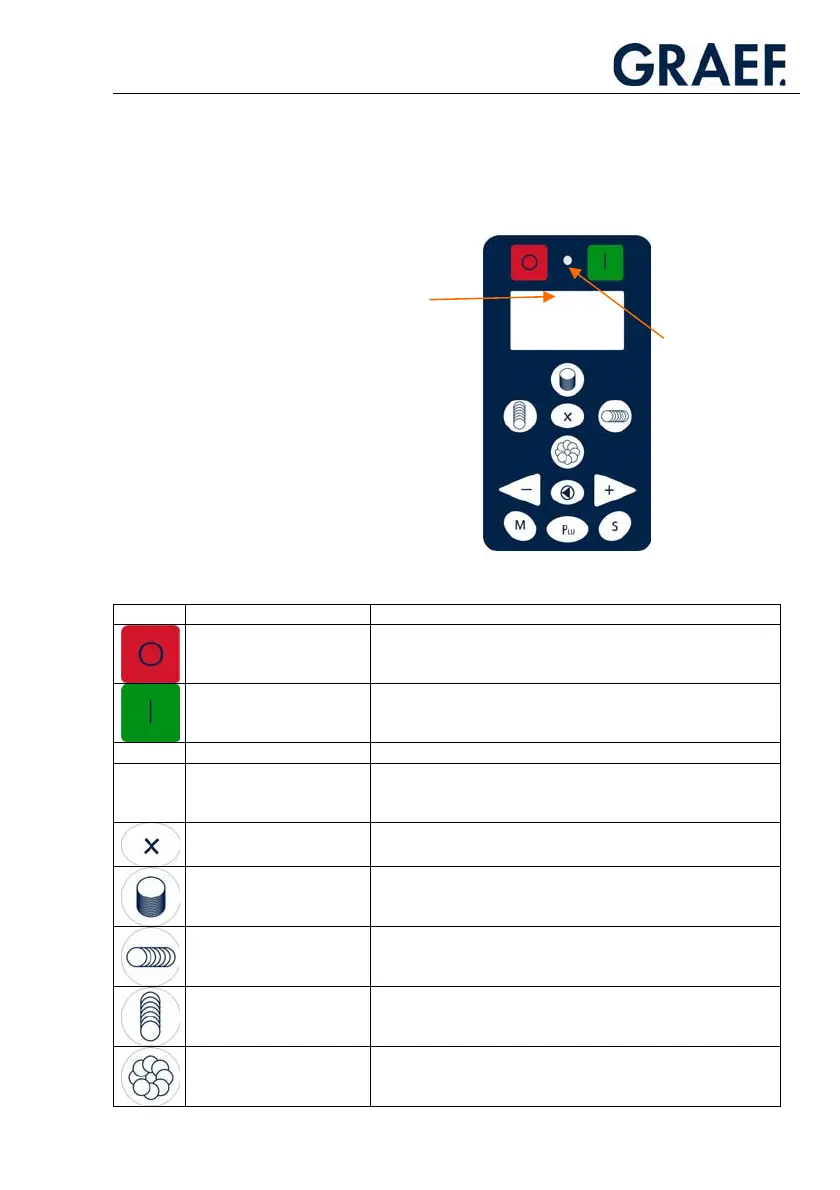

3.1. Operating Controls
3.1.1. Operating Terminal
Symbol Designation Function
Main “OFF“ switch
x Switches off the machine
Main “ON” switch
x Switches on the machine. The machine is ready for slicing.
Signal lamp
x Shows that the machine is ready for operation
Graphical display
(only display!)
x Indicates number of slices, cutting programme, PLU, slice
thickness, menu programme (PLU programming, maintenance
intervals etc.)
X button
x Generates 2, 3 or 4 stacks or rows
Stacking button
x Selects the stacking stack function
x Stores the set data (tray dimension, number of slices, cutting
mode, ...) when pressed until a beep is emitted
Cross shingling button
x Selects the cross fanning function
x Stores the set data (tray dimension, number of slices, cutting
mode, ...) when pressed until a beep is emitted
Long shingling button
x Selects the long fanning function (press 1x briefly)
x Stores the set data (number of slices, slicing mode, ...) when
pressed until a beep is emitted
Circular shingling button
x Selects the circular fanning function
x Stores the set data (number of slices, slicing mode, ...) when
pressed until a beep is emitted
Signal lamp
Display
(graphical display)
