4.2.3. Chain Frame

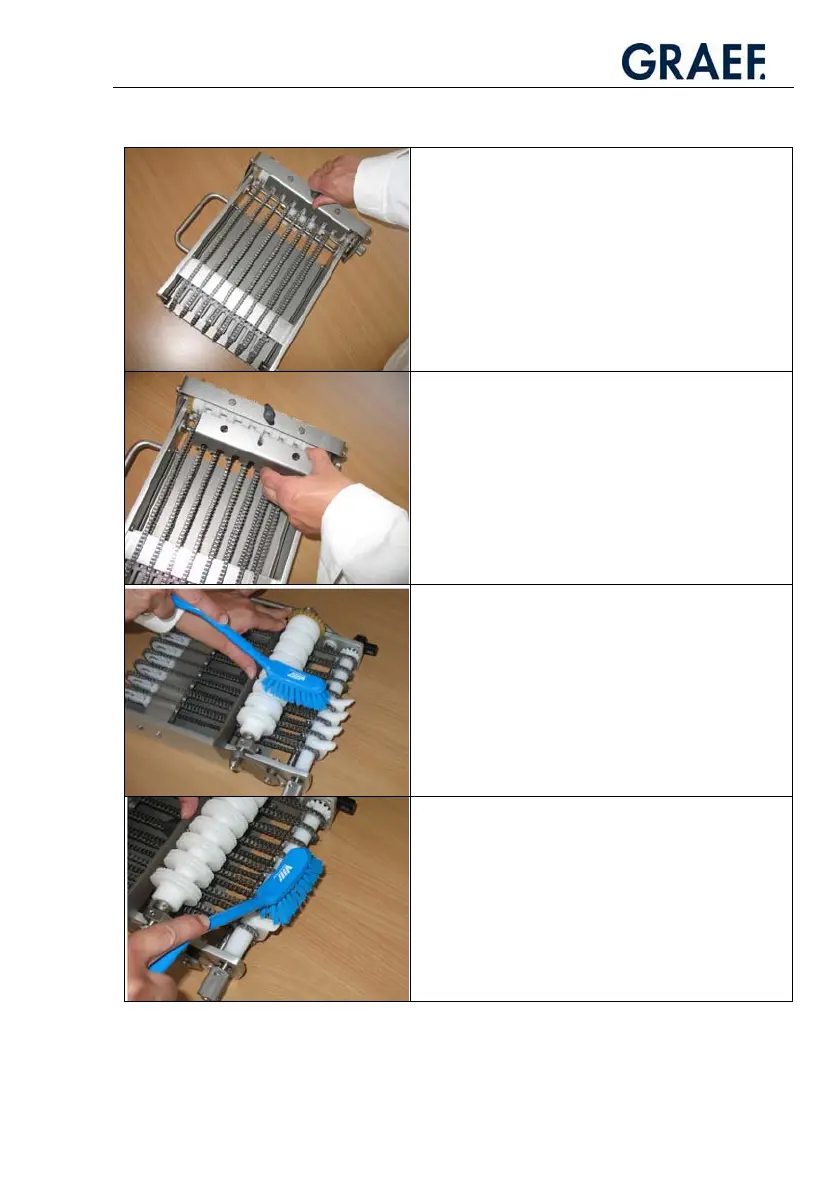

x Place the chain frame on its back on the table.
x Remove the wing bolt.
x Gently swing the guide comb out and place it on the
side.
x Swing the pressing roller to the side as shown on the
picture.
x Use a brush and cleaning liquid to clean the pressing
roller.
x Turn the pressing roller and fix it again by the gear
wheel so that you can clean the whole roller.
x Use the same procedure on the chain drive cylinder.
x Carefully clean the scraper fingers while the pressing
roller is swung away.
