Grandstream Networks GRP26 Series Administration Guide

Figure 10: Action URL – Add Destination
The following table describes each option in the above interface.

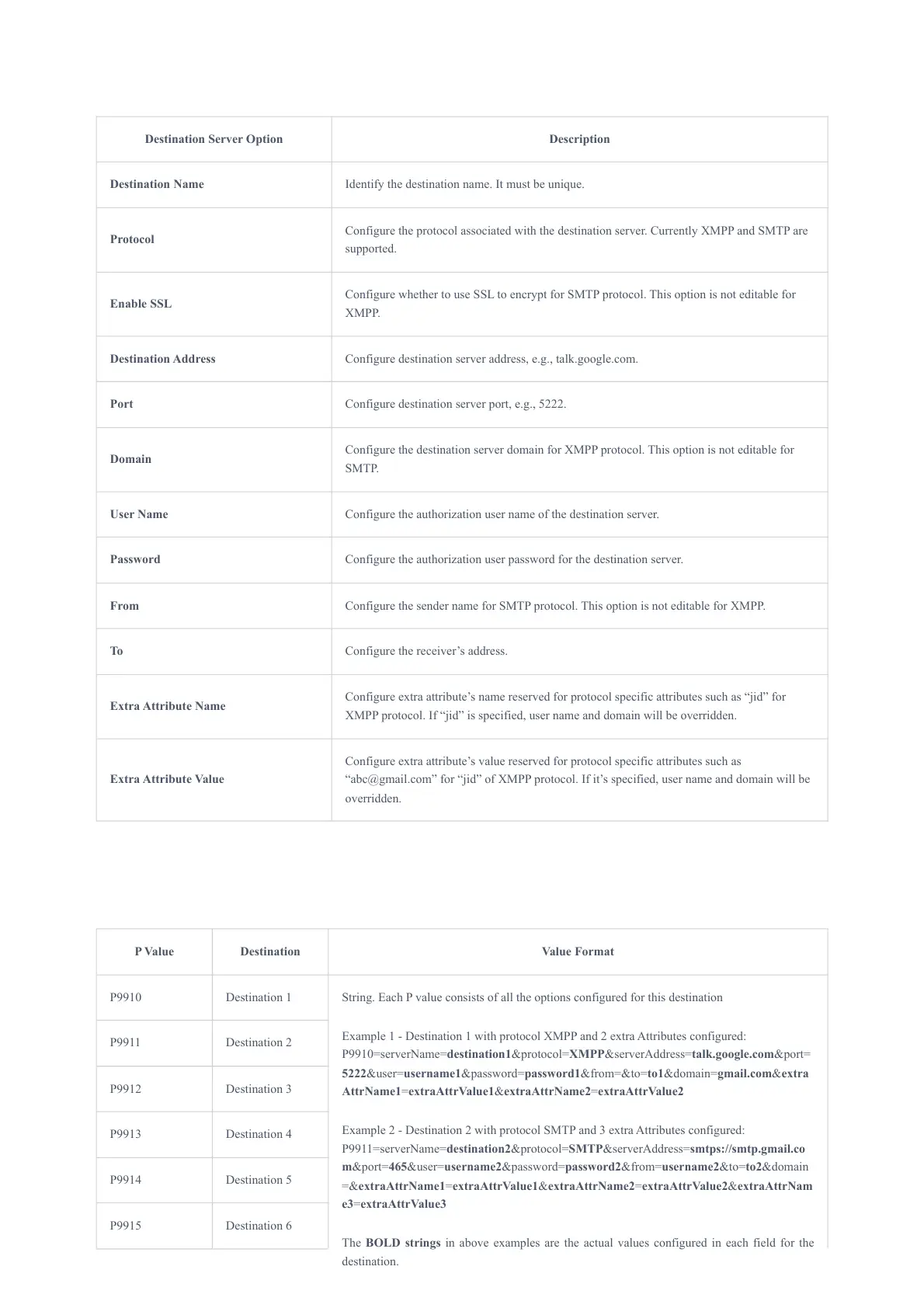

Table 25: Action URL – Add Destination Settings
Up to 10 destinations can be configured here. The P-values are listed in the below table.
Destination Server Option Description
Destination Name Identify the destination name. It must be unique.
Protocol
Configure the protocol associated with the destination server. Currently XMPP and SMTP are
supported.
Enable SSL
Configure whether to use SSL to encrypt for SMTP protocol. This option is not editable for
XMPP.
Destination Address Configure destination server address, e.g., talk.google.com.
Port Configure destination server port, e.g., 5222.
Domain
Configure the destination server domain for XMPP protocol. This option is not editable for
SMTP.
User Name Configure the authorization user name of the destination server.
Password Configure the authorization user password for the destination server.
From Configure the sender name for SMTP protocol. This option is not editable for XMPP.
To Configure the receiver’s address.
Extra Attribute Name
Configure extra attribute’s name reserved for protocol specific attributes such as “jid” for
XMPP protocol. If “jid” is specified, user name and domain will be overridden.
Extra Attribute Value
Configure extra attribute’s value reserved for protocol specific attributes such as
“abc@gmail.com” for “jid” of XMPP protocol. If it’s specified, user name and domain will be
overridden.
P Value Destination Value Format
P9910 Destination 1 String. Each P value consists of all the options configured for this destination
Example 1 - Destination 1 with protocol XMPP and 2 extra Attributes configured:
P9910=serverName=destination1&protocol=XMPP&serverAddress=talk.google.com&port=
5222&user=username1&password=password1&from=&to=to1&domain=gmail.com&extra
AttrName1=extraAttrValue1&extraAttrName2=extraAttrValue2
Example 2 - Destination 2 with protocol SMTP and 3 extra Attributes configured:
P9911=serverName=destination2&protocol=SMTP&serverAddress=smtps://smtp.gmail.co
m&port=465&user=username2&password=password2&from=username2&to=to2&domain
=&extraAttrName1=extraAttrValue1&extraAttrName2=extraAttrValue2&extraAttrNam
e3=extraAttrValue3
The BOLD strings in above examples are the actual values configured in each field for the
destination.
P9911 Destination 2
P9912 Destination 3
P9913 Destination 4
P9914 Destination 5
P9915 Destination 6
