FIRMWARE VERSION 1.0.7.4 GXP1160/GXP1165 USER MANUAL Page 14 of 67
To set up the GXP1160/GXP1165, follow the steps below:
1. Attach the phone stand to the back of the phone where they are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used on GXP1165 in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded web server (Web GUI) by entering the IP
address in web browser, you can further configure the phone.
Please see below the pin-out information for GXP1160/GXP1165.

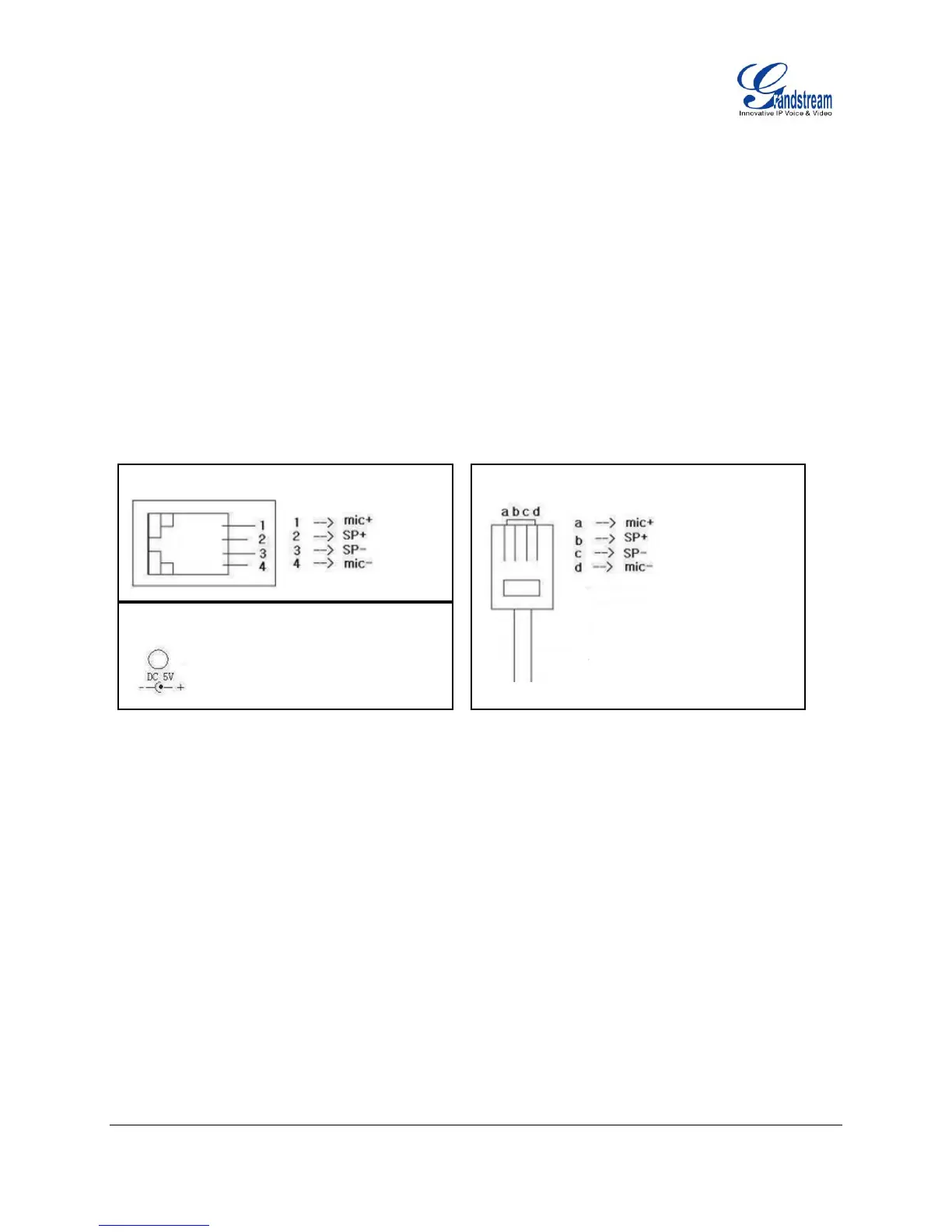

Figure 2: GXP1160/GXP1165 Pin-out
SAFETY COMPLIANCES
The GXP1160/GXP1165 phone complies with FCC/CE and various safety standards. The
GXP1160/GXP1165 power adapter is compliant with the UL standard. Use the universal power adapter
provided with the GXP1160/GXP1165 package only. The manufacturer’s warranty does not cover
damages to the phone caused by unsupported power adapters.
WARRANTY
If the GXP1160/GXP1165 phone was purchased from a reseller, please contact the company where the
phone was purchased for replacement, repair or refund. If the phone was purchased directly from
Grandstream, contact the Grandstream Support for a RMA (Return Materials Authorization) number before
the product is returned. Grandstream reserves the right to remedy warranty policy without prior notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may damage
the phone. This type of damage is not covered under warranty.
