Grandstream Networks GXV34 0 Series Administration Guide

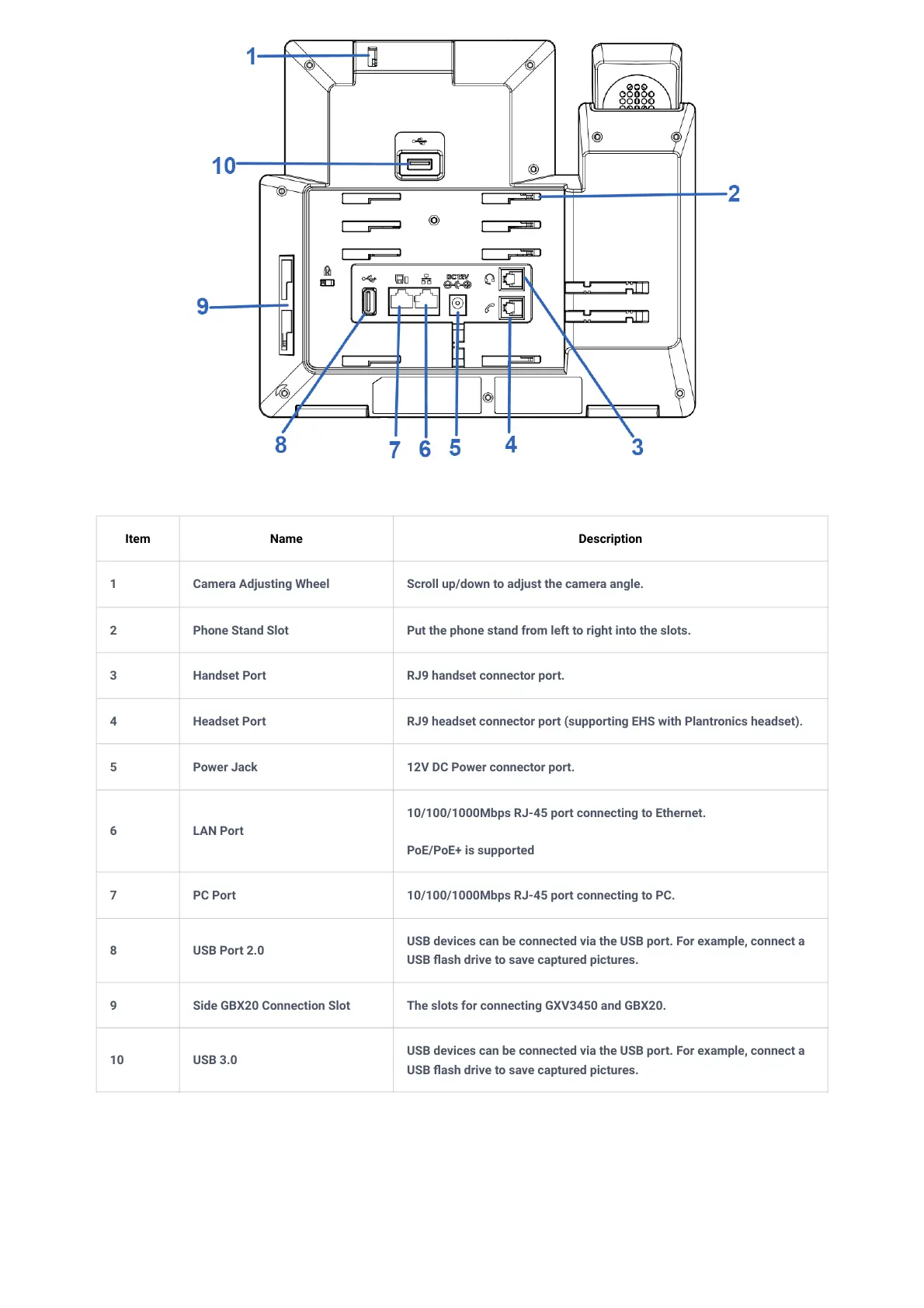

Figure 12: GXV3450 Back View
Table 15: GXV3450 Back View
Connecting and Setting Up the GXV34x0
The GXV34x0 can be installed on the desktop using the built-in stand or attached on the wall using the slots for wall
mounting.
Item Name Description
1 Camera Adjusting Wheel Scroll up/down to adjust the camera angle.
2 Phone Stand Slot Put the phone stand from left to right into the slots.
3 Handset Port RJ9 handset connector port.
4 Headset Port RJ9 headset connector port (supporting EHS with Plantronics headset).
5 Power Jack 12V DC Power connector port.
6 LAN Port
10/100/1000Mbps RJ-45 port connecting to Ethernet.
PoE/PoE+ is supported
7 PC Port 10/100/1000Mbps RJ-45 port connecting to PC.
8 USB Port 2.0
USB devices can be connected via the USB port. For example, connect a
USB flash drive to save captured pictures.
9 Side GBX20 Connection Slot The slots for connecting GXV3450 and GBX20.
10 USB 3.0
USB devices can be connected via the USB port. For example, connect a
USB flash drive to save captured pictures.
