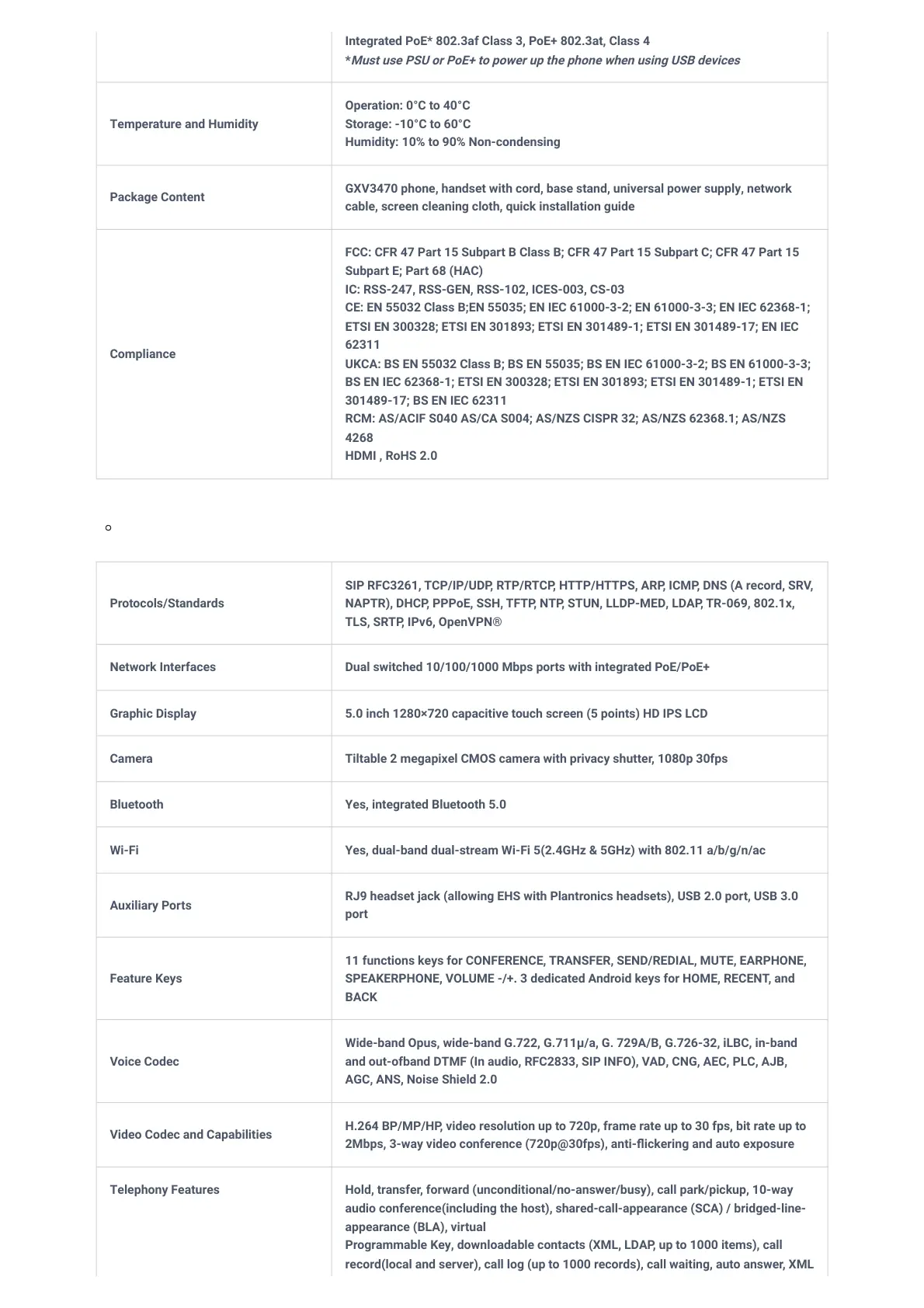

Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*
Must use PSU or PoE+ to power up the phone when using USB devices
Temperature and Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Package Content
GXV3470 phone, handset with cord, base stand, universal power supply, network
cable, screen cleaning cloth, quick installation guide
Compliance
FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15
Subpart E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032 Class B;EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC
62311
UKCA: BS EN 55032 Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3;
BS EN IEC 62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN
301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS
4268
HDMI , RoHS 2.0
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x,
TLS, SRTP, IPv6, OpenVPN®
Network Interfaces Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+
Graphic Display 5.0 inch 1280×720 capacitive touch screen (5 points) HD IPS LCD
Camera Tiltable 2 megapixel CMOS camera with privacy shutter, 1080p 30fps
Bluetooth Yes, integrated Bluetooth 5.0
Wi-Fi Yes, dual-band dual-stream Wi-Fi 5(2.4GHz & 5GHz) with 802.11 a/b/g/n/ac
Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets), USB 2.0 port, USB 3.0
port
Feature Keys
11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE,
SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, RECENT, and
BACK
Voice Codec
Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band
and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,
AGC, ANS, Noise Shield 2.0
Video Codec and Capabilities
H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to
2Mbps, 3-way video conference (720p@30fps), anti-flickering and auto exposure
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 10-way
audio conference(including the host), shared-call-appearance (SCA) / bridged-line-
appearance (BLA), virtual
Programmable Key, downloadable contacts (XML, LDAP, up to 1000 items), call
record(local and server), call log (up to 1000 records), call waiting, auto answer, XML
