6 DISASSEMBLY AND REASSEMBLY

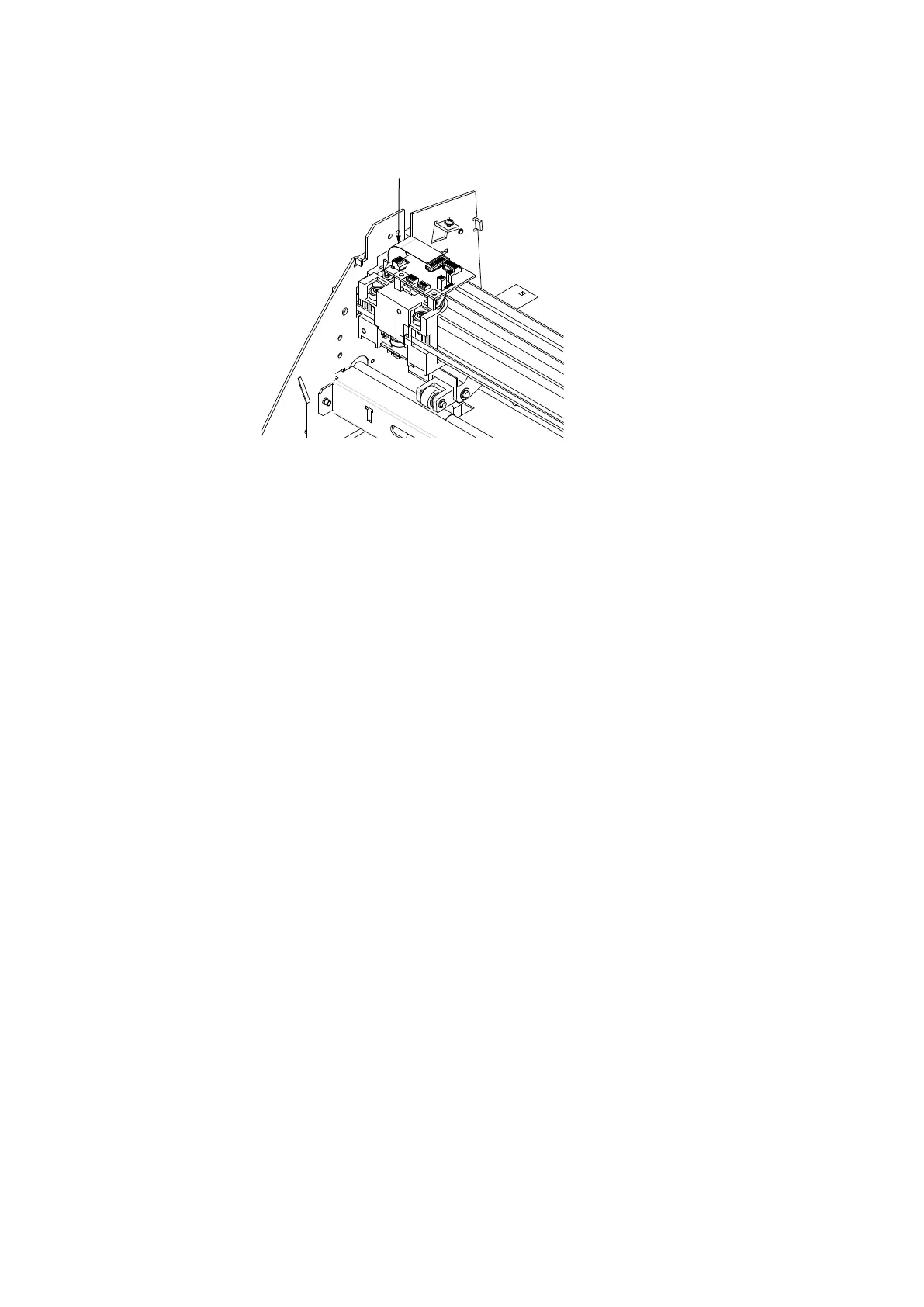

(6) FittheY-exiblecableintotheY-railasshownbelow.TheY-exiblecableshouldn’ttouchtheleftside
plate.Allowa3mmspacebetweentheleftendoftheY-exiblecableandtheleftsideplate.
Allow a 3-mm space between the left end
of the Y-flexible cable and the left side plate.
(7) SecuretheY-exiblecableontotheexiblecableguideoftheY-railusingdouble-sidedadhesivetape.
(8) Reattachtheotherpartsinthereverseorderinwhichtheyweredetached.
