CE6000-UM-251-9370 6-27
6 DISASSEMBLY AND REASSEMBLY

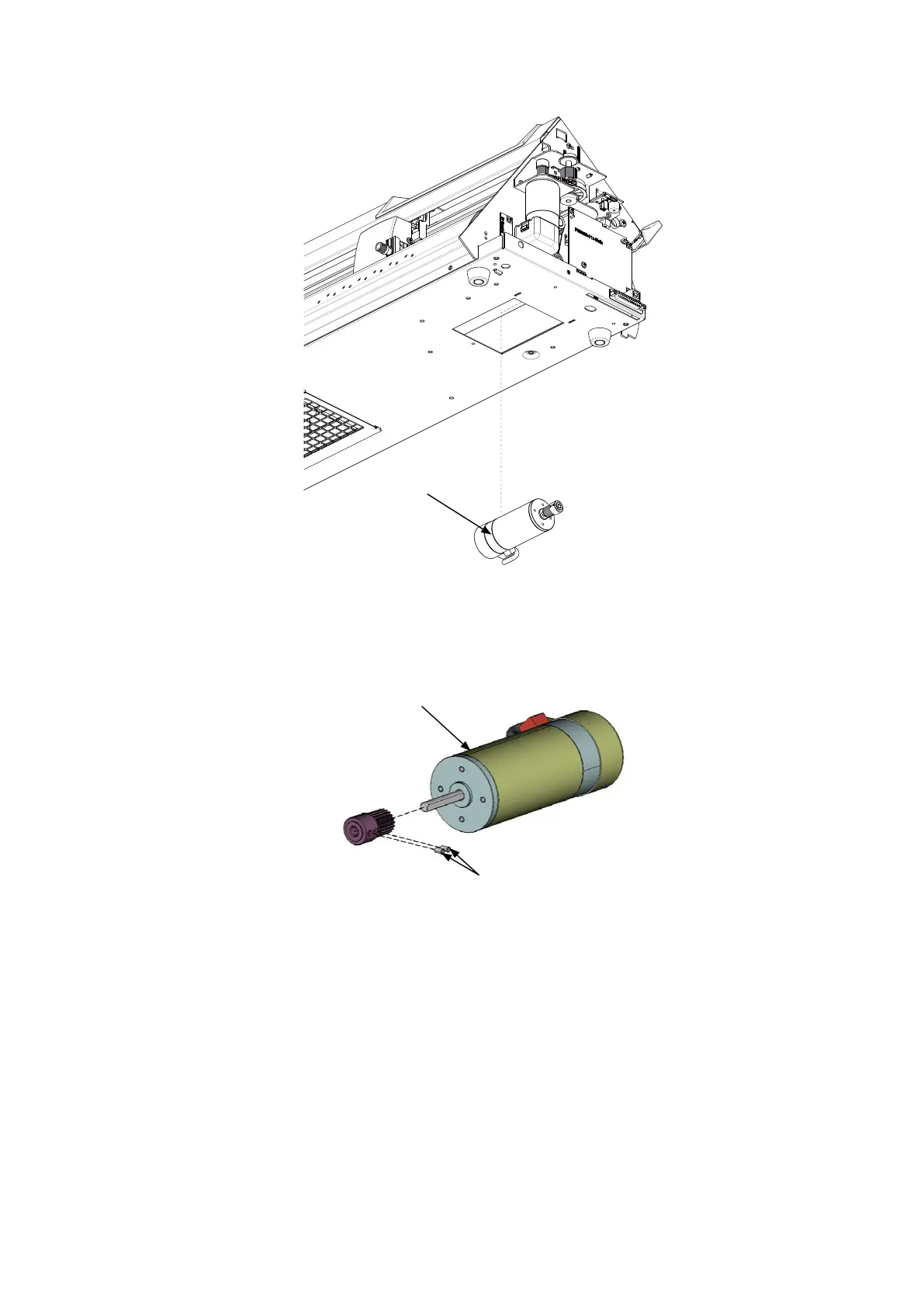

(5) Detach the X-motor.
X Motor
(6) Disconnect the X-motor relay cable from the X motor.
(7) Disconnect the X-Motor encoder cable from the X motor.
(8) Loosen the two M3L4WP set screws holding the X-motor pulley, and then detach the X-motor
pulley.
M3L4WP set screw
X motor
