FC4200-UM-251-03-9370 24
REPLACEMENT PROCEDURES

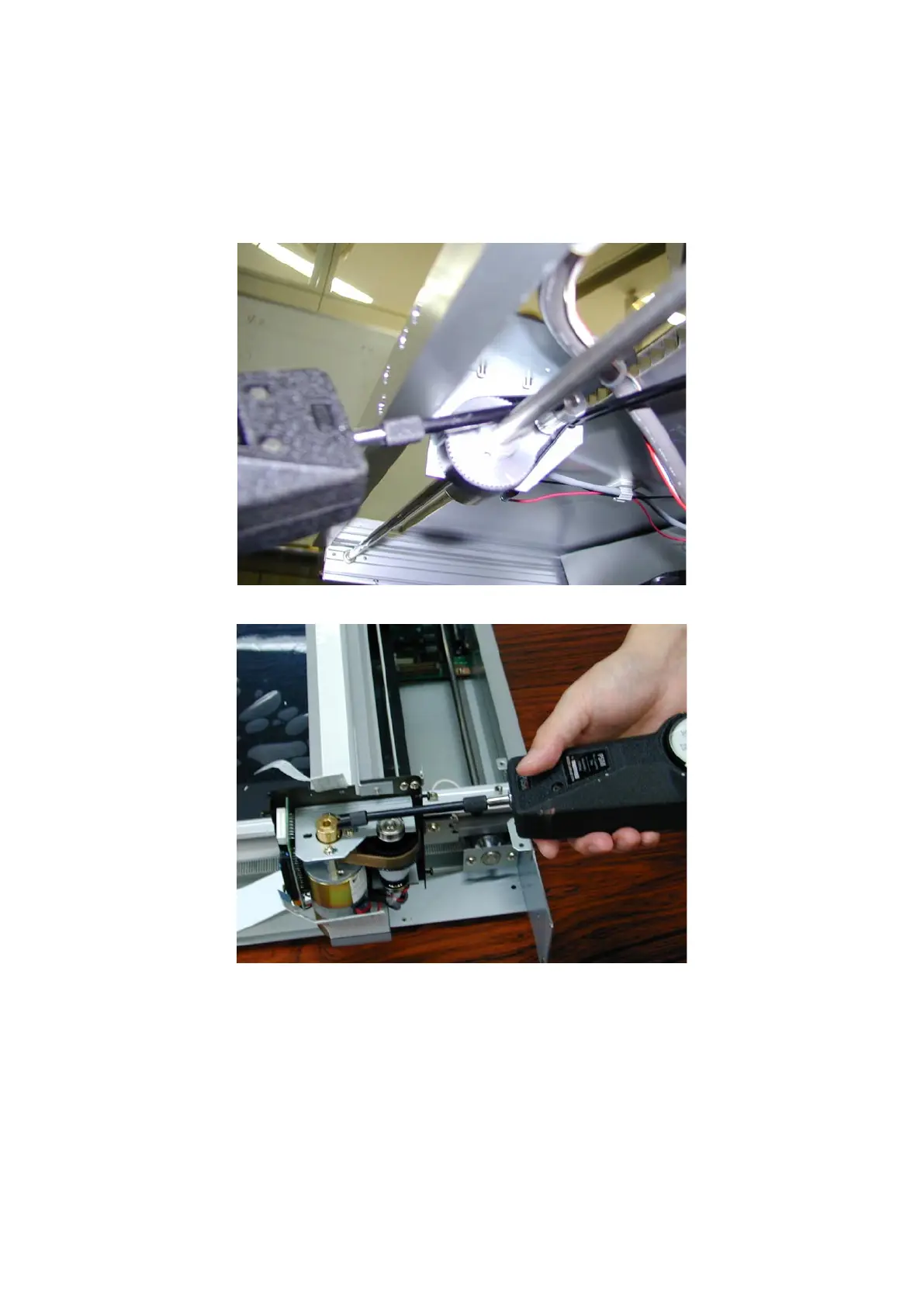

6.14 Adjusting the X and Y Motor Synchro Belt Tension
For both X and Y motors of the FC4200-50 / 60 and FC4210-60, adjust the synchro belt tension to 2.0 ± 0.2
kgf.
X motor
Y motor
