REPLACEMENT PROCEDURES
6.10 Changing Pen Blocks
Remove the Y Rail Cover.
Unfasten the two screws securing the Carriage Cover, and then remove the Carriage Cover.
FC4200-50 / FC4200-60

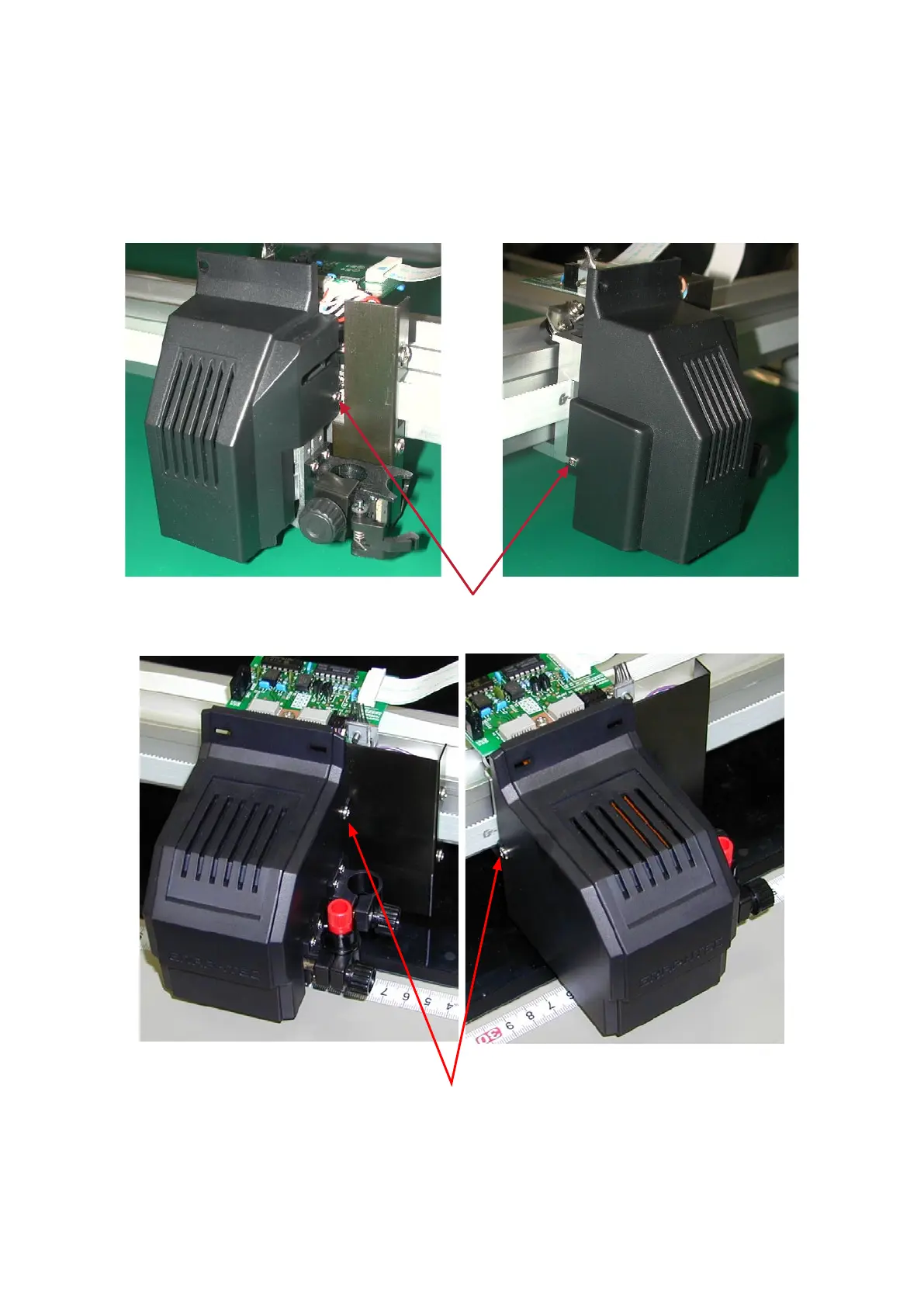

Unfasten the screws
FC4210-60
Unfasten the screws
